Mercury Economy CAT6 CCA UTP Cable - 808.025UK - 305m
88.00 €
Cat6 UTP data cable with CCA conductor, 305m length, indoor use, supplied in dispensing box and marked at 1 metre intervals.
Available in 2–3 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

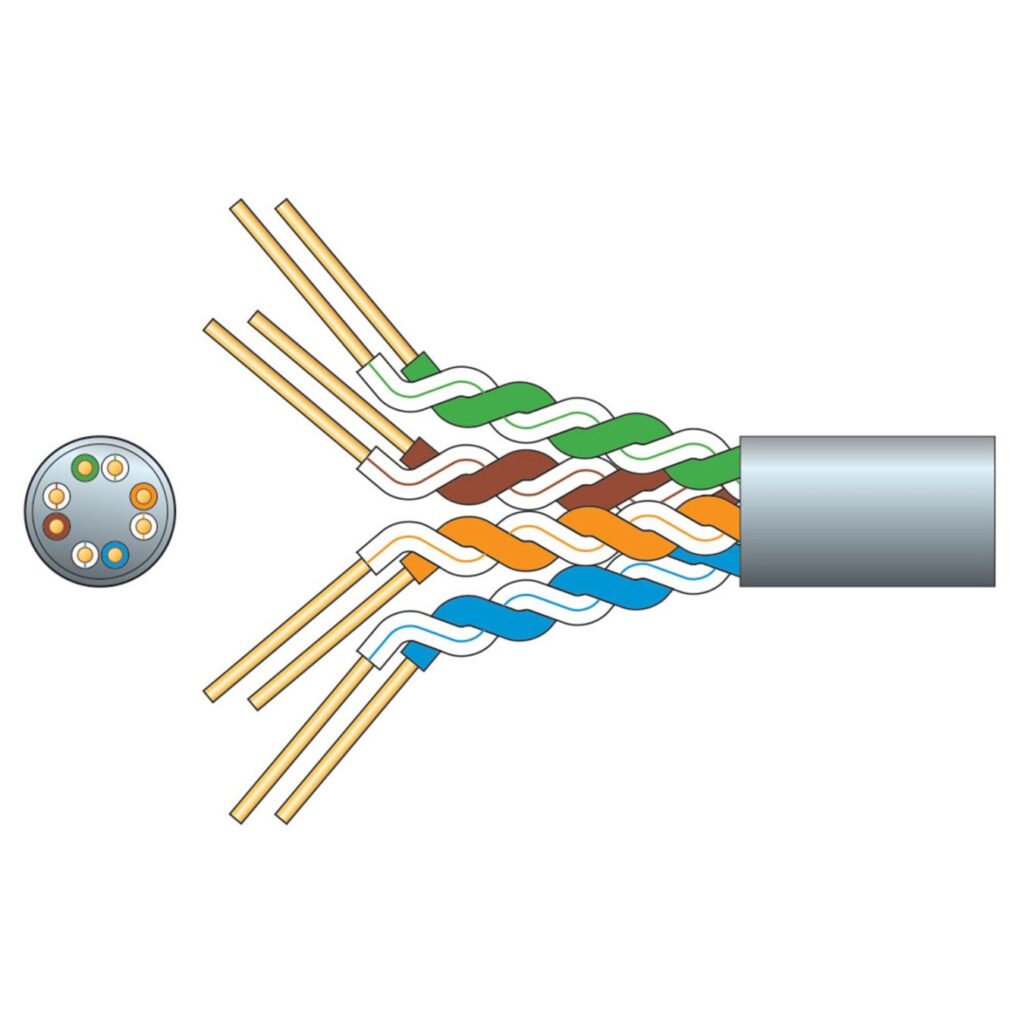

Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.
- Solid copper clad aluminium conductor

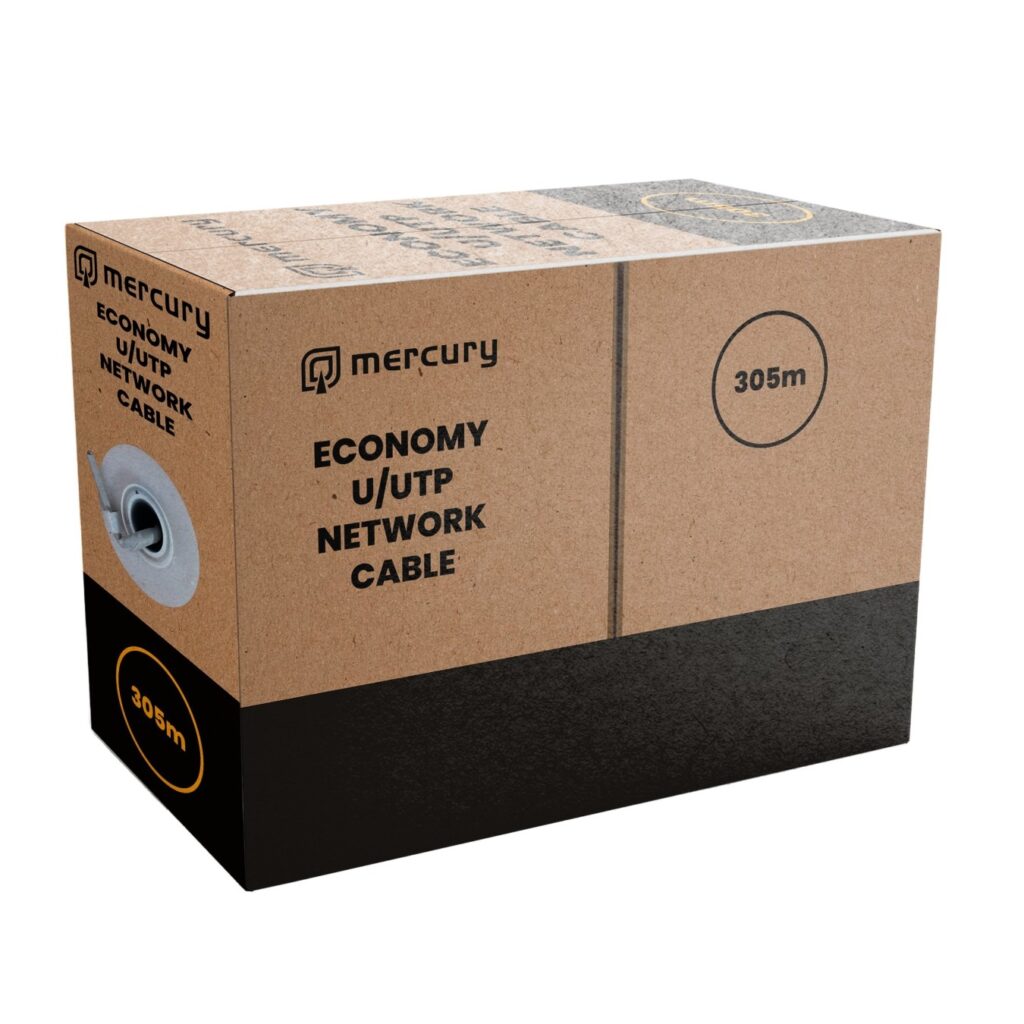

- Supplied in an easy-pull dispensing box
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Conductor Solid CCA
- Strands 8 x 1/0.57mmØ ±2%
- CSA 8 x 0.26mm²
- Cable : diameter 5.5mmØ
- Insulation HDPE 0.23mm thickness
- Sheath PVC 0.5mm thickness
- Impedance 100 Ohms (±15)
- DC resistance @ 20°C <35 Ohms/100mt
- Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
- NEXT >40dB @ 100m
- PSNEXT >38dB @ 100m
- Cable colour Grey
- Length 305m
- Weight 8.5kg
| Type | Cat6 |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Indoor |
| Length | 305m |
| Colour | Grey |
