Mercury CAT5e Outdoor Cable - 808.023UK - CCA UTP 305m
73.00 €
Outdoor Cat5e cable with CCA conductor, 305 m length. Not recommended for PoE installations.
Available in 2–3 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Important Note: CCA Cables are not recommended for POE installations

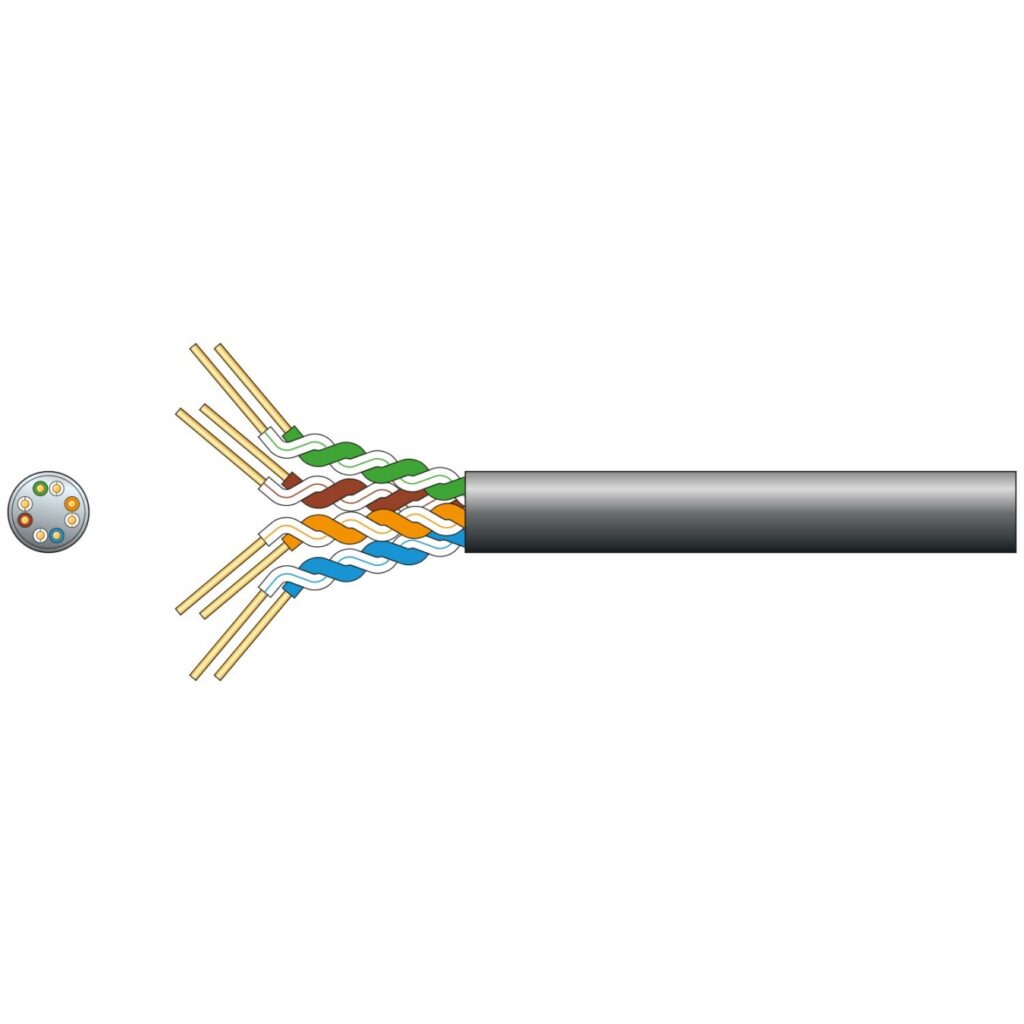

Solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet outdoor applications.
- Solid copper clad aluminium conductor

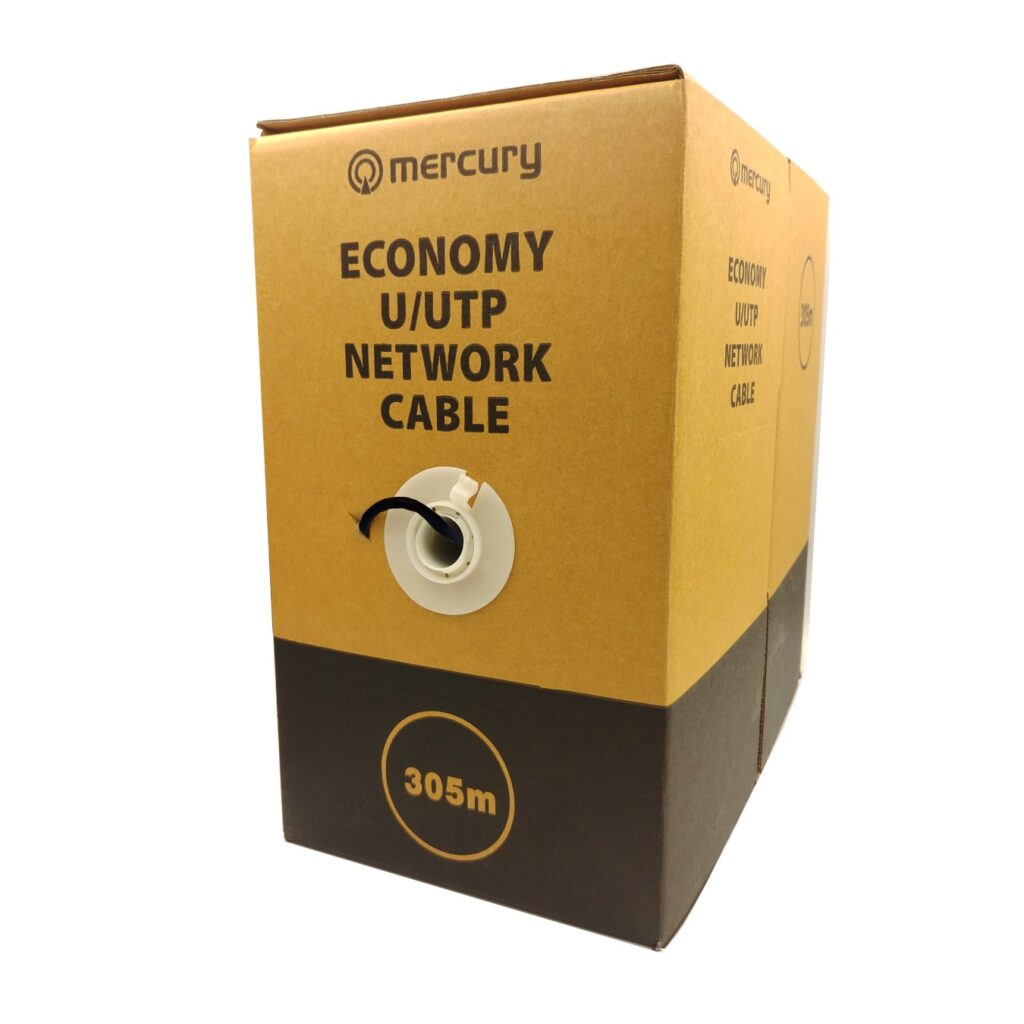

- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- PE sheath with UV resistant properties ideal for outdoor installation
- Conductor: Solid CCA
- Strand: 8 x 1/0.51mmØ ±2%
- CSA: 8 x 0.204mm²
- Cable diameter: 5mmØ
- Insulation: HDPE 0.19mm thickness
- Sheath: PE 0.5mm thickness
- Impedance: 100 Ohms (±15)
- DC resistance: @ 20°C
- Return loss: >20dB @ 100m
- NEXT: >40dB @ 100m
- PSNEXT: >38dB @ 100m
- Cable colour: Black
- Length: 305m
- Weight: 5.5kg
| Type | Cat5e |
| Cable Type | UTP |
| Conductor | CCA |
| Environment | Outdoor |
| Length | 305m |
| Colour | Black |
