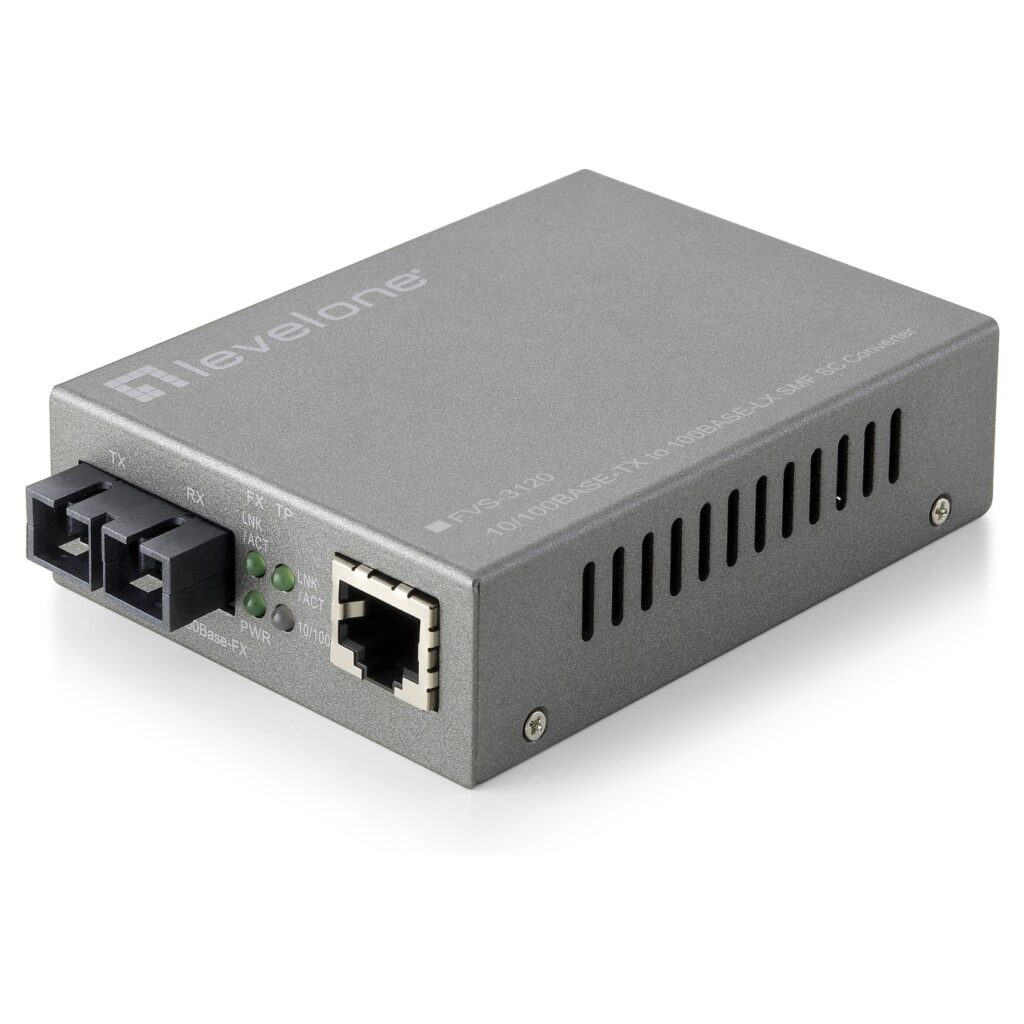

Konverter FVS-3120 10 100TX to 100LX SC SM
LevelOne FVS-3120. 100 Mbit/s. 10Base-T. 100Base-TX. 100Base-LX. IEEE 802.1Q. IEEE 802.3. IEEE 802.3ah. IEEE 802.3u. IEEE 802.3x. Schnelles Ethernet. 10.100 Mbit/s
Available in 6–10 business days : 16 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
LevelOne FVS-3120. Maximale Datenübertragungsrate: 100 Mbit/s. Converter Eingangsschnittstelle: 10Base-T. 100Base-TX. Converter output Oberfläche: 100Base-LX. Maximal mögliche Übertragungsstrecke: 20000 m. Kabel mode struktur: Einzelmodus. Unterstützte Faserkabeldurchmesser (Kern/Mantel): 3/125.8.7/125.9/125.10/125 µm. Produktfarbe: Grau. Optischer Kabelverbinder: SC. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 5 V. Eingangsstrom: 1 A. Stromverbrauch (Standardbetrieb): 1.5 W
| Maximale Datenübertragungsrate | 100 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T. 100Base-TX |
| Converter output Oberfläche | 100Base-LX |
| Netzstandard | IEEE 802.1Q. IEEE 802.3. IEEE 802.3ah. IEEE 802.3u. IEEE 802.3x |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Feature | Betriebsanleitung |
| Maximal mögliche Übertragungsstrecke | 20000 m |
| Kabel mode struktur | Einzelmodus |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 3/125.8.7/125.9/125.10/125 µm |
| Produktfarbe | Grau |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SC |
| Eingangsspannung | 5 V |
| Eingangsstrom | 1 A |
| Stromverbrauch (Standardbetrieb) | 1.5 W |
| Breite | 70.3 mm |
| Tiefe | 94 mm |
| Höhe | 26.2 mm |
| Betriebstemperatur | 0 - 50 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Verpackungsbreite | 160 mm |
| Verpackungstiefe | 220 mm |
| Verpackungshöhe | 60 mm |
| Paketgewicht | 460 g |
| Zertifizierung | FCC Part 15 Class A. CE |
| Ursprungsland | Taiwan |
