Keystone Module - Cat. 8.1 - Shielded - 4 pieces
40.00 €

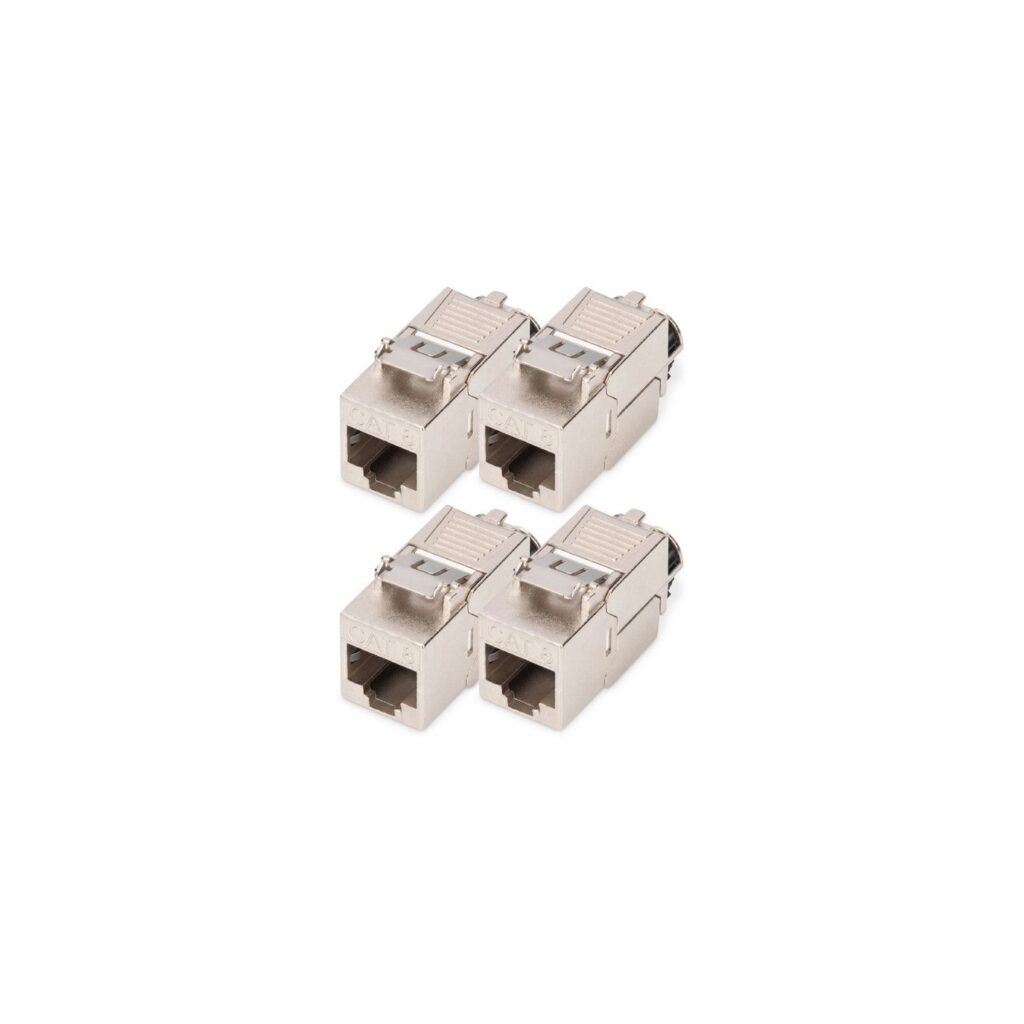

Shielded Cat. 8.1 Keystone module, 4-piece set for distribution panels and junction boxes.
Available in 6–10 business days : 20 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

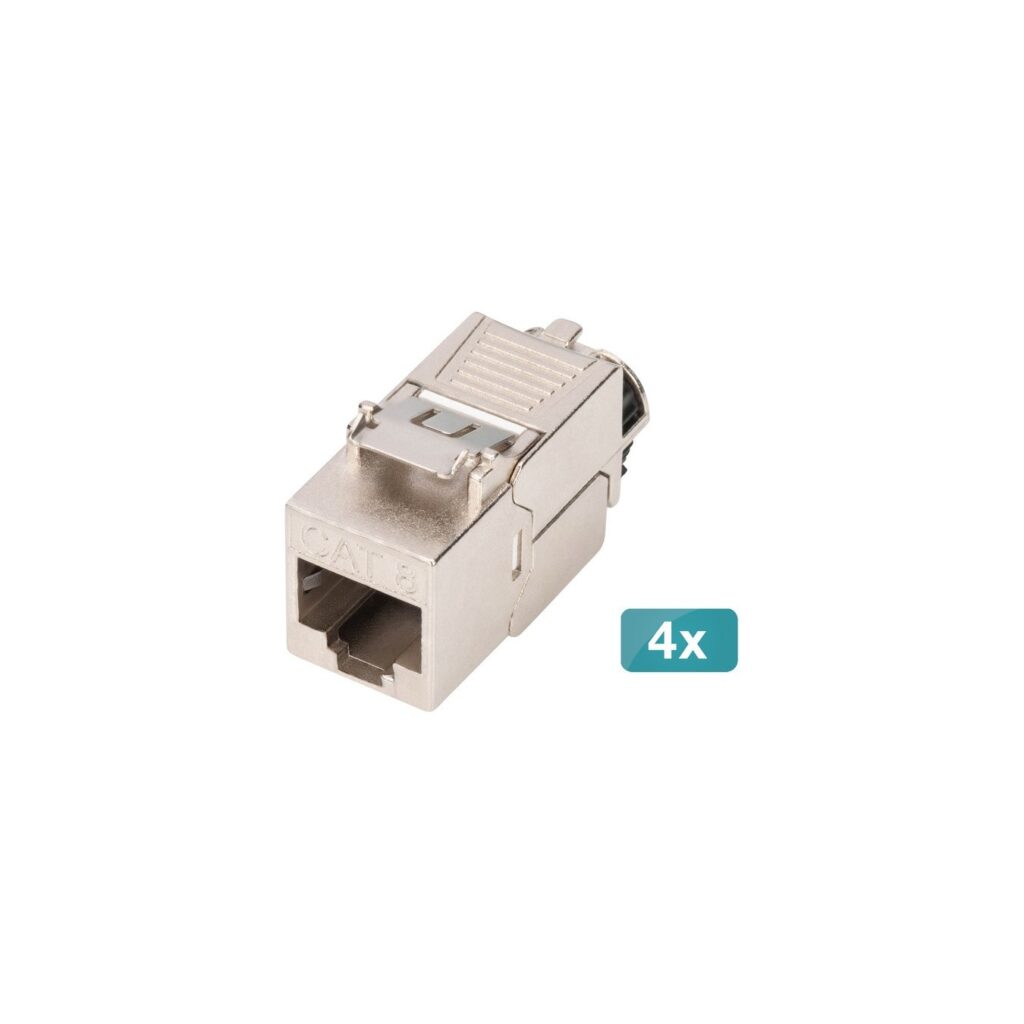

The Cat. 8.1 Keystone Module DN-93816 from DIGITUS is a shielded keystone module with a tool-free mounting connection that offers excellent performance and connection quality. The compact design allows a series installation of 24 pieces in a 483mm (19″) 1U panel. It offers 25 / 40GBase-T transmission speeds in permanent link up to 24 meters and channel link up to 30 meters. Especially for ToR and MoR cabling in data centers.
| Typ | Keystone-Modul |
| Color | silber |
| EAN | 4016032495192 |
| Manufacturer no. | DN-93816-4 |
| Manufactured in | China |
| Form | Keystone-Modul |
| Number | 4 pieces |
| Application example | For distribution panel and junction box assembly |
| Area | network |
| Connection - from | 1x RJ-45 (socket) |
| Category - Plugs | Cat.8.1 |
| Characteristics | Set |
| Feature | Tool-free mounting connection, cable installation via LSA strips, color coded according to EIA/TIA 568 A & B |
| More information | 360° shield contact, wire intake: 22-26 AWG solid and stranded conductors, suitable for IEEE 802.3 af/at/bt - PoE, PoE+ & 4PPoE (in permanent link), up to 2000 MHz, 25/40GBase-T |
| Dimensions | Width: 14.5mm x Height: 21mm x Depth/Length: 34.5mm |
| Weight | 22 Gramm |
