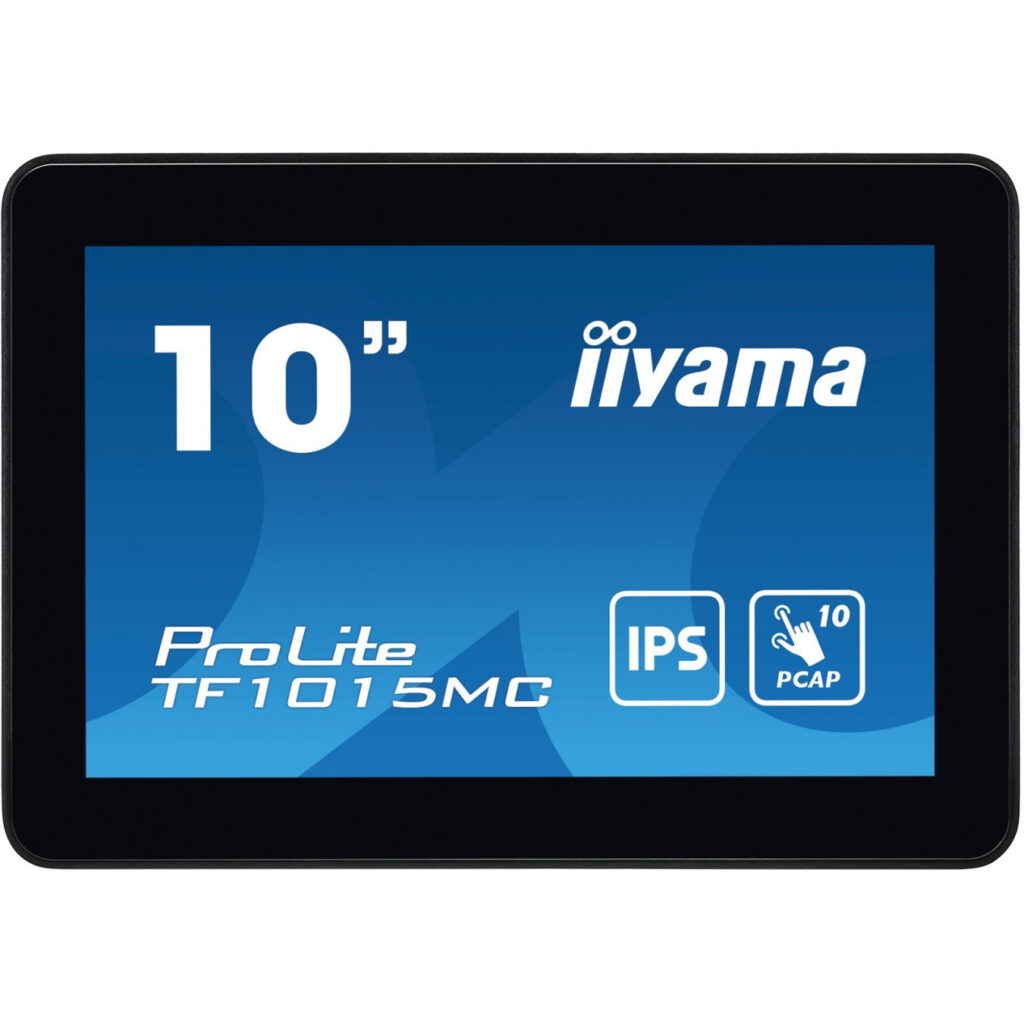

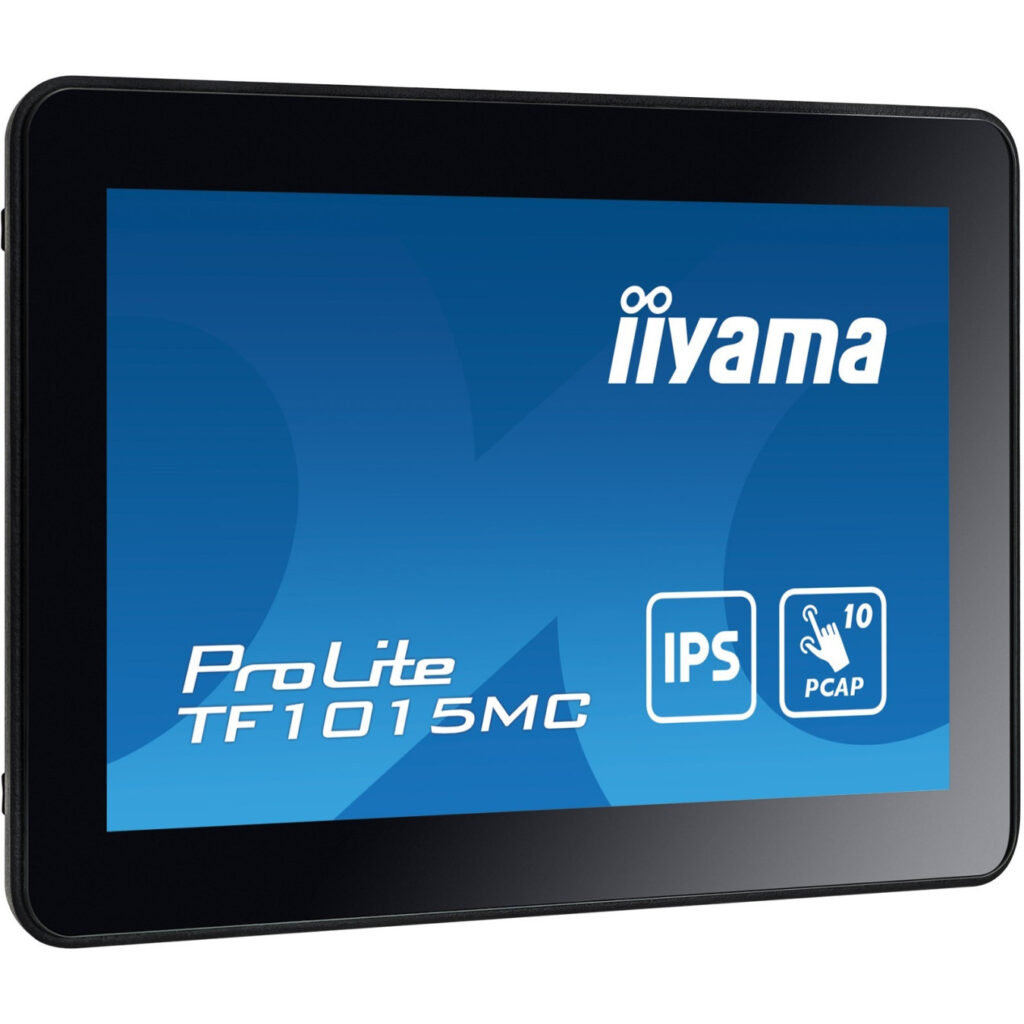

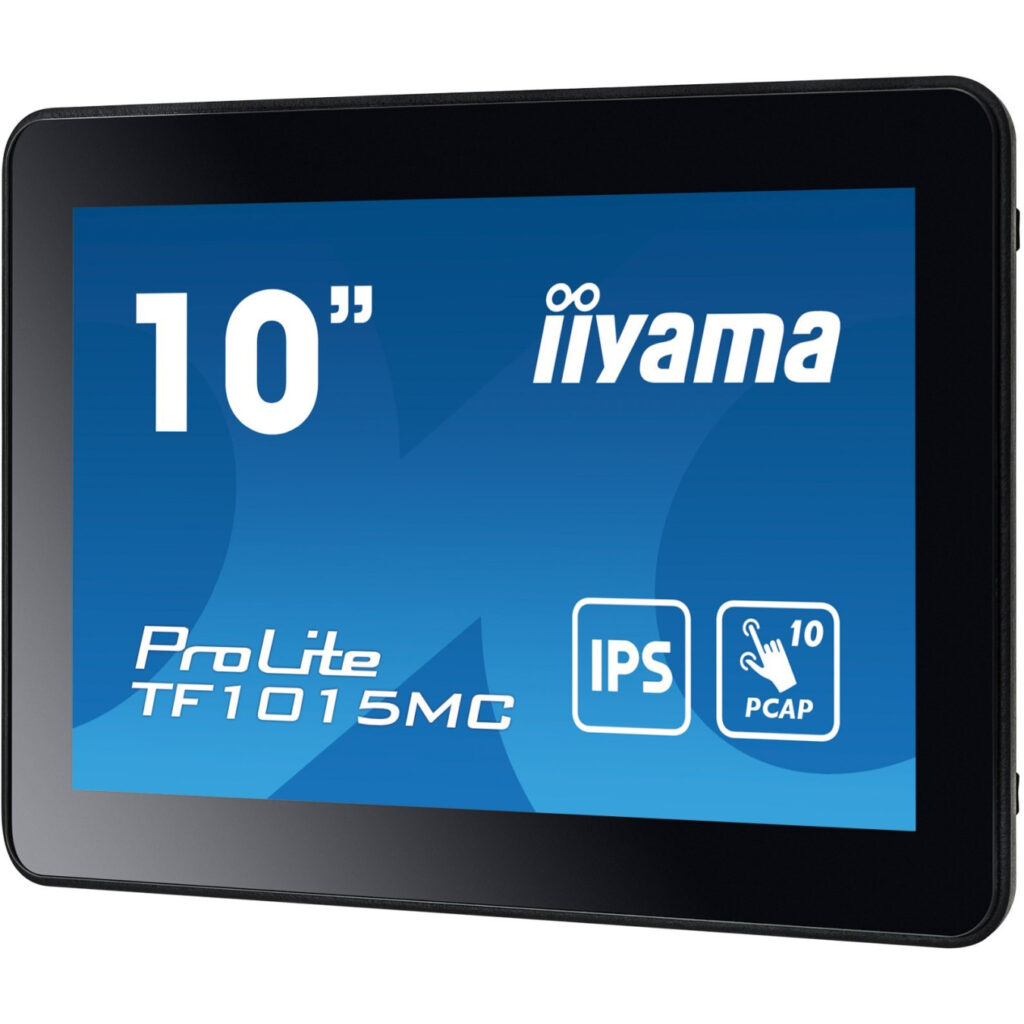

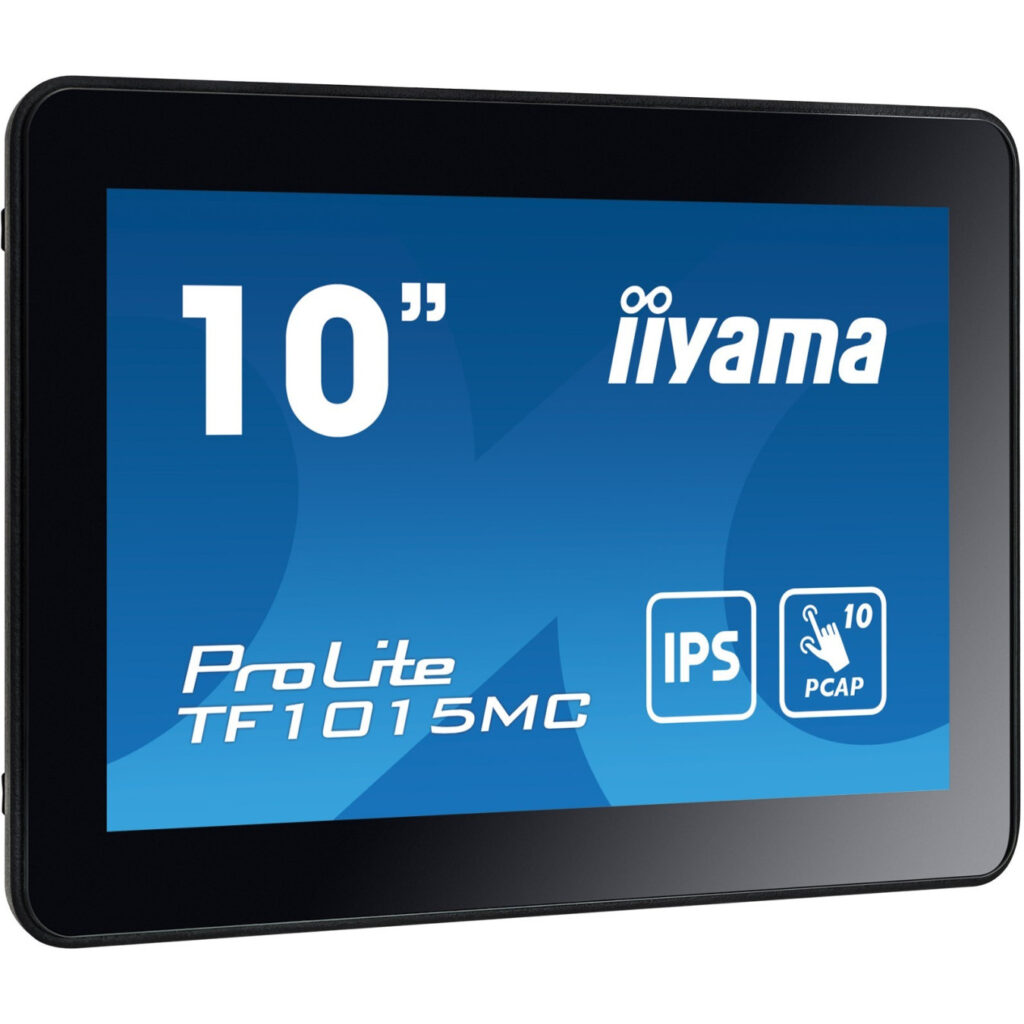

IIYAMA TF1015MC-B3 - 10.1in IPS 10-Point PCAP Touch Display, 16:10, 1280x800, HDMI+DP+USB, Black
456.50 €
10.1-inch IPS 10-point PCAP touch display, 1280×800, 500 cd/m², IP65 front, 100x100mm VESA, HDMI/DisplayPort/USB connectivity
Available in 6–10 business days : 8 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
iiyama 10.1″ Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration. Product design: Interactive flat panel. Display diagonal: 25.6 cm (10.1″). Display technology: LED. Display resolution: 1280 x 800 pixels. Display brightness: 500 cd/m². HD type: HD. Touchscreen. Product colour: Black
| Panel type | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display technology | LED |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 500 cd/m² |
| HD type | HD |
| Feature | Plug and Play |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:10 |
| Response time | 29 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Active display area (W x H) | 216.96 x 135.6 mm |
| Display diagonal (metric) | 25.7 cm |
| Maximum frame rate | 75 fps |
| Horizontal scan range | 30 - 49.7 kHz |
| Surface hardness | 7H |
| Glass thickness | 3.3 mm |

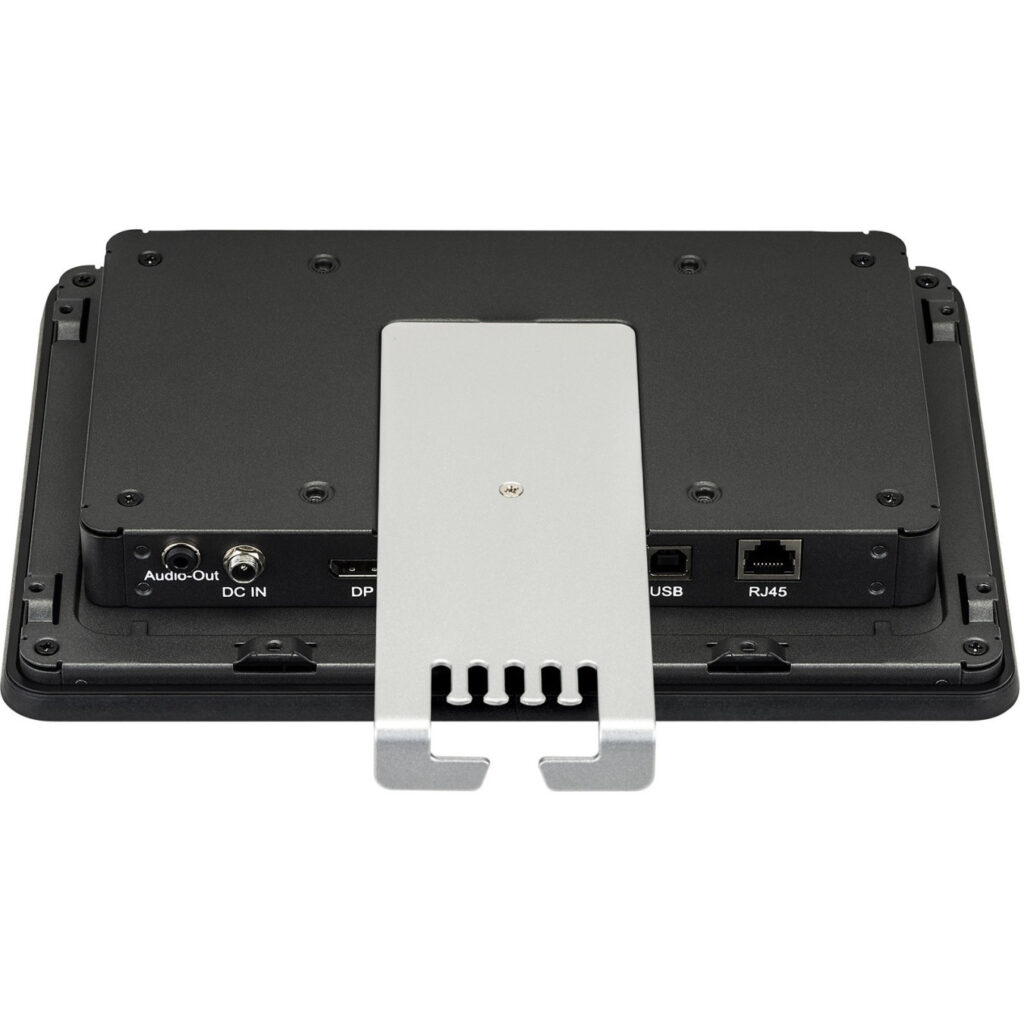

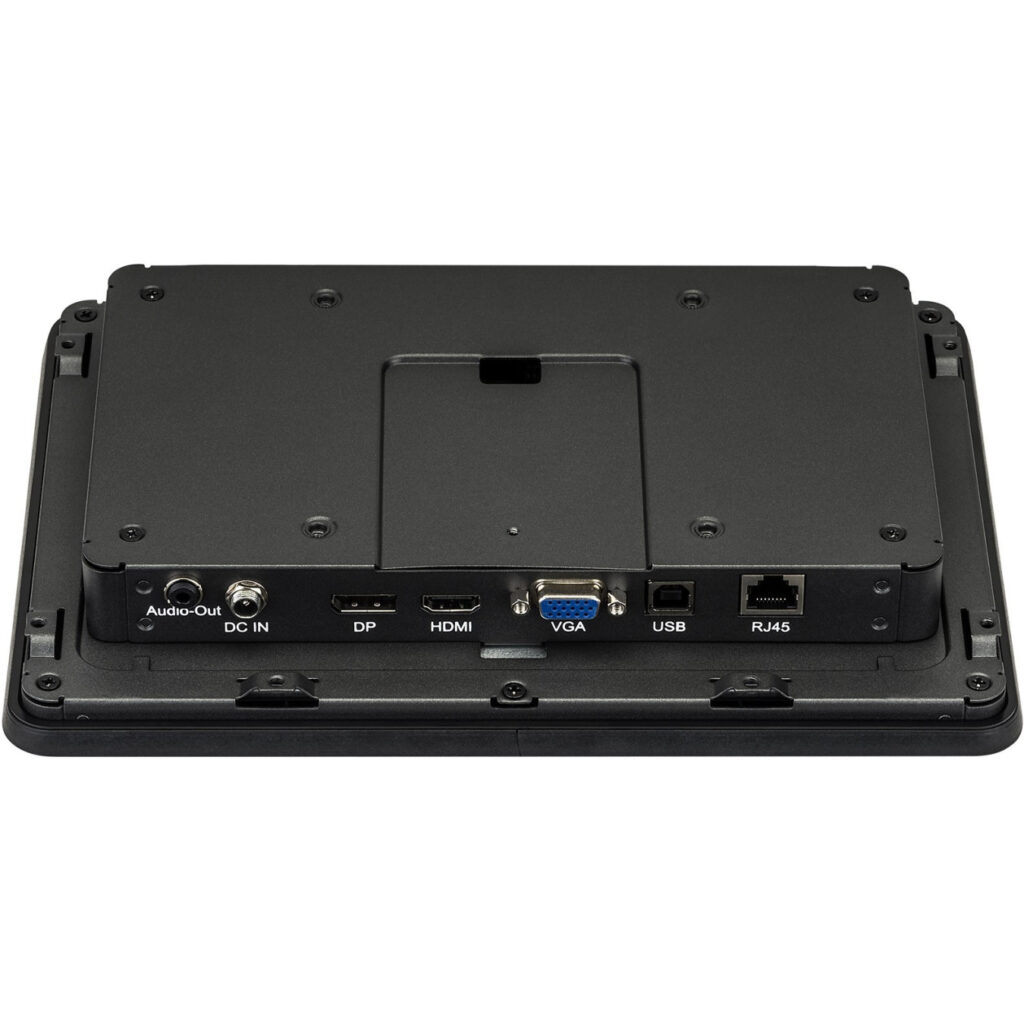

| HDMI ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |

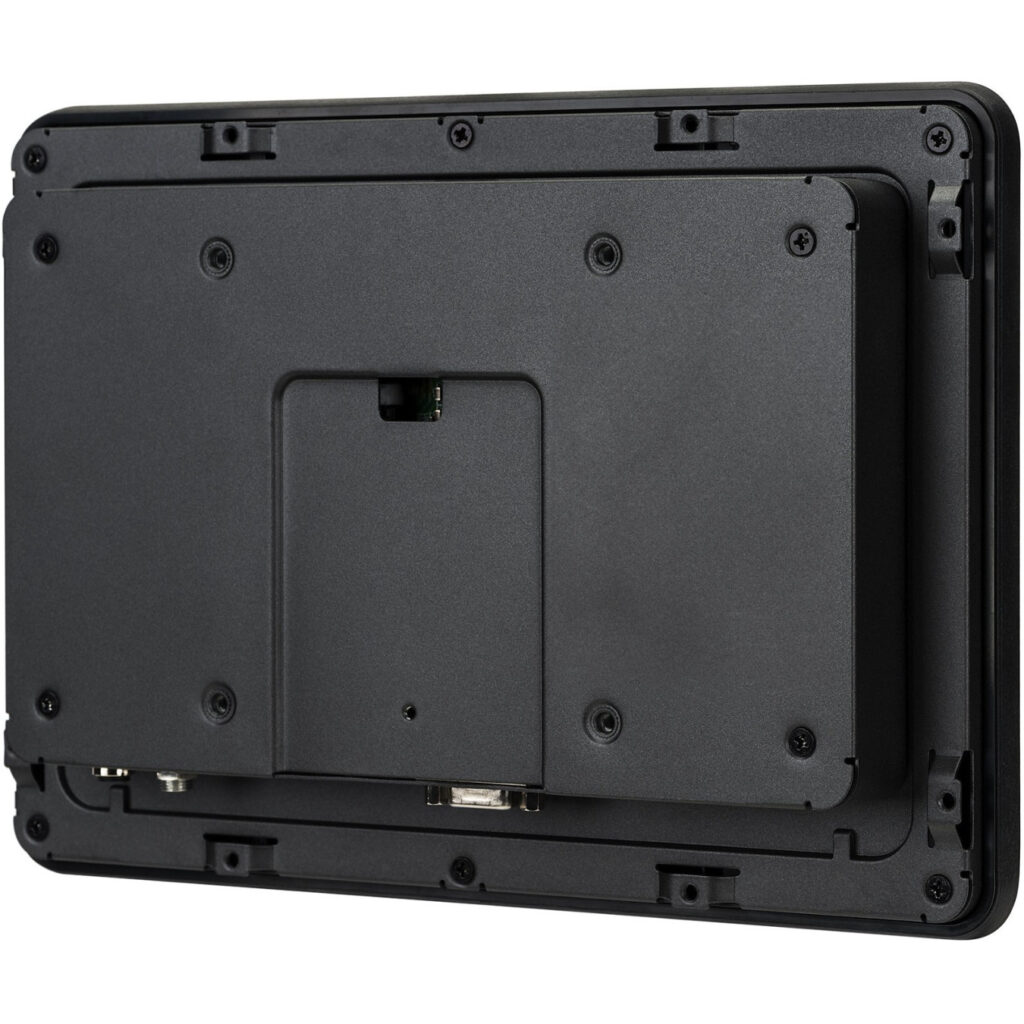

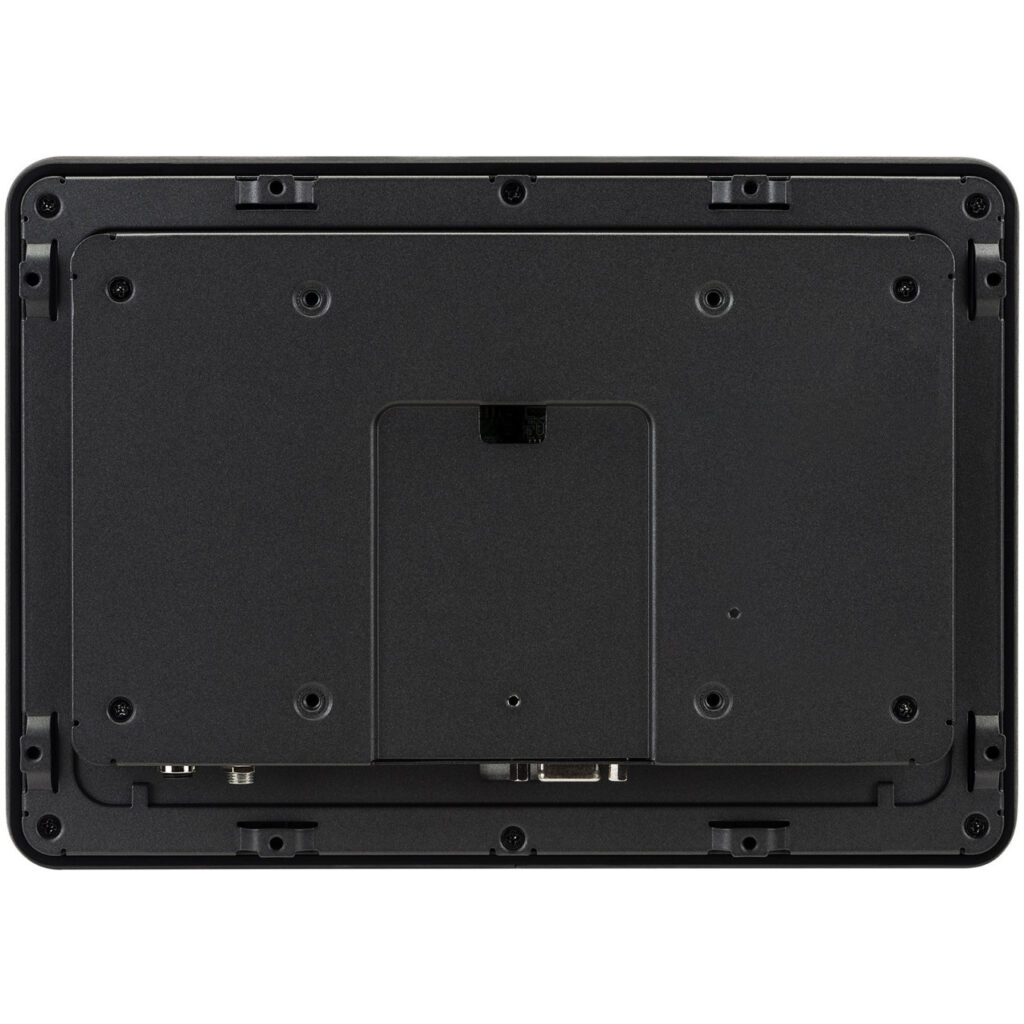

| Panel mounting interface | 100 x 100 mm |
| Purpose | Universal |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese. German. English. Spanish. French. Italian. Japanese |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| Energy efficiency scale | A to G |
| Display width | 260.5 mm |
| Display depth | 39.5 mm |
| Display height | 183.5 mm |
| Display weight | 1.4 kg |
| Package width | 310 mm |
| Package depth | 370 mm |
| Package height | 160 mm |
| Package weight | 2.7 kg |

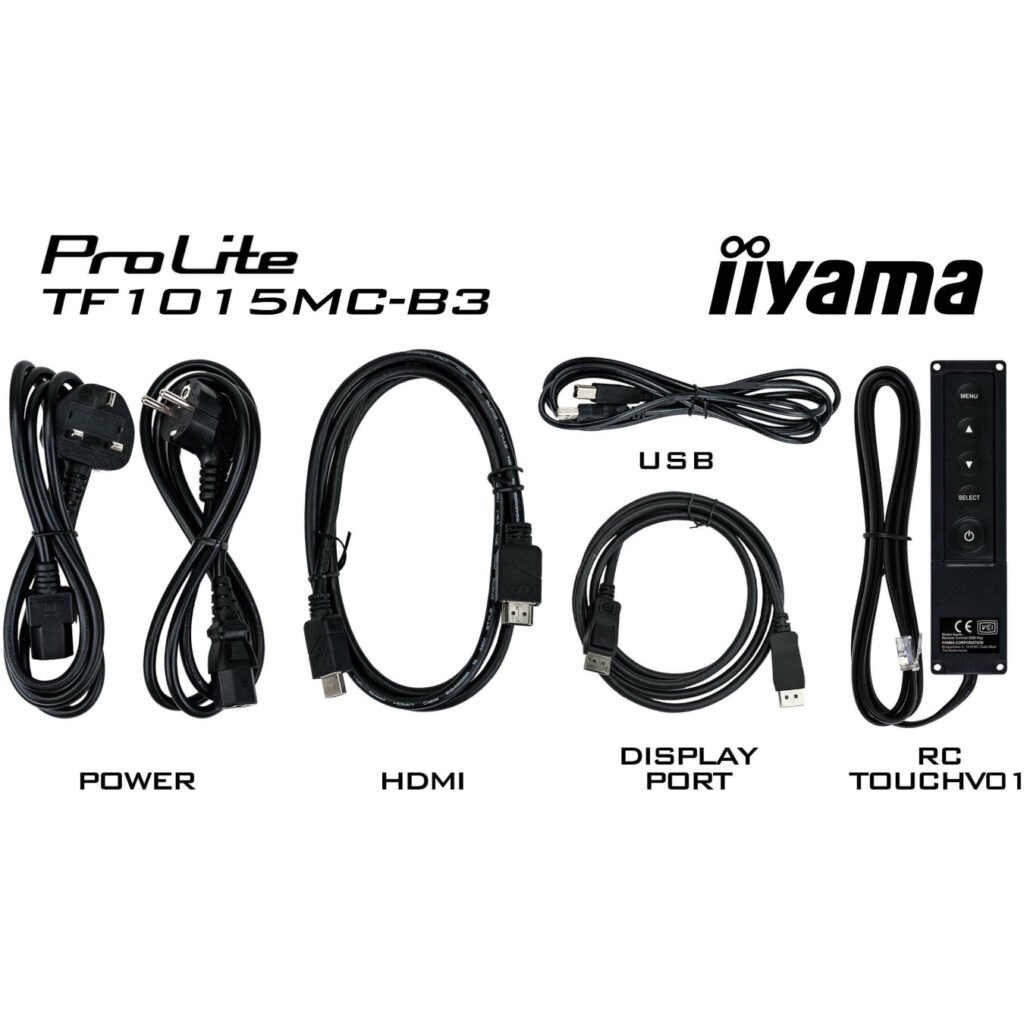

| Cables included | AC. DisplayPort. HDMI. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. cULus |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Audio out (mini jack) | 1 |
