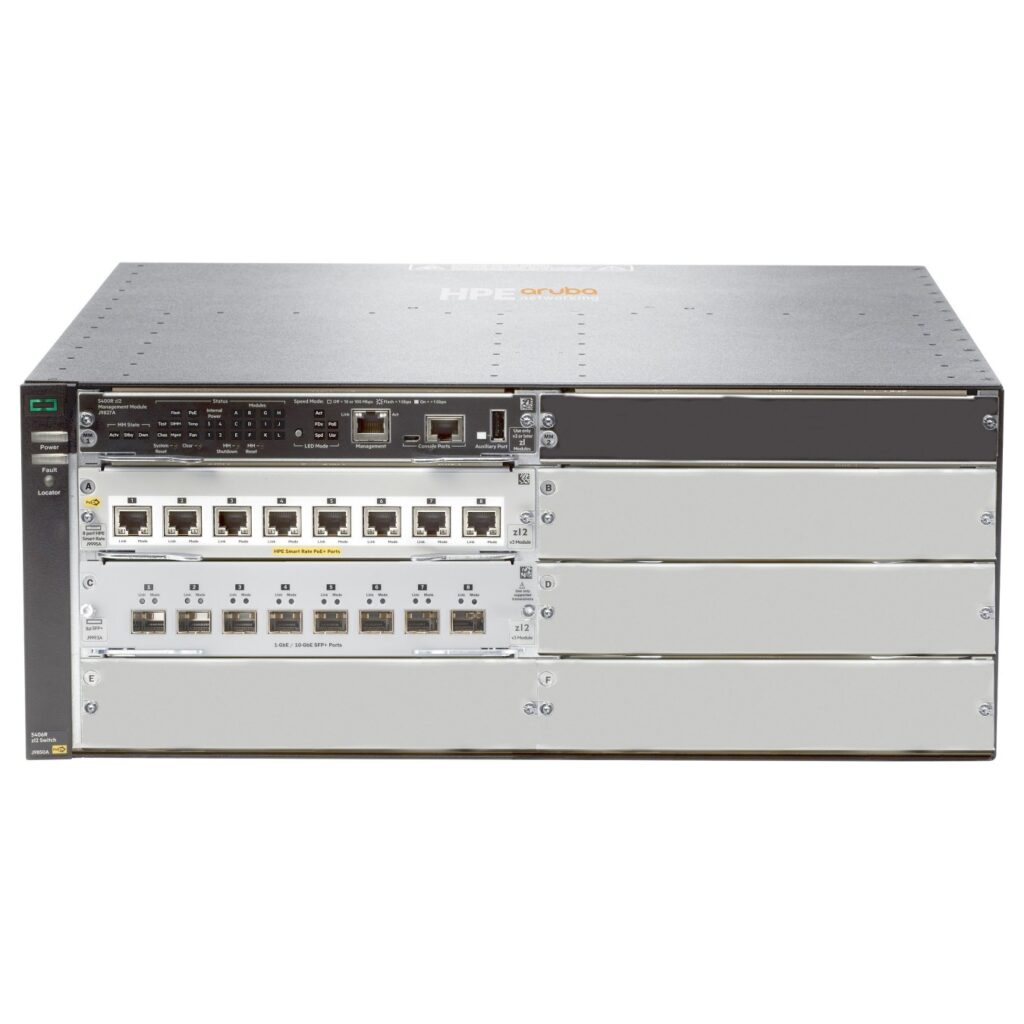

HP Switch 5406R 8x10GBase 8SFP+ nPSU v3
2 678.50 €
HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Available in 6–10 business days : 1 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Routing-/Switching-Kapazität: 960 Gbit/s. Power over Ethernet (PoE)
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Kompatible Speicherkarten | SD |
| Routing-/Switching-Kapazität | 960 Gbit/s |
| Durchgang | 571,4 Mpps |
| Wartezeit (1 Gbps) | 2,8 µs |
| Wartezeit (10 Gbps) | 1,8 µs |
| Produktfarbe | Silber |
| Eingebauter Prozessor | Ja |
| Prozessortaktfrequenz | 1200 MHz |
| Speichertyp | DDR3-SDRAM |
| Speicherkapazität | 4096 MB |
| Flash-Speicher | 16 MB |
| Netzteil enthalten | Nein |
| AC Eingangsspannung | 200 - 240 V |
| Stromversorgung | 2 power supply slots 1 minimum power supply required (ordered separately) |
| Power over Ethernet (PoE) | Ja |
| Latenz | 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs |
| Speicher und Prozessor | Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM. |
| Weitere Anschlüsse | 8 RJ‑45 HPE Smart Rate Multi‑Gigabit ports (100M, 1/2.5/5 GBaseT and 10 GBaseT) 8 open 10 GbE SFP+ transceiver slots 4 open module slots Supports a maximum of 144 auto‑sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‑Gigabit or 12 40 GbE ports, or a combination. |
| Leistungsmanagementfunktionen - Beschreibung | HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager |
| Gewicht (imperial) | 12,8 kg (28.1 Pfund) |
| Abmessungen (B x T x H) (in Zoll) | 444,5 x 450,9 x 175,3 mm (17.5 x 17.8 x 6.9") |
| Wärmeableitung | 2450 BTU/h |
| Breite | 444,5 mm |
| Tiefe | 450,9 mm |
| Höhe | 175,3 mm |
| Gewicht | 12,8 kg |
| Warentarifnummer (HS) | 85176990 |
