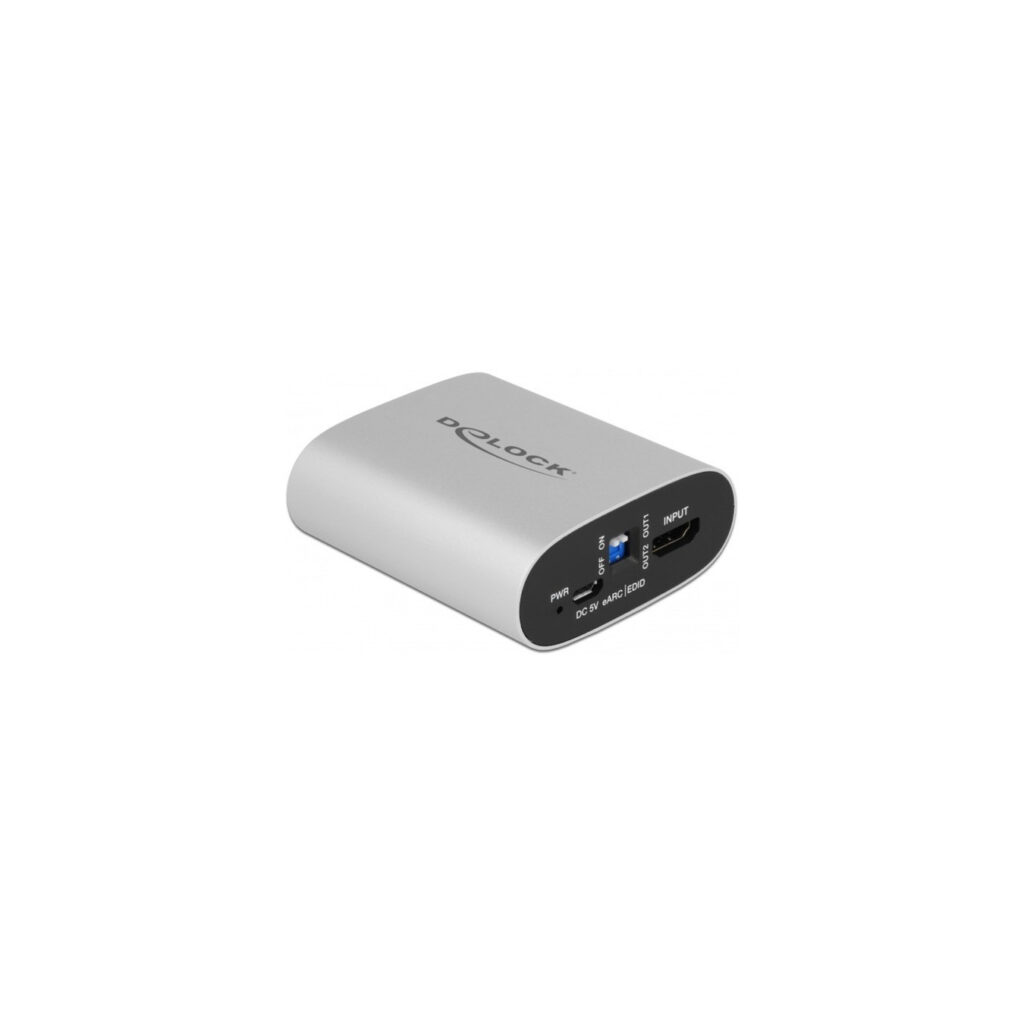

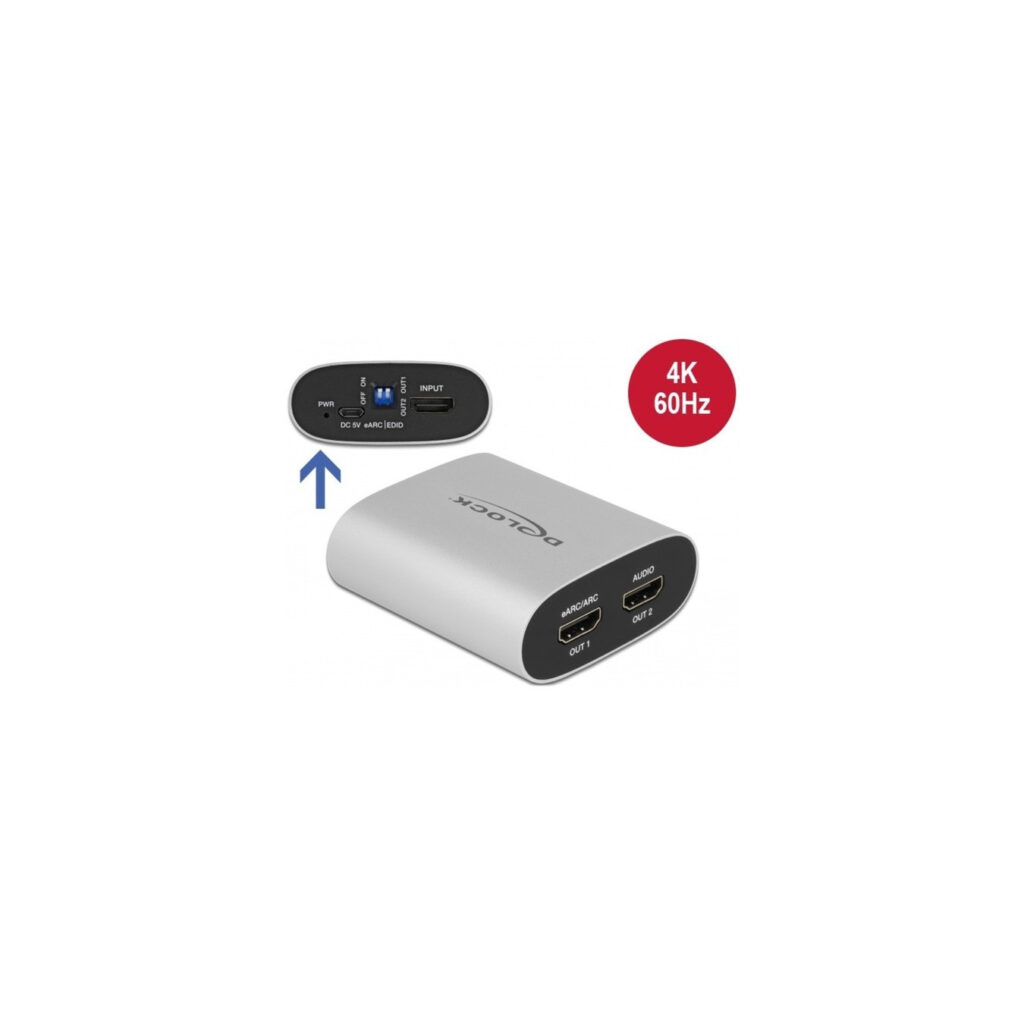

HDMI HD Audio Extractor 4K 60 Hz to HDMI with eARC, adapter
With the adapter 63332 from Delock, the audio signal can be extracted from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be out…
Available in 6–10 business days : 42 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

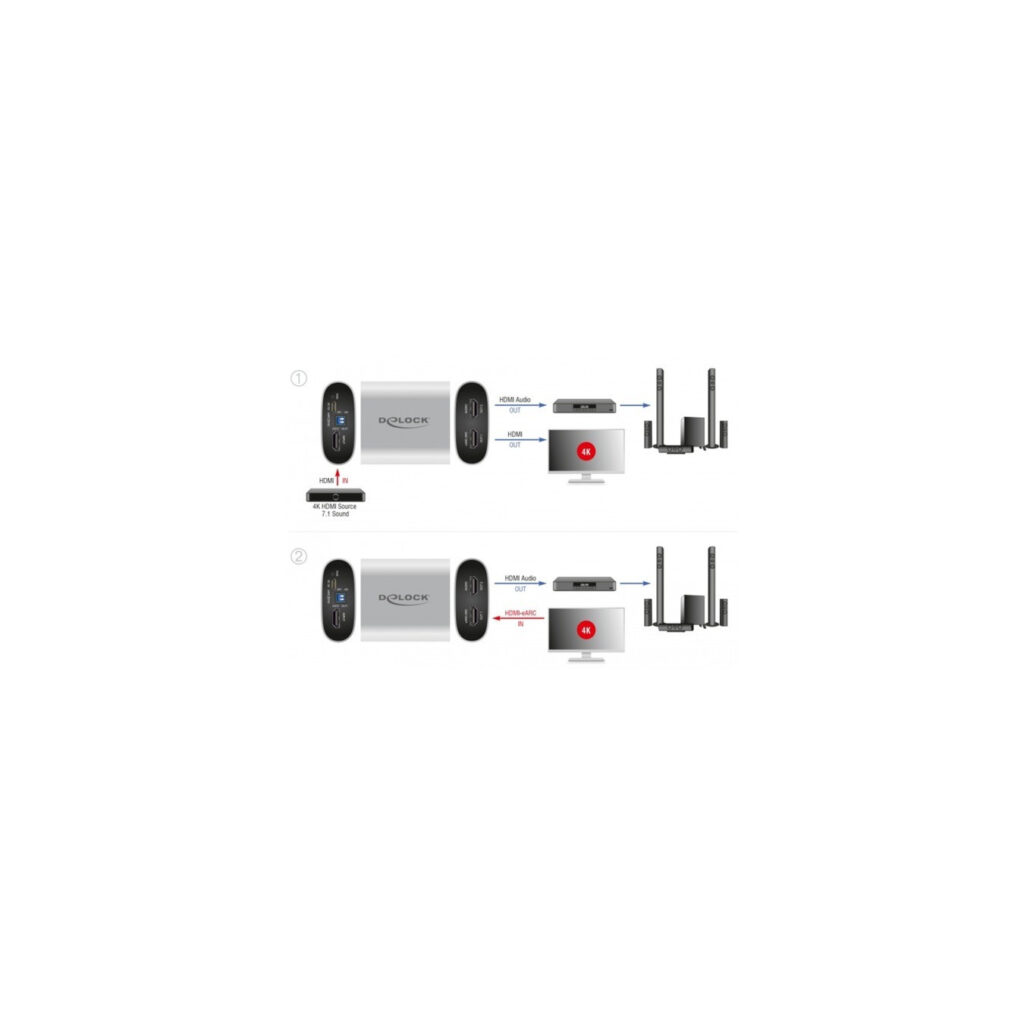

With the adapter 63332 from Delock, the audio signal can be extracted from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be output to a surround receiver via the second HDMI connection. This means that an existing AV receiver or soundbar can still be used, even if there is no suitable Ultra HD connection. In contrast to conventional digital S/PDIF audio outputs, all modern surround formats can be transmitted to the receiver via the HDMI audio output. Alternatively, the eARC function can be activated on the extractor. The audio signal from the connected TV device is then output via the HDMI audio port on the device.
| Typ | Adapter |
| Color | silber |
| EAN | 4043619633326 |
| Manufacturer no. | 63332 |
| Application example | For decoupling the audio signal |
| Area | Audio / Video |
| Connection - from | 1x HDMI (socket) |
| Video classification | HDMI High Speed |
| taps | 3 |
| Characteristics | Adapter, extern |
| Feature | HDMI HD audio output, Audio Return Channel (ARC), metal housing |
| More information | High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2, supports HDR (High Dynamic Range), resolution up to 3,840 x 2,160 @ 60Hz, video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps, dedicated HDMI output only for audio with 720p (black screen), supports all common 2.0, 5.1 and 7.1 Audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-5.1, DTS-ES 6.1, DTS-HD HRA, DTS-HD Master Audio, DTS:X, supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 192 kHz, supports eARC / ARC audio output to HDMI audio output, CEC and EDID management, HDMI audio is passed through to the output (pass-through) |

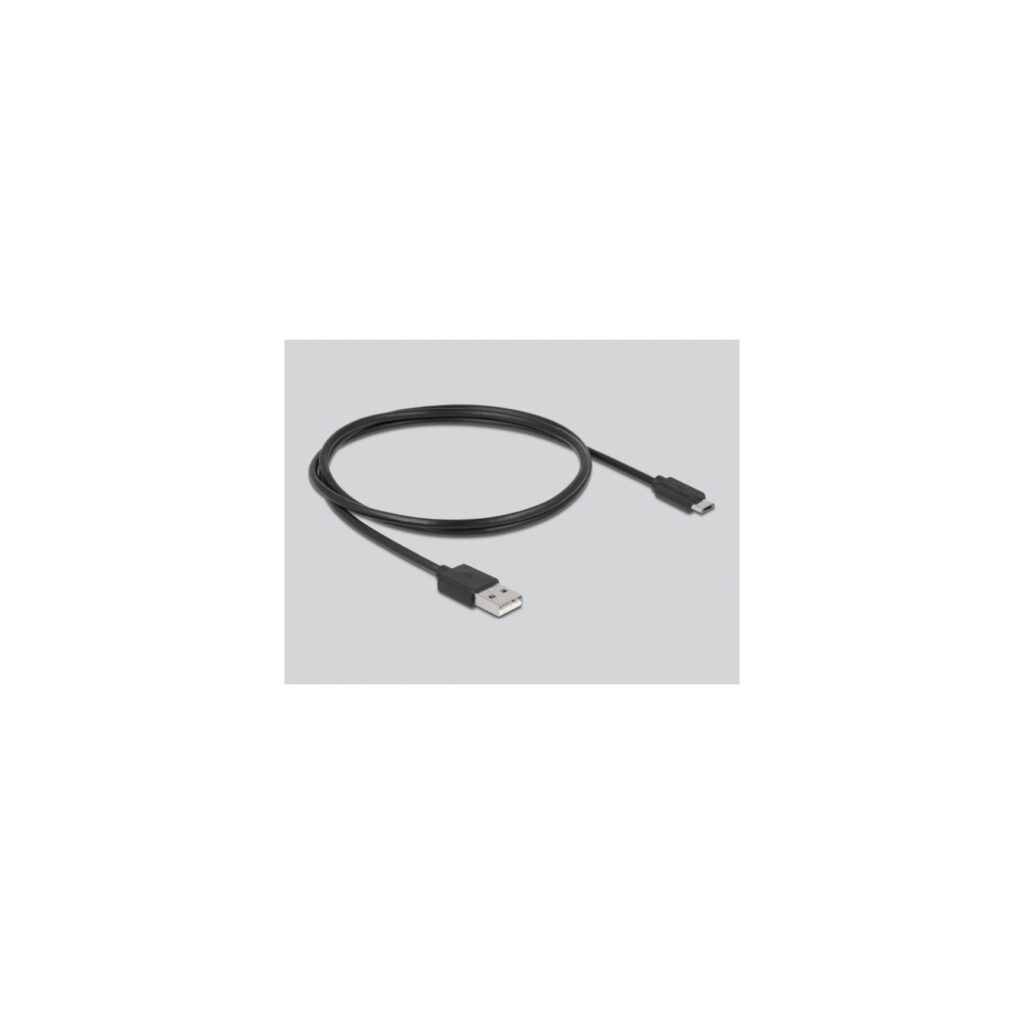

| Notice | Power supply via USB (power supply not included), power consumption max. 2 W |
