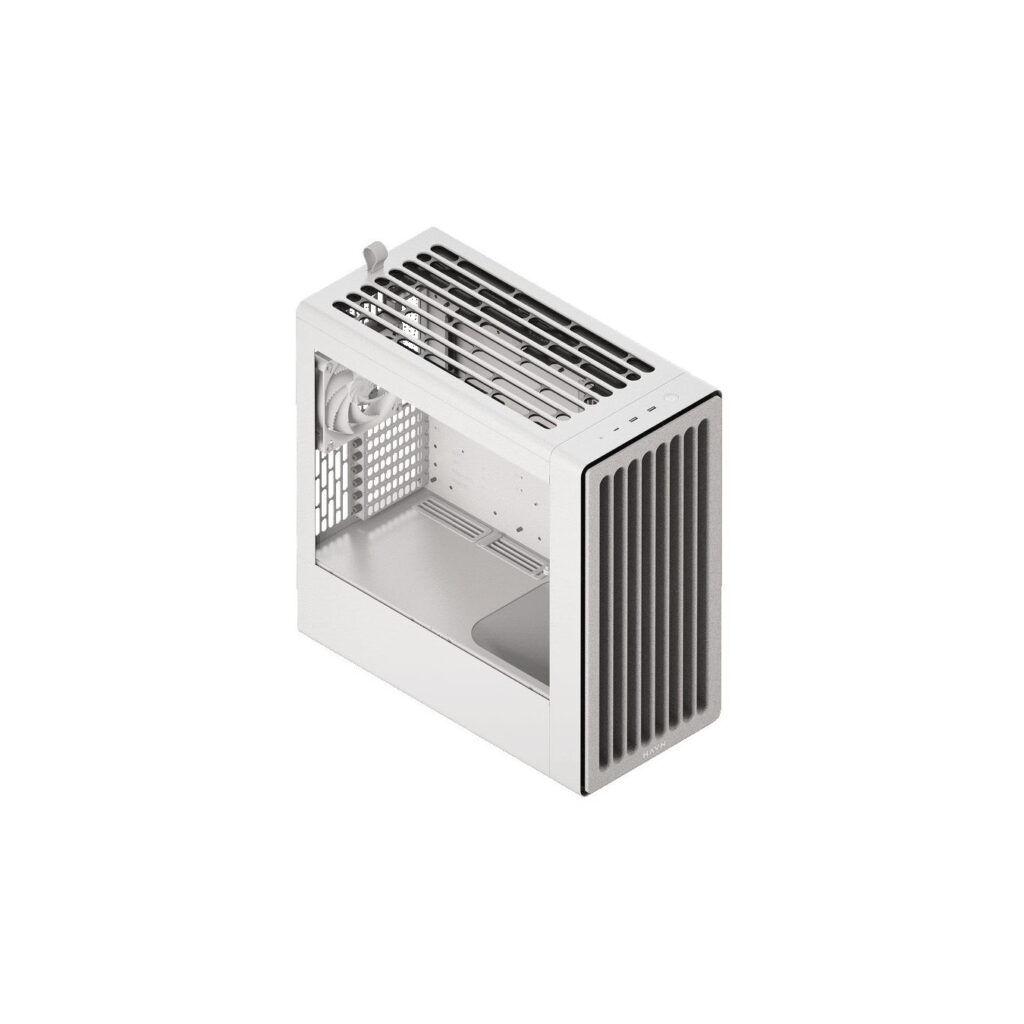

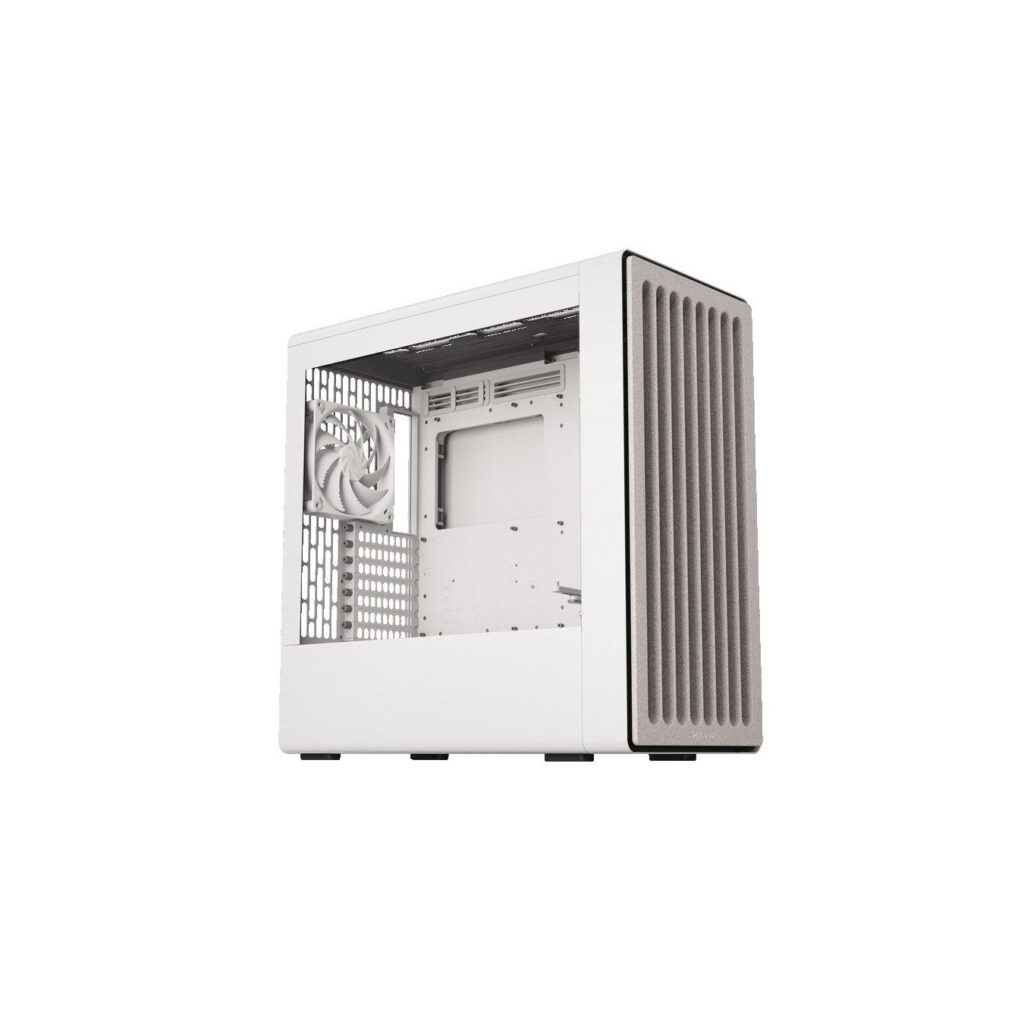

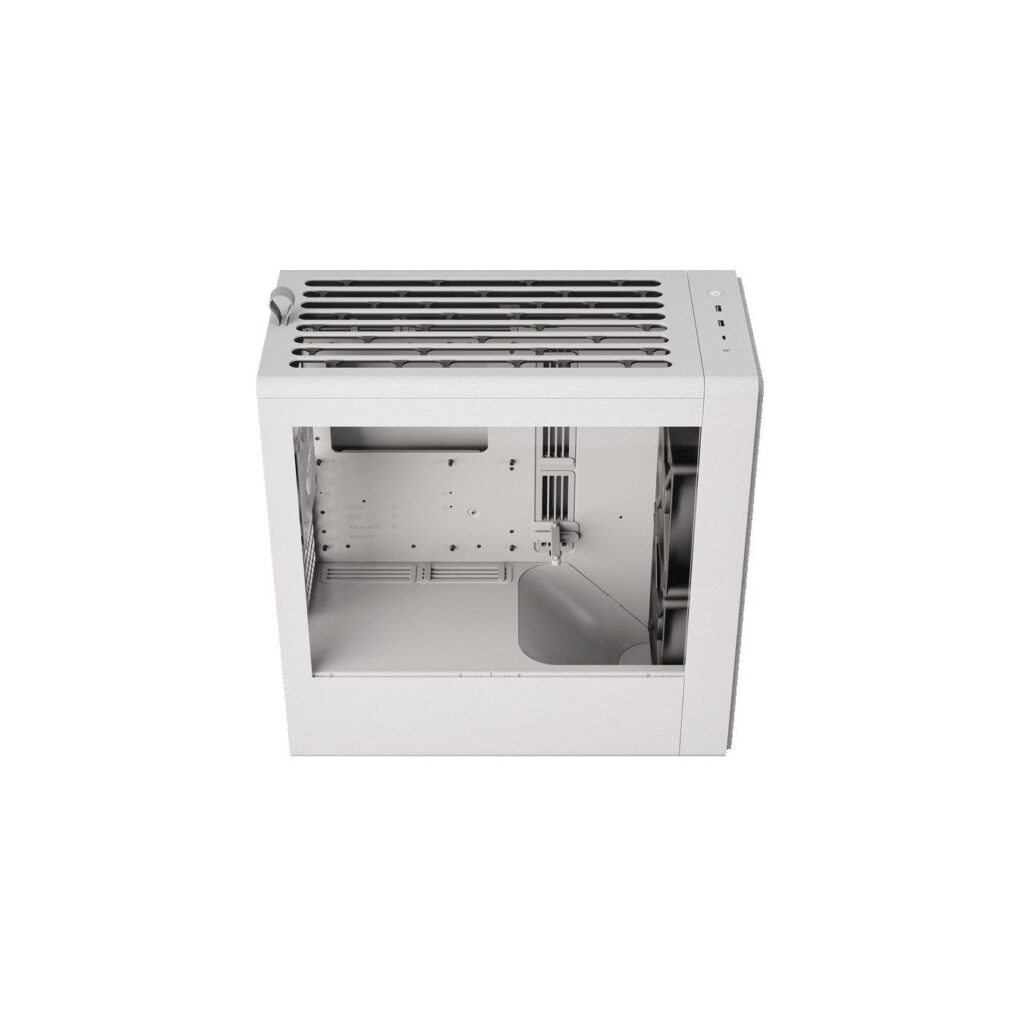

HAVN BF 360 Flow White with 180mm fans - Premium ATX Mid-Tower
High-airflow ATX mid-tower with 2x180mm front fans + 1x140mm rear for 160CFM at low RPM. GPU-focused air ramp, supports 360/420mm top radiators, E-ATX, premium SGCC build.
Available in 10–14 business days : 6 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ENGINEERED FOR MAX AIRFLOW
Two 180mm H18 front fans and one 140mm H14 rear fan deliver 160CFM airflow at low RPM with reduced noise for optimal CPU/GPU cooling under heavy loads. Supports up to four 180mm fans and dual 360/420mm radiators on top.
AERODYNAMIC THERMAL DESIGN
Integrated 135° air duct directs flow to GPU hot zones, improving heat dissipation. Optimized layout cools VRMs, chipset, and GPU efficiently during high-load gaming. Includes PWM fan repeater (6 ports, 12V, 2.6A max).
PREMIUM SEMI-OPEN FRAME & ORGANIZATION

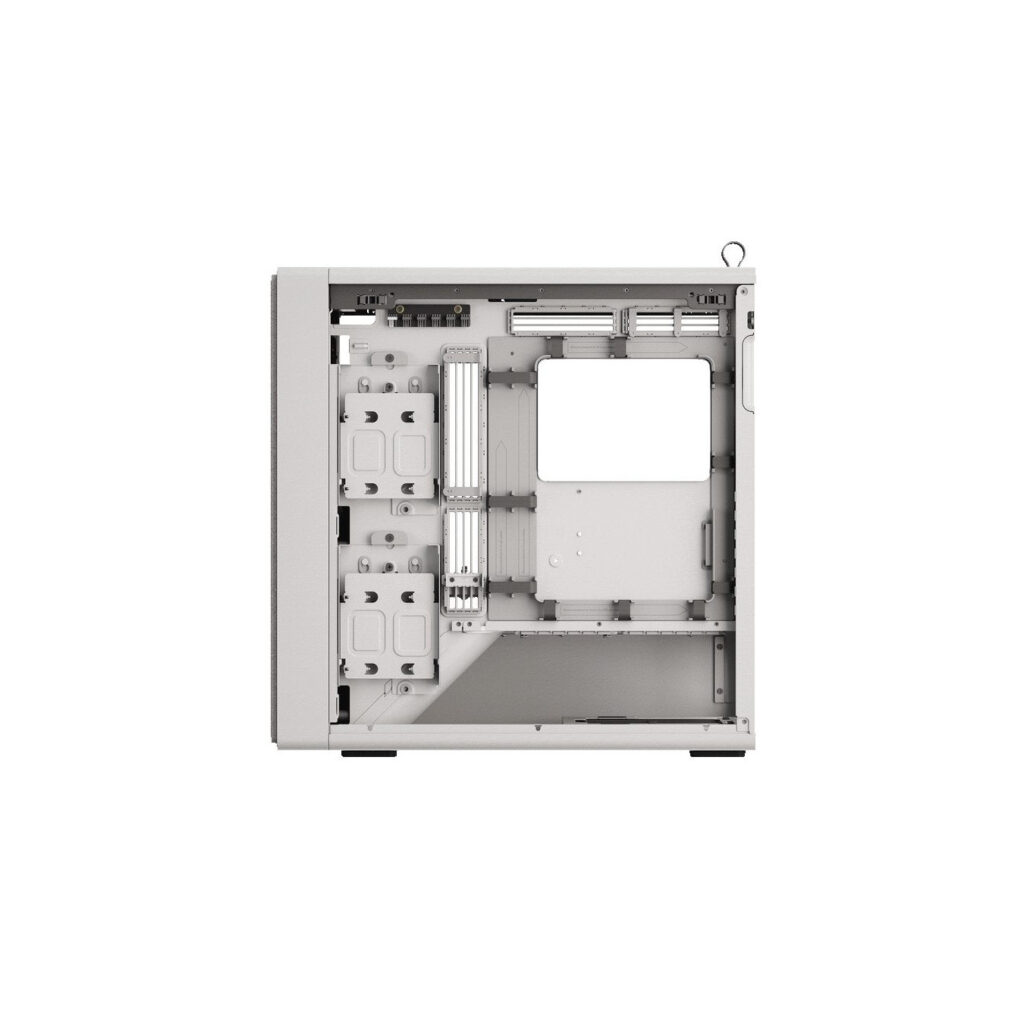

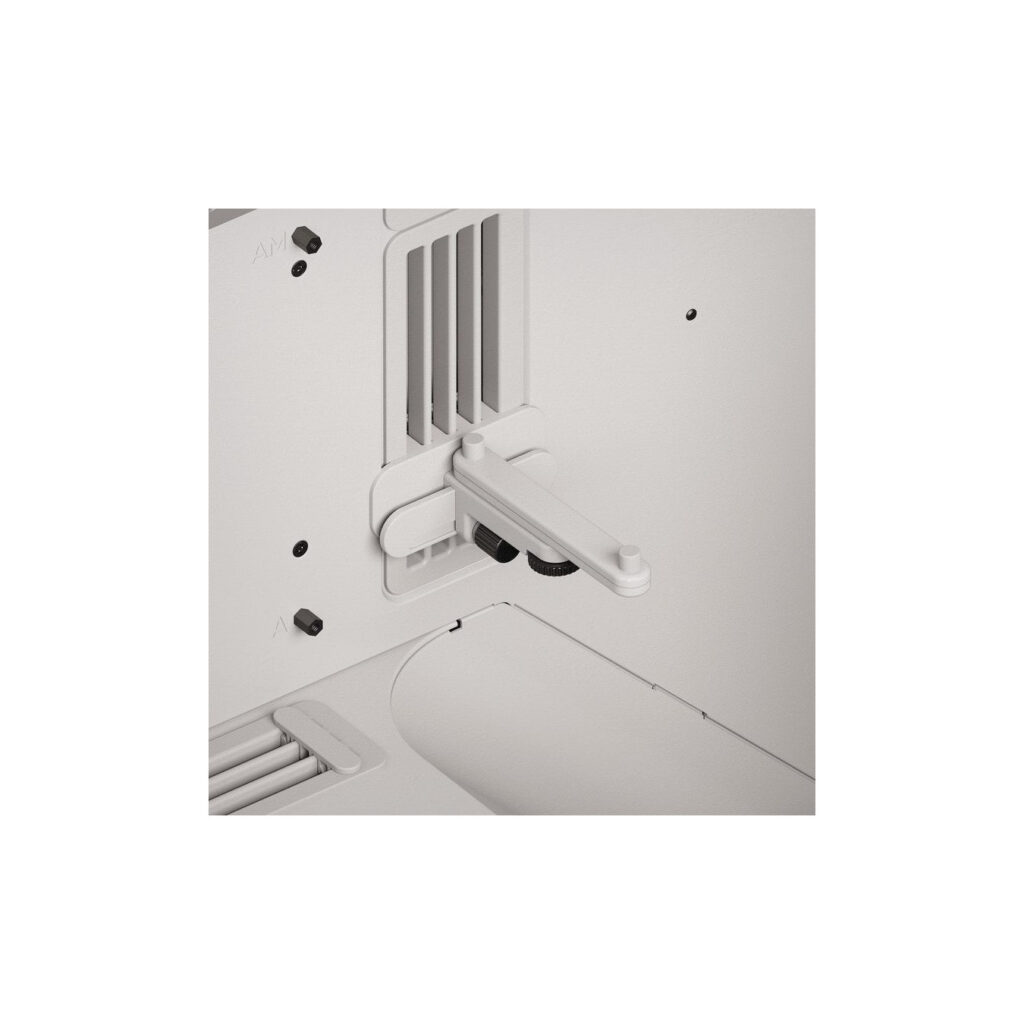

SGCC steel construction with detachable U-bracket, 33mm cable space, Velcro straps. Supports E-ATX (277mm), 195mm CPU cooler, 410mm GPU (4.5 slots). Vibration-dampened storage: 2x (2×3.5″/4×2.5″).
- Dimensions: 515 x 254 x 522.6 mm, 14.79 kg net
- I/O: USB-C 3.2 Gen2 x1, USB-A 3.2 Gen1 x2, Audio
- Dust filters: Front/Top built-in, Bottom removable
- White finish, stone-textured panel
| Model | BF 360 Flow |
| Form Factor | Mid Tower |
| Case Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 14.79 kg |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Color | White |
| Front I/O | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| CPU Tower Cooler Clearance (Height) | Up to 195 mm |
| Graphics Card Clearance (Length) | Up to 410 mm |
| Graphics Card Clearance (Width) | Up to 195 mm |
| GPU Support | 1 - 4.5 Slots |
| Power Supply Support | ATX |
| Power Supply Length | Up to 200 mm |
| Maximum Fan Amount | 6 |
| Top Fan Support | 2 x 180 mm / 2 x 140 mm / 3 x 120 mm |
| Front Fan Support | 2 x 180 mm |
| Rear Fan Support | 1 x 140 / 1 x 120 mm |
| Pre-installed Fans | 2x 180mm (Front), 1x 140mm (Rear) |
| Liquid Cooling Support (Top) | 240 / 280 / 360 mm (420 mm supported per some sources) |
| Fan PWM Repeater Ports | 1 repeater, 6 ports total (4-pin PWM) |
| Fan Rated Voltage | 12V |
| Fan Safety Current | Up to 2.6A across 6 ports |
| Repeater Power Connector | 1 x SATA Power |
| Storage Bays | 2x (2 x 3.5'' / 4 x 2.5'') + optional |
| Dust Filters | Front/Top (Built-in), Rear/Bottom (Removable) |
| Warranty | 1 year |
