GIGABYTE GA-B650 EAGLE AM5 ATX DDR5 Motherboard 256GB AMD B650
GIGABYTE GA-B650 EAGLE: AM5 socket, B650 chipset, DDR5 4xDIMM up to 256GB, Ryzen 7000/8000/9000 support. 3x M.2 (1x PCIe5), 4x SATA, GbE LAN, no WiFi. Solid VRM for budget builds.
Available in 8–10 business days : 17 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

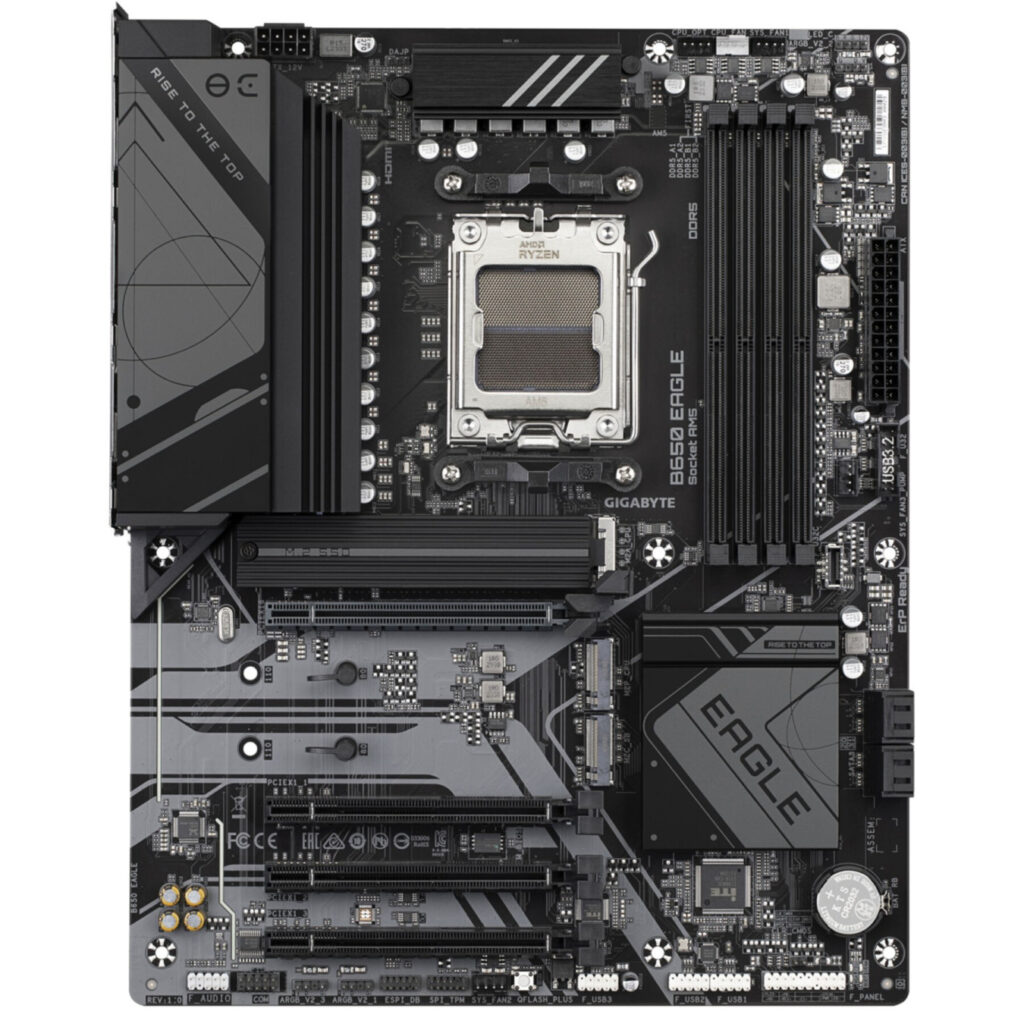

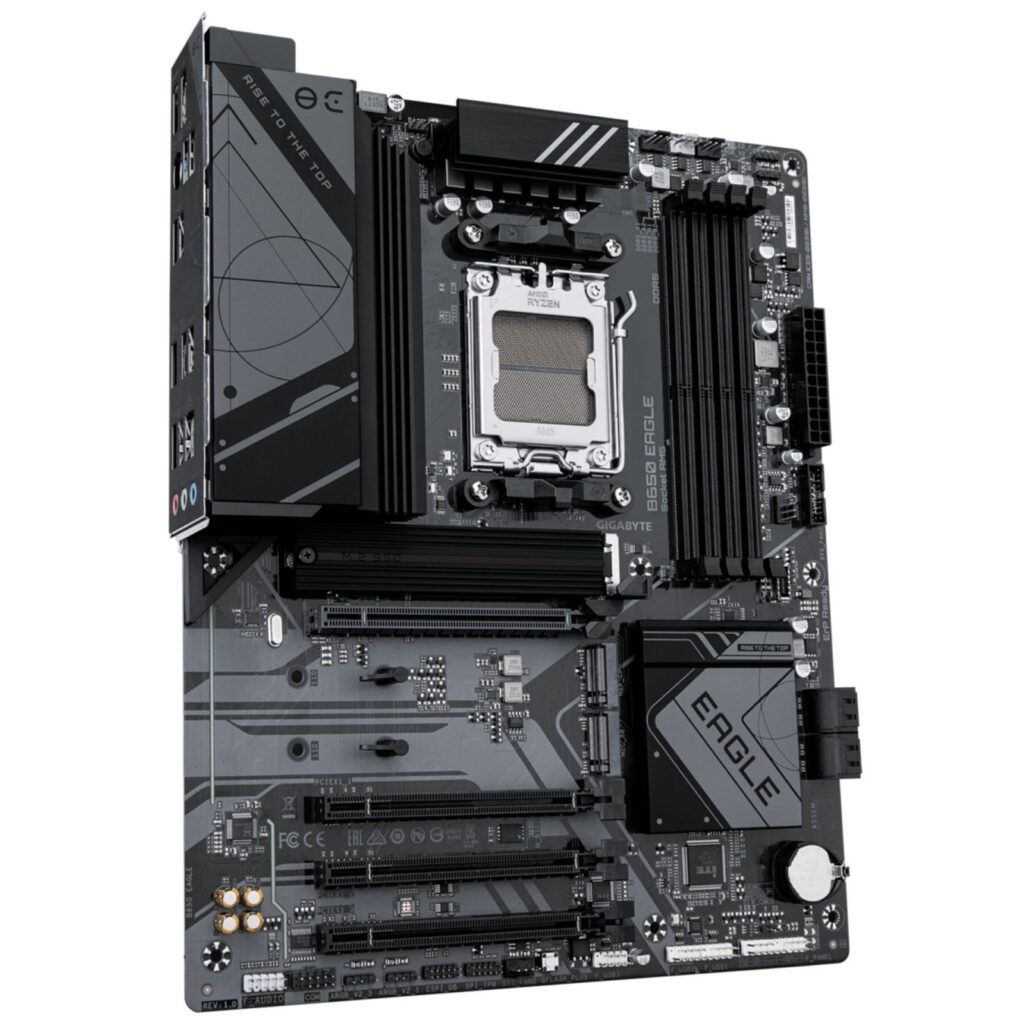

The GIGABYTE GA-B650 EAGLE is a reliable ATX motherboard for AMD Ryzen builds on the AM5 platform. Featuring the B650 chipset, it supports Ryzen 7000, 8000, and 9000 series processors with a robust 12+2+2 phase digital VRM for stable performance even under load.

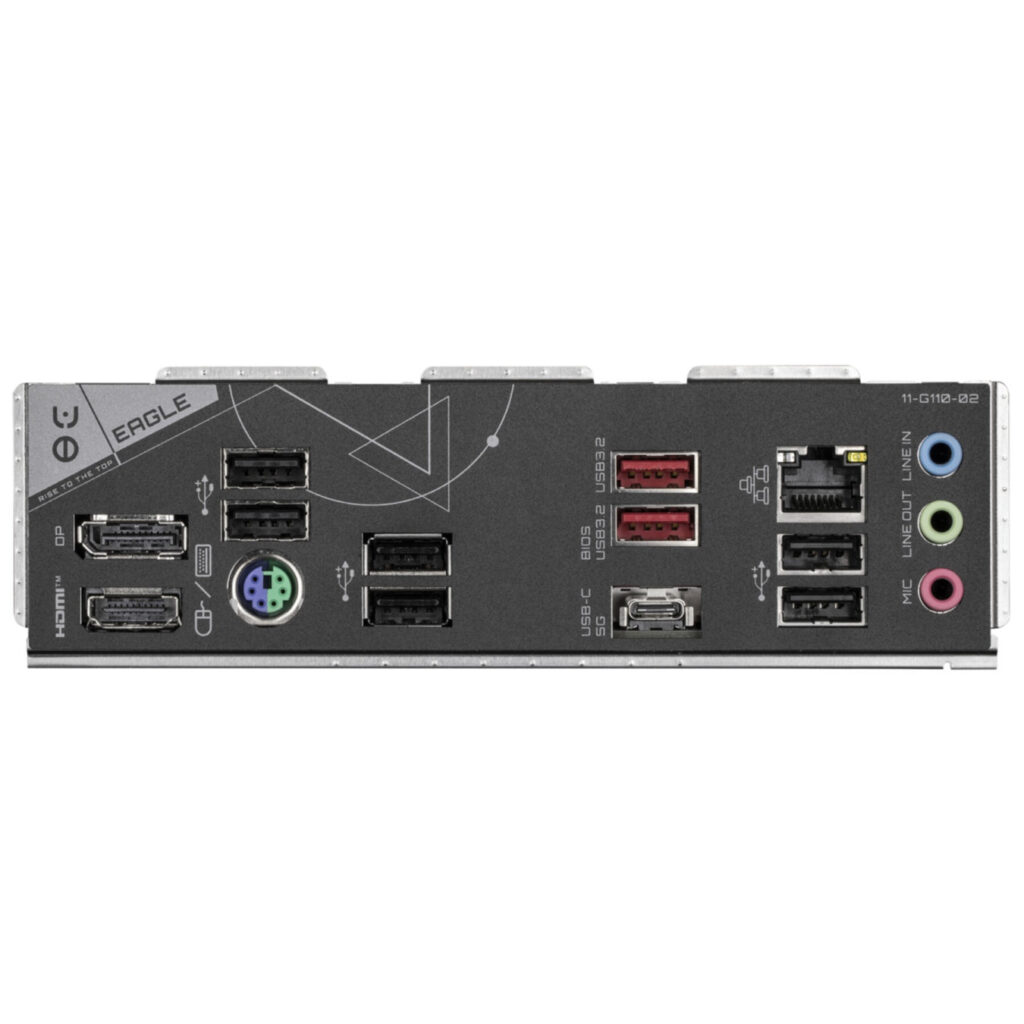

Dual-channel DDR5 memory with 4 DIMM slots supports up to 256GB at speeds to 7600MHz+(OC) with AMD EXPO and Intel XMP profiles. Storage options include 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) with thermal guards, plus 4x SATA III. Connectivity features PCIe 4.0 x16 GPU slot, Gigabit Ethernet (Realtek), HDMI 2.1, DP 1.4, and ample USB including rear Type-C.
- Key Features: AM5 socket, DDR5-7600+ support, 3x M.2 PCIe, 12+2+2 VRM
- Audio: Realtek ALC897 7.1-channel
- Networking: GbE LAN (no WiFi)
- Expansion: 1x PCIe 4.0 x16, 3x PCIe 3.0 x16

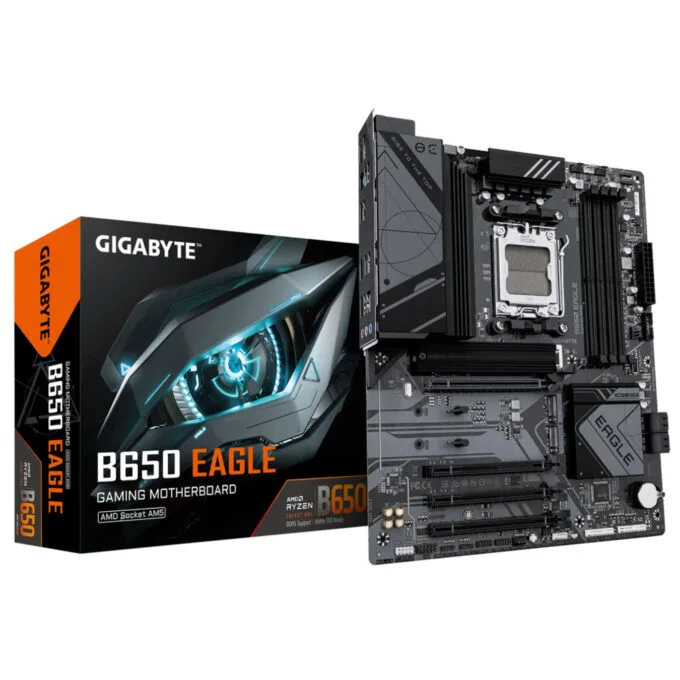

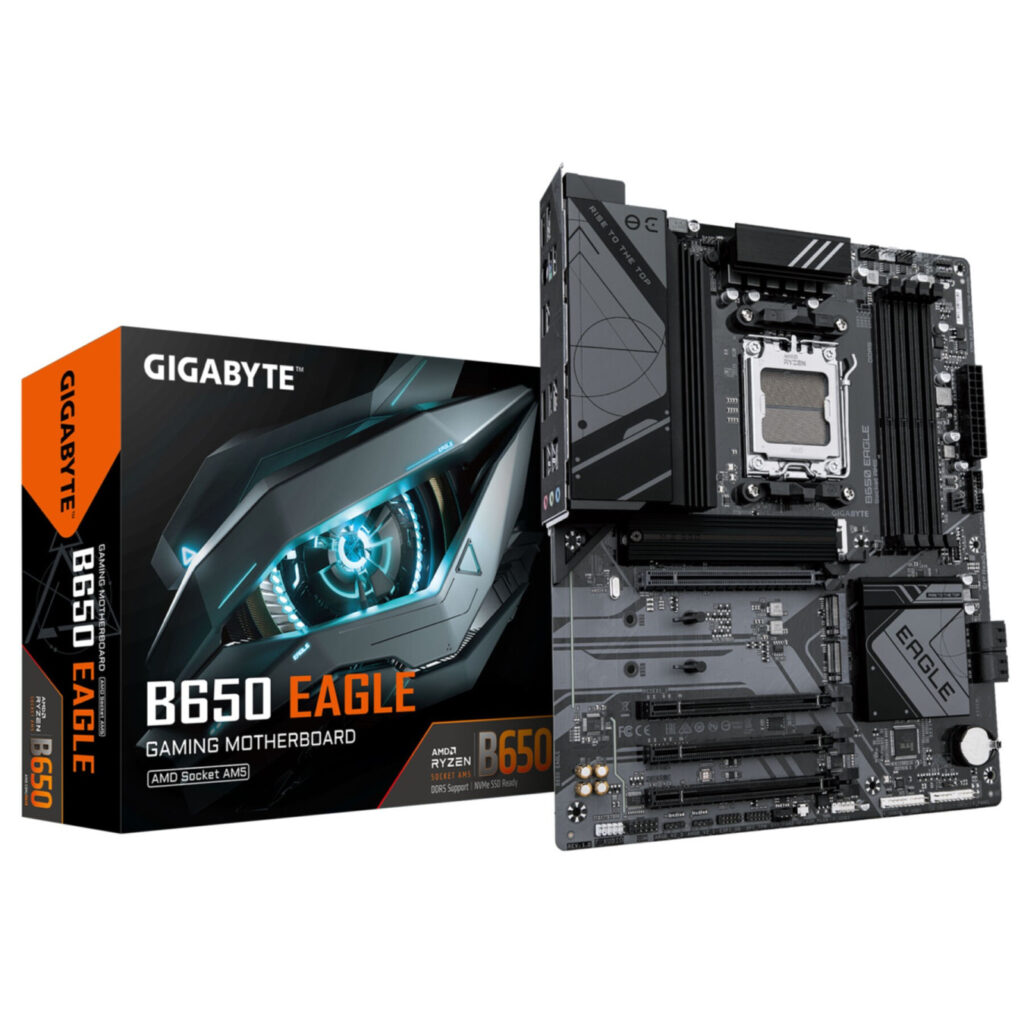

- Includes: Boxed with accessories, 3-year warranty
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 7600 MHz |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| VRM Phases | 12+2+2 |
| Memory Profile Support | AMD EXPO, Intel XMP |
| Warranty period | 3 year(s) |
| Country of origin | China |
| Package weight | 1.82 kg |
