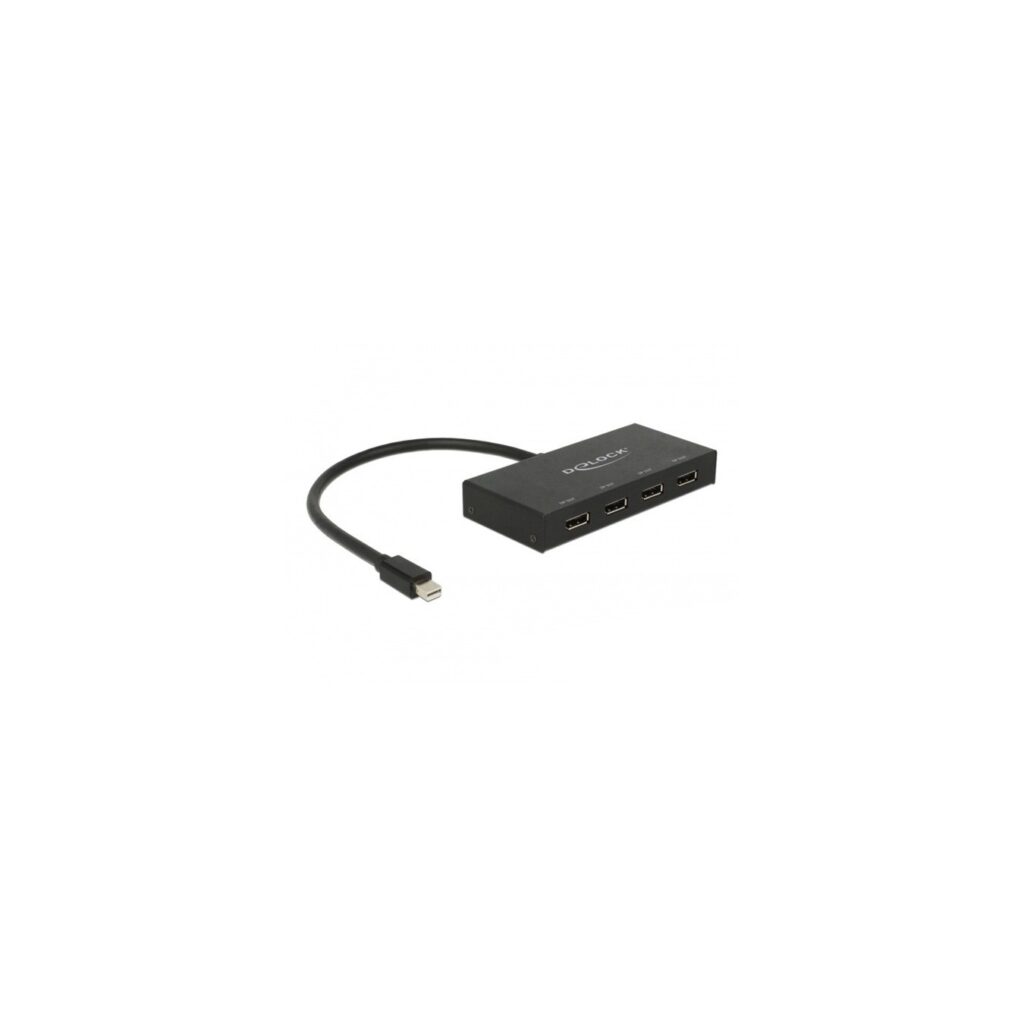

DisplayPort Splitter - 1x mini DisplayPort 1.2 to 4x DisplayPort 4K
101.00 €
Delock DisplayPort 1.2 Splitter 87693 distributes one DP signal from a PC/notebook to four displays.
Available in 6–10 business days : 20 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The DisplayPort 1.2 Splitter 87693 from Delock receives a DisplayPort signal from a PC or notebook and splits it between four connected screens. This means that four DisplayPort monitors can be operated on one DisplayPort connection. The outputs are dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters.
| Typ | DisplayPort Splitter |
| Color | schwarz |
| EAN | 4043619876938 |
| Manufacturer no. | 87693 |
| Application example | Divides the video signal between four connected screens |
| Area | Audio / Video |
| Connection - from | 1x Mini DisplayPort (male) |
| Video classification | Displayport 1.2a |
| taps | 5 |
| Characteristics | extern |
| Feature | Metal housing, supports audio and video signals, DisplayPort output supports dual mode DP++ |
| More information | Chipset: STDP4320, active converter, Single / Multi Stream Transport Hub (SST / MST), maximum resolution (depending on the system and connected hardware): DisplayPort 1.1 or 1.2 Single Stream Transport (SST) up to 1,920 x 1,080 @ 60Hz (mirrored), DisplayPort 1.2 Multi Stream Transport (MST) up to 2,560 x 1,440 @ 60Hz or 3,840 x 2,160 @ 30Hz (mirrored or extended), max. 4x 1,920 x 1,080 @ 60Hz, supports Eyefinity / Single Large Surface (SLS), audio input formats: 7.1 channel with a sampling rate up to 192 kHz |
| Notice | OS independent, no driver installation required |

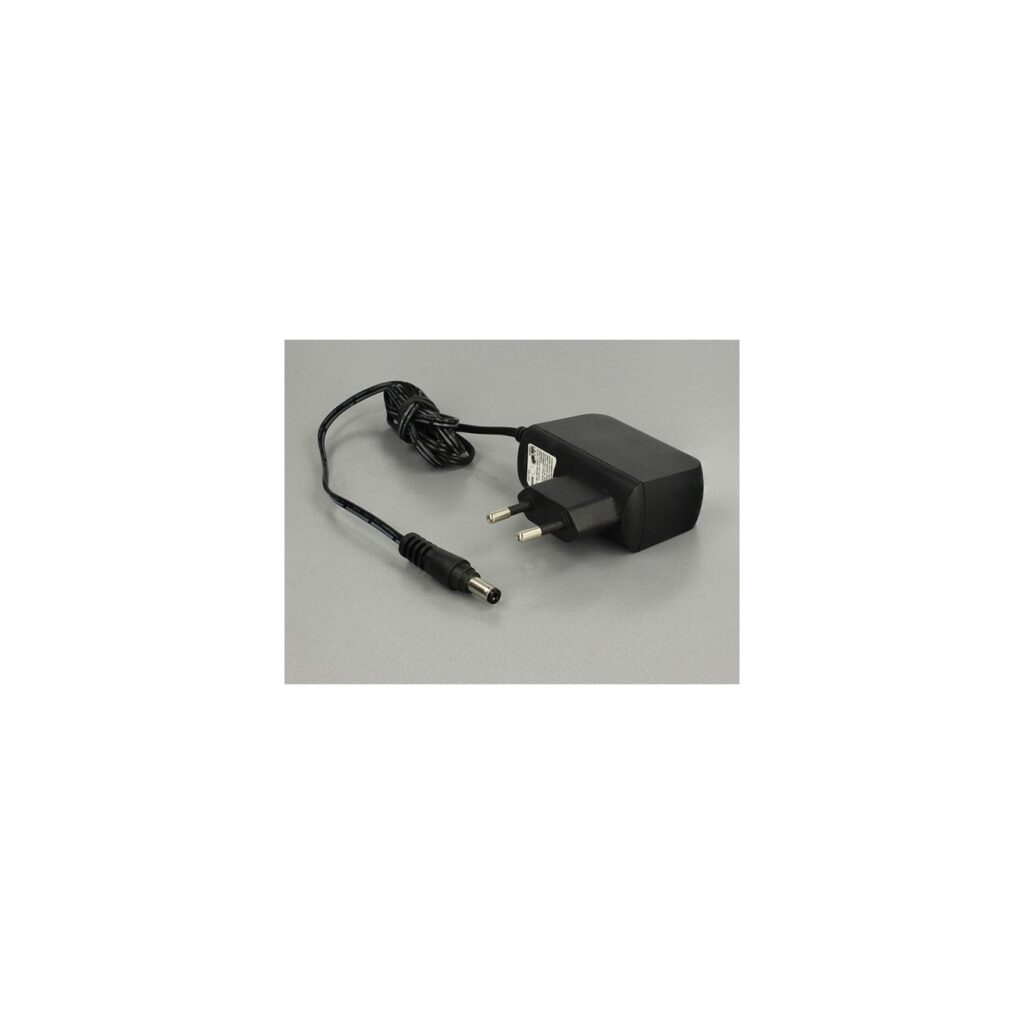

| Accessories - available | User manual, external power supply |
| Dimensions | Width: 67mm x Height: 23mm x Depth/Length: 143mm |
| Cable length | 30 cm |
