DeepCool CH690 Digital Mid-Tower PC Case White
DeepCool CH690 Digital mid-tower case with tempered glass, supports ATX/Micro-ATX/Mini-ITX, features integrated LCD display showing real-time CPU/GPU/PSU monitoring, up to 420mm radiator support, and flexible cooling configurations for gaming builds.
Available in 6–10 business days : 20 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

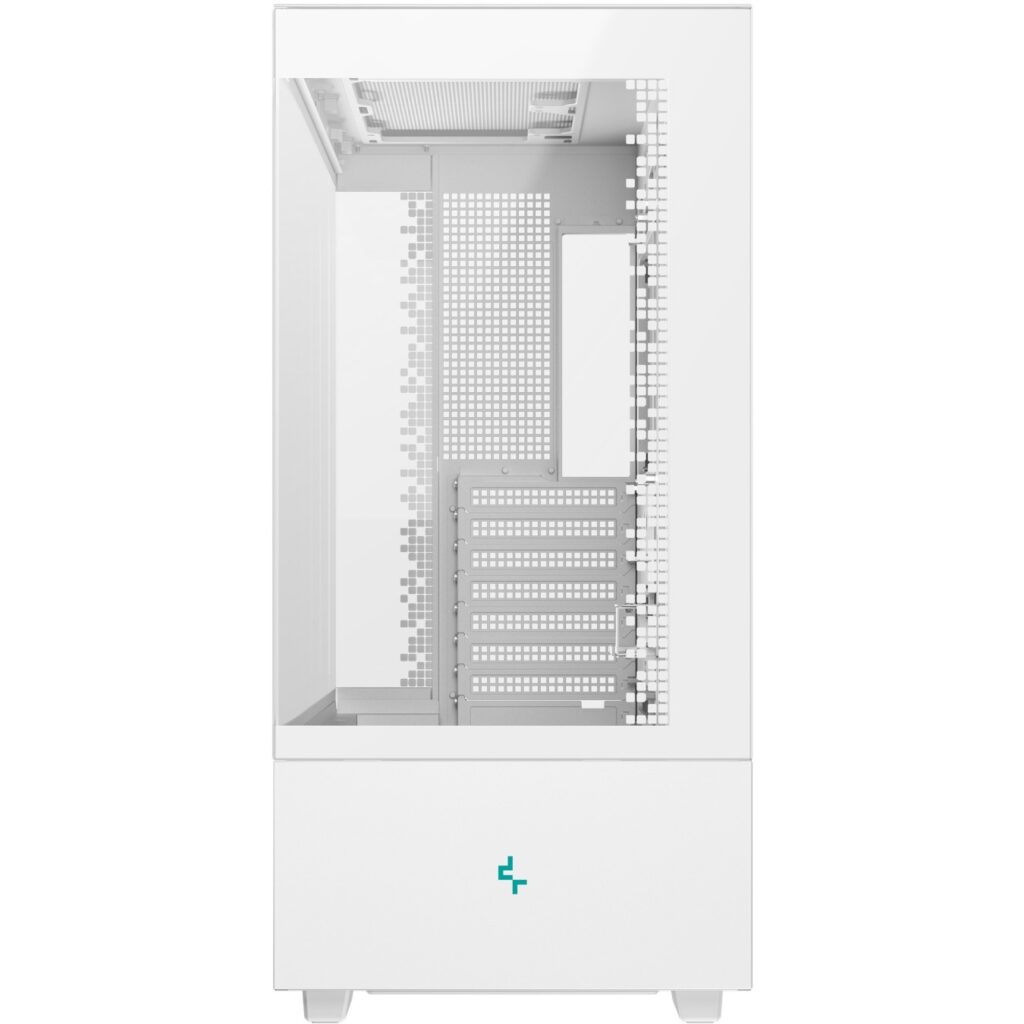

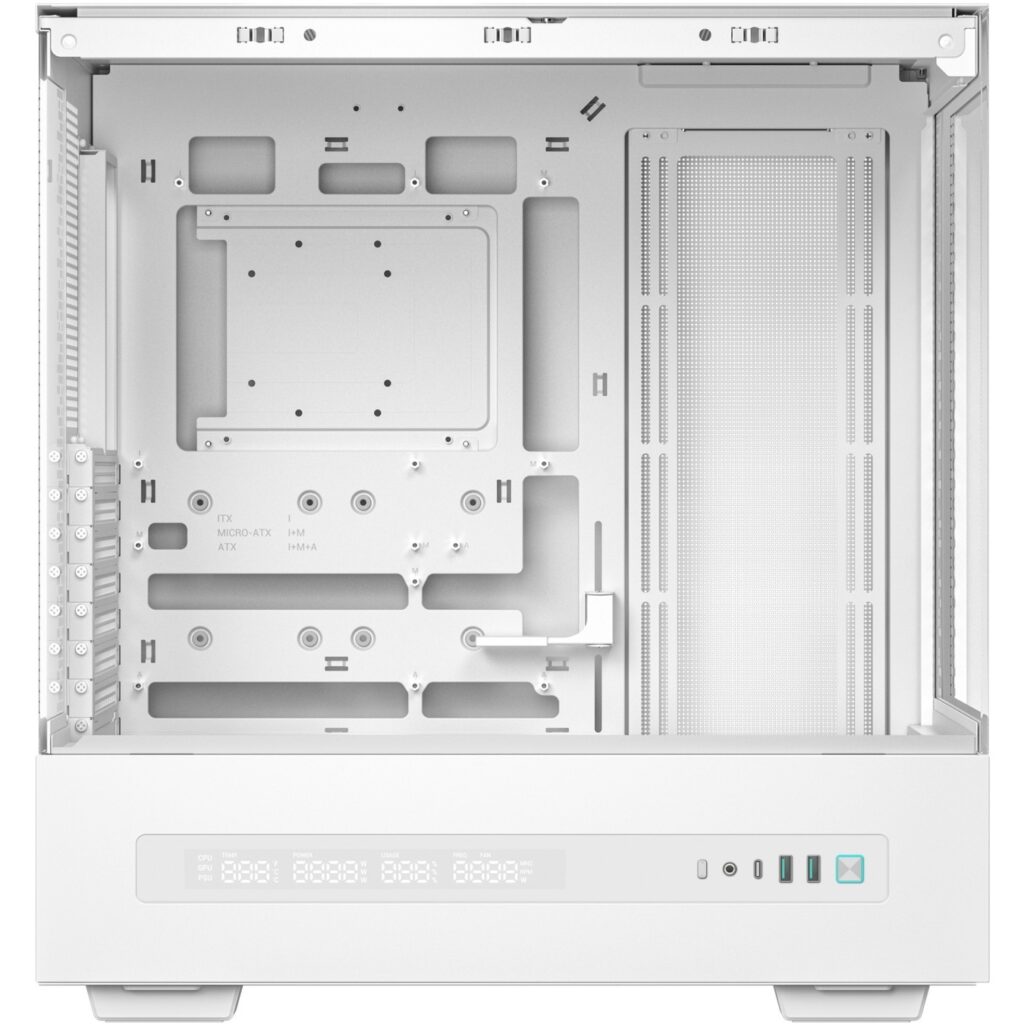

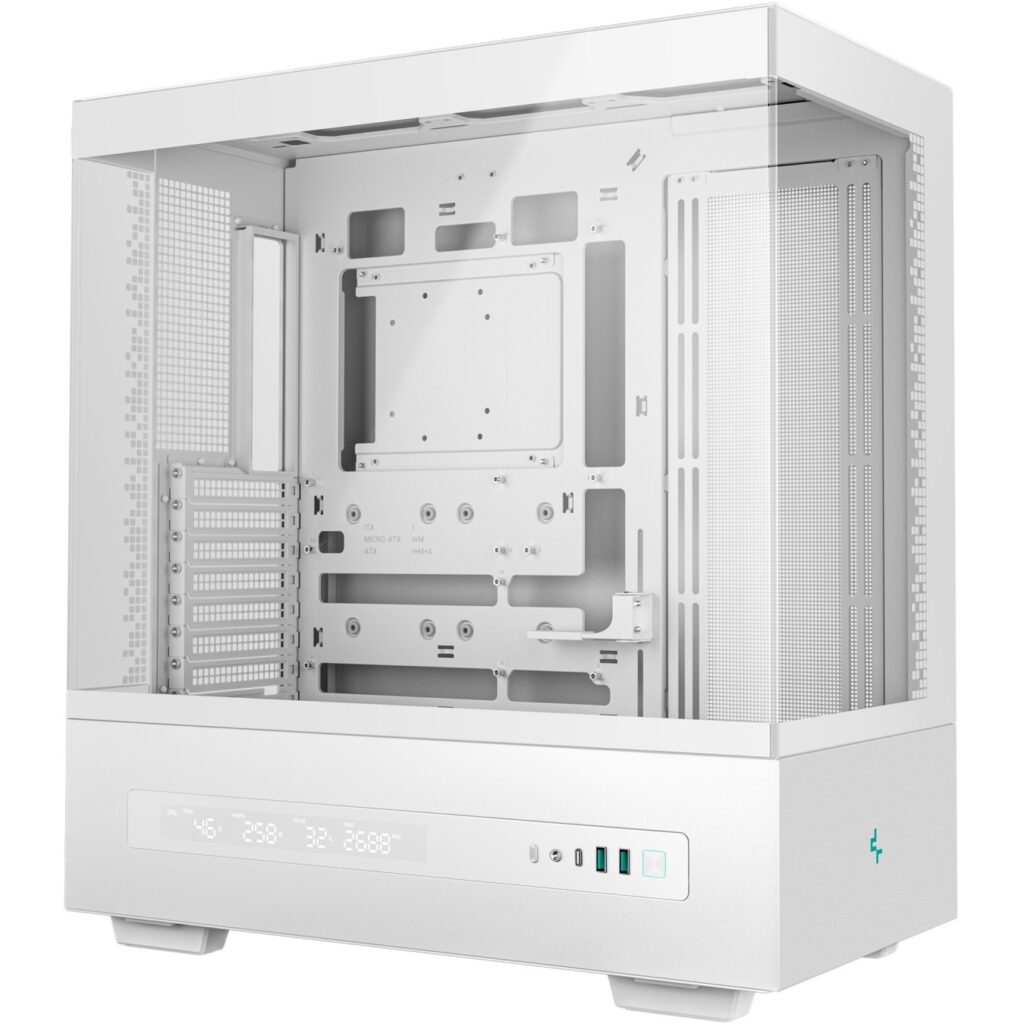

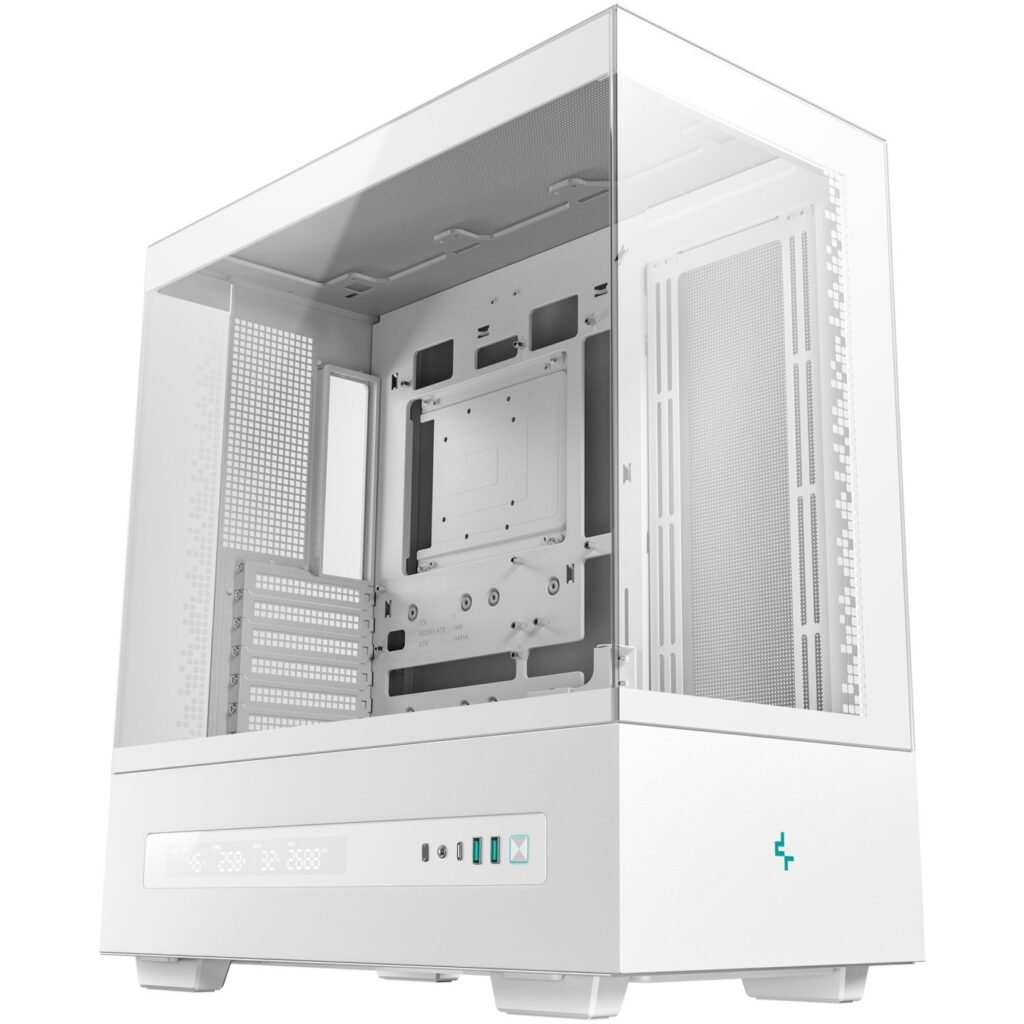

The DeepCool CH690 Digital is a feature-rich mid-tower PC case designed for builders seeking both aesthetics and functionality. Its distinctive panoramic semi-glass panel design showcases your build components, while the integrated LCD digital display on the front provides real-time monitoring of CPU temperature, GPU temperature, PSU power consumption, and fan speeds—switchable between Celsius and Fahrenheit. The case features a sleek white finish with tempered glass panels and a mesh rear panel for enhanced airflow.
Built for versatility, the CH690 Digital supports ATX, Micro-ATX, and Mini-ITX motherboards with exceptional cooling flexibility. It accommodates radiators up to 420mm on top, 280mm on the side, and 360mm in the PSU shroud, supporting various fan configurations with up to 3×140mm fans per mounting position. The case supports CPU coolers up to 182mm in height and graphics cards up to 450mm in length. Additional features include an adjustable GPU holder to prevent sagging, generous cable routing space (36.5mm behind motherboard tray), and a toolless design for easy panel removal. Storage options include one 3.5-inch drive bay and two native 2.5-inch mounts.
Front I/O connectivity includes two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and separate audio/microphone jacks. The case ships without included fans, allowing builders to customize their cooling setup. With dimensions of 240×481×516mm and an unboxed weight of 9.8kg, the CH690 Digital is engineered for high-performance gaming and workstation builds.
- Integrated LCD digital display with real-time system monitoring
- Supports up to 420mm radiators on top, 280mm side, 360mm PSU shroud
- Accommodates CPU coolers up to 182mm and GPUs up to 450mm
- Flexible fan support: up to 3×140mm per mounting position

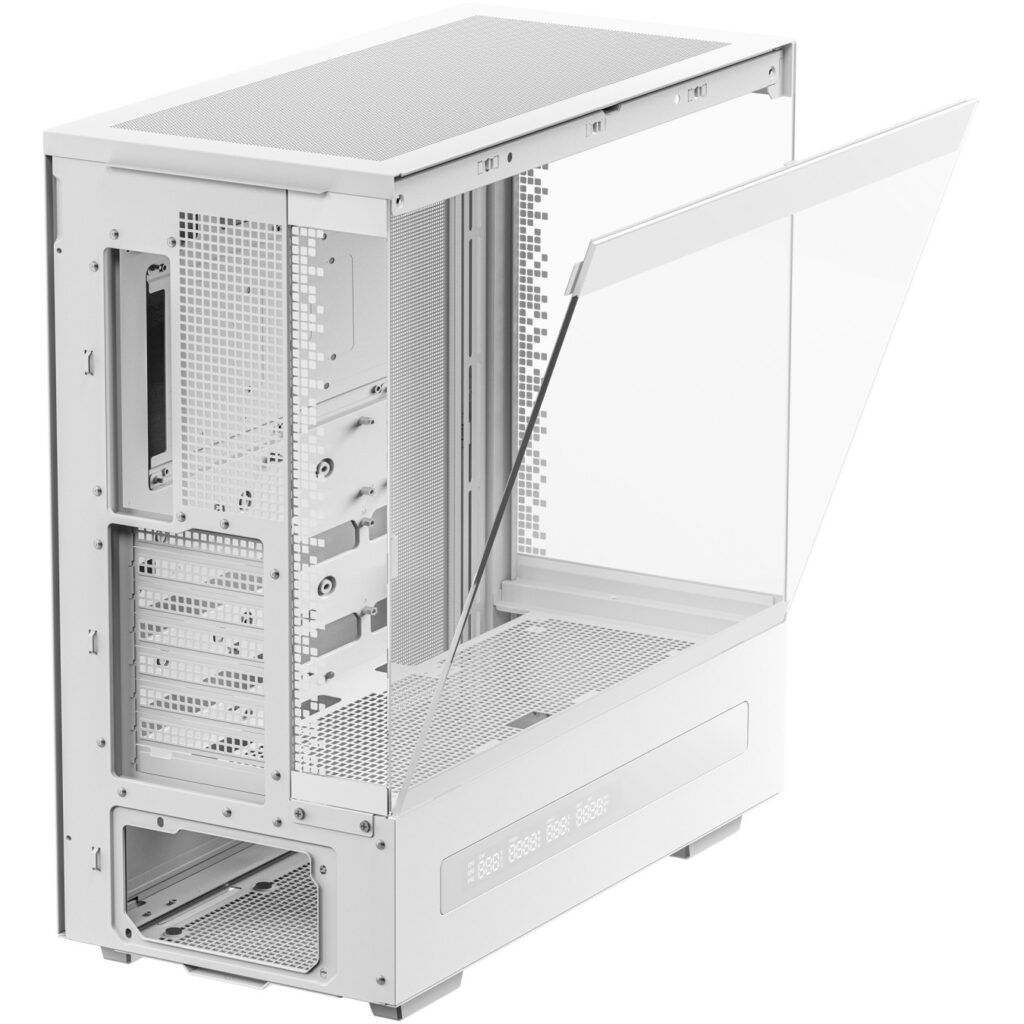

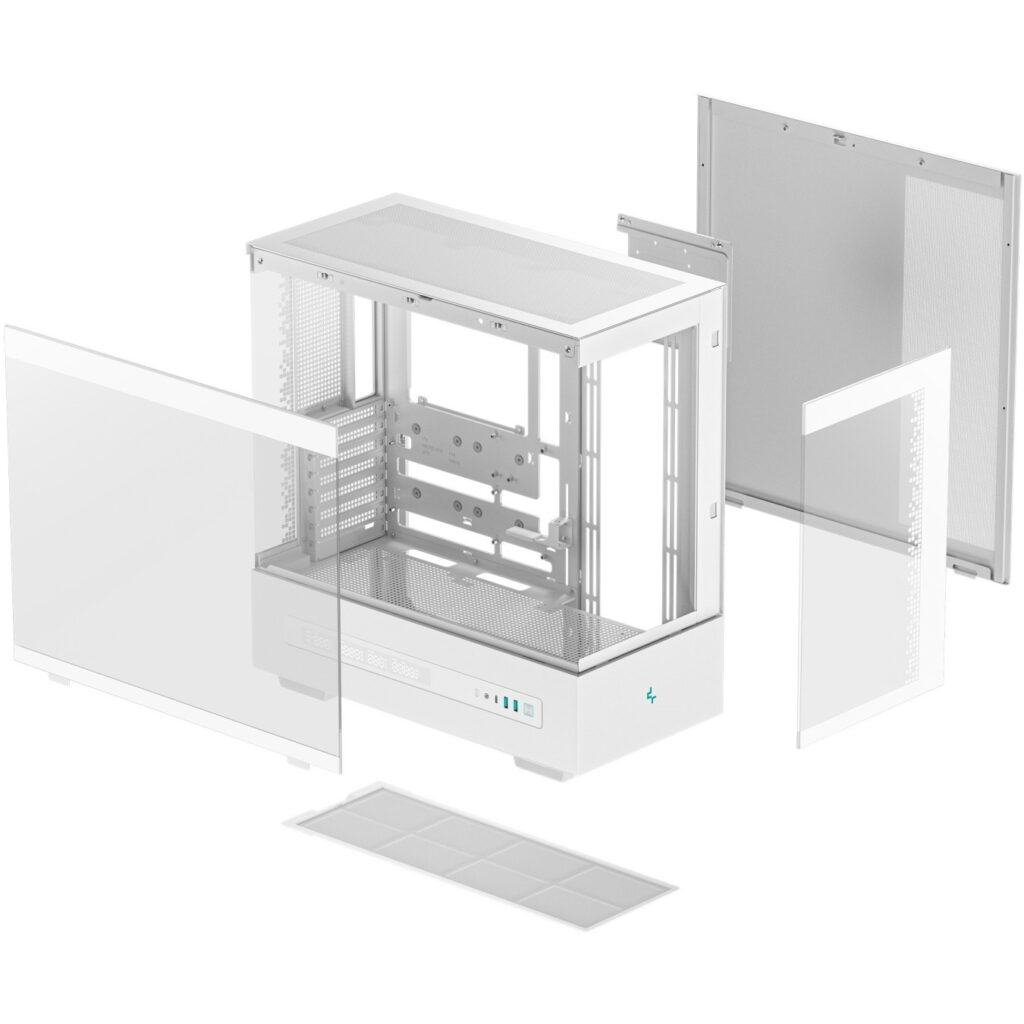

- Toolless panel design with excellent cable management
- Adjustable GPU holder to prevent sagging

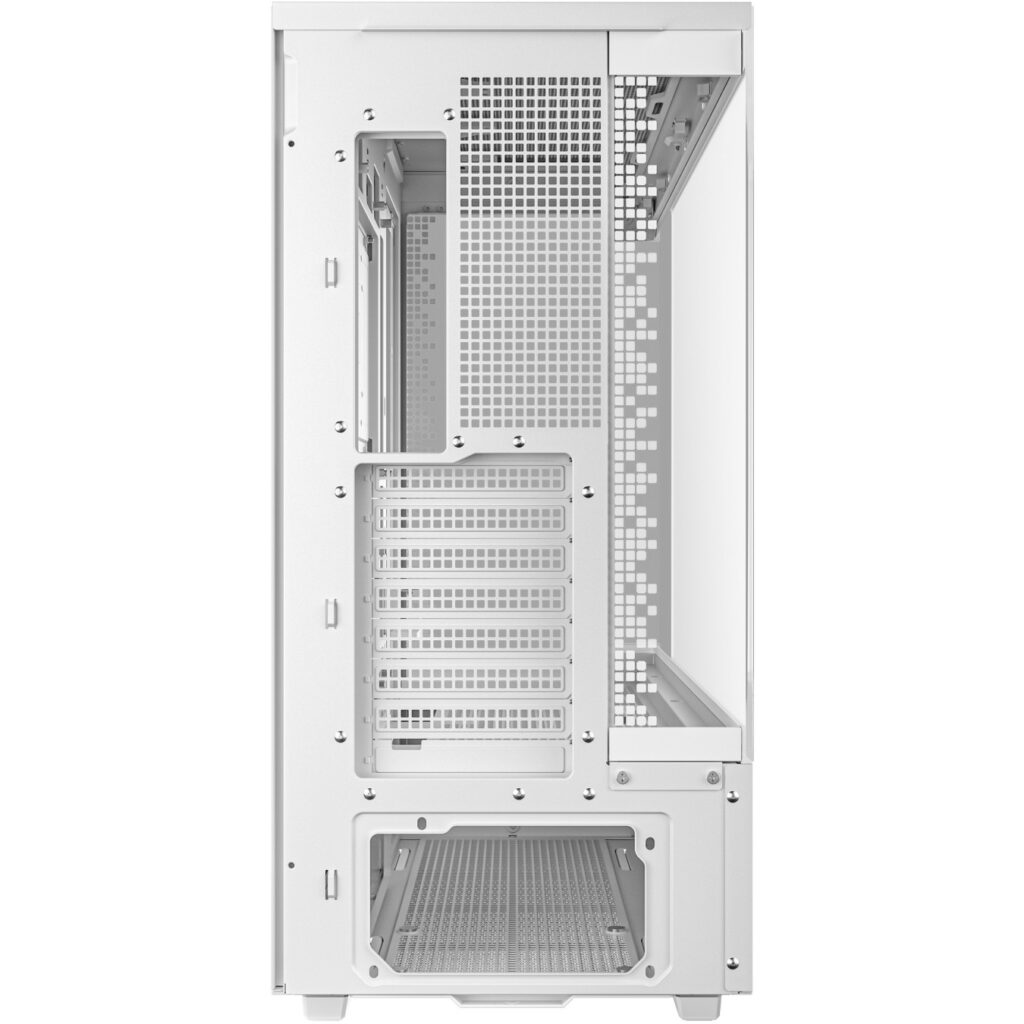

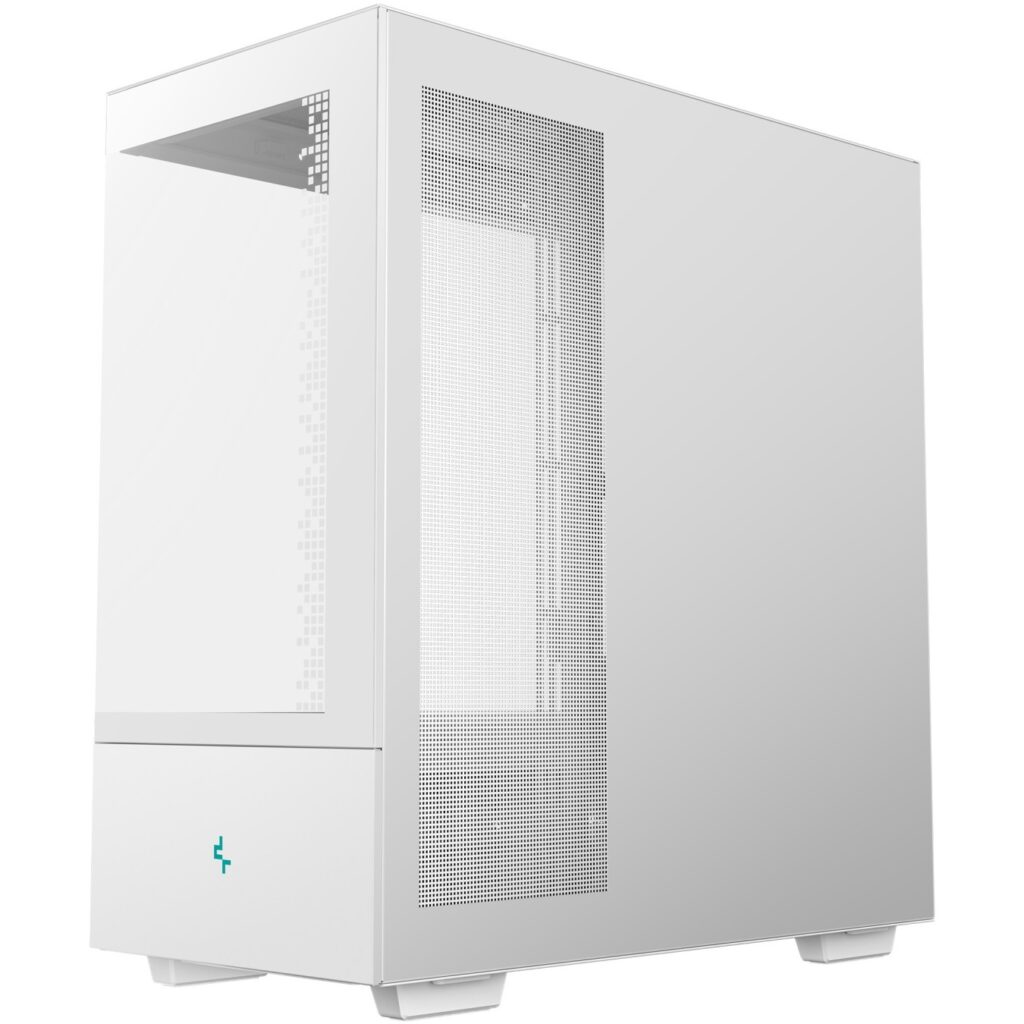

- Panoramic tempered glass and mesh rear panel design
- ATX/Micro-ATX/Mini-ITX motherboard compatibility
| Form Factor | Mid-Tower |
| Type | PC Case |
| Product Colour | White |
| Material | ABS, SPCC steel, tempered glass panels |
| Supported Motherboard Form Factors | ATX, Micro-ATX, Mini-ITX |
| Dimensions (Unboxed) | 240 × 481 × 516 mm (W × D × H) |
| Weight (Unboxed) | 9.8 kg |
| Power Supply Location | Bottom |
| Supported Power Supply Form Factors | ATX, PS/2 |
| Maximum PSU Length | 180 mm |
| Maximum GPU Length | 450 mm |
| Maximum CPU Cooler Height | 182 mm |
| Cable Routing Space | 36.5 mm behind motherboard tray |
| Storage Bays - 3.5 inch HDD | 1 |
| Storage Bays - 2.5 inch SSD | 2 native mounts (expandable with adapter) |
| Expansion Slots | 8 |
| Top Radiator Support | 120/140/240/280/360/420 mm |
| Side Radiator Support | 120/140/240/280 mm |
| PSU Shroud Radiator Support | 120/240/360 mm |
| Bottom Radiator Support | 120/240/360 mm |
| Top Fan Support | 3× 120 mm or 3× 140 mm |
| Side Fan Support | 3× 120 mm or 3× 140 mm |
| Rear Fan Support | 1× 120 mm or 1× 140 mm |
| PSU Shroud Fan Support | 3× 120 mm or 3× 140 mm |
| Included Fans | 0 (case ships without fans) |
| Front I/O - USB 3.0 Type-A | 2 ports |
| Front I/O - USB 3.2 Gen 2 Type-C | 1 port |
| Front I/O - Audio | Separate audio and microphone jacks |
| Display Type | LCD digital display |
| Display Features | Real-time monitoring of CPU temperature, GPU temperature, PSU power consumption, fan speeds; switchable between Celsius and Fahrenheit |
| Special Features | Adjustable GPU holder, panoramic semi-glass panel, mesh rear panel, toolless panel design, reverse fan setup capability, liquid cooling capable |
| Suitable For | Gaming, high-performance builds, liquid cooling systems |
