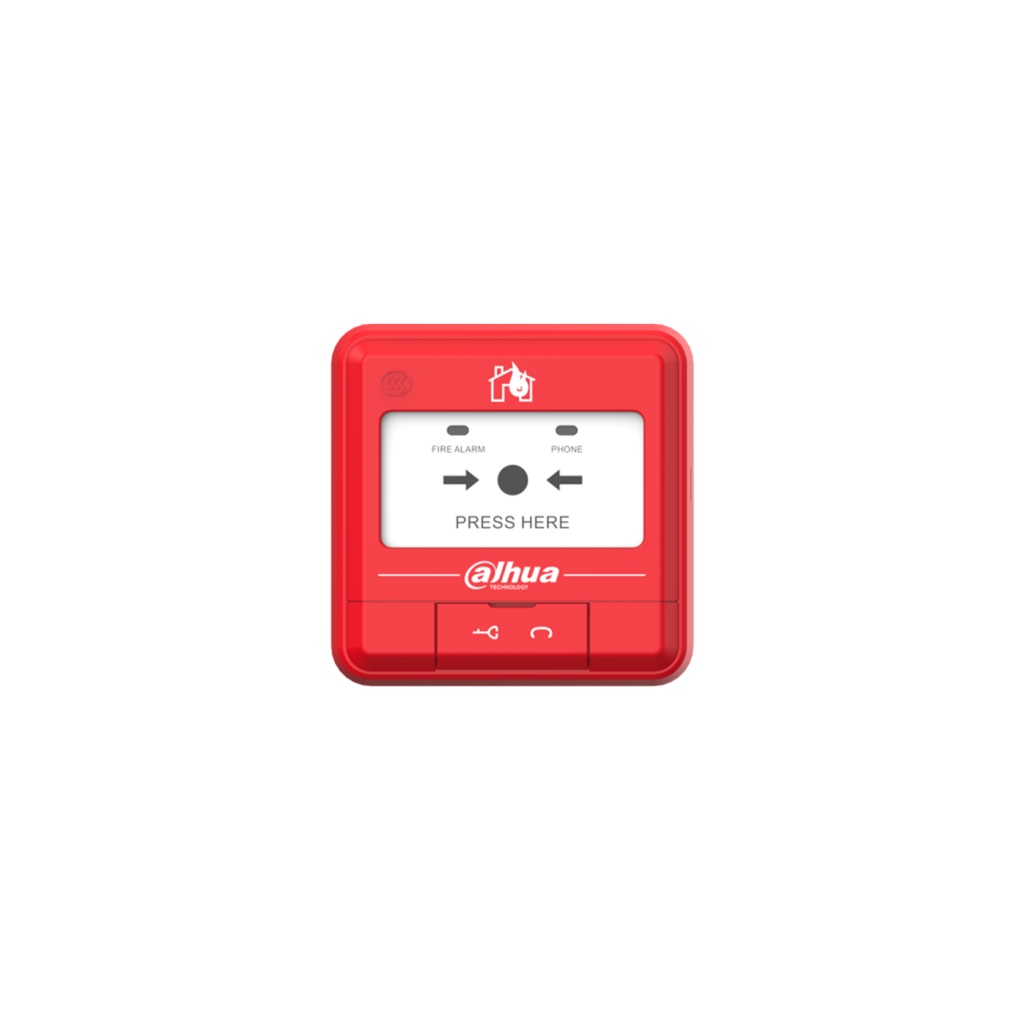

Dahua Addressable Fire Alarm Manual Call Point - HY-1200-CTXF - without Base

SKU:
Μάρκα: Dahua
Barcode:
9.50 €

Addressable manual call point with two-wire, polarity-free wiring; built-in microprocessor; ultra-low monitoring and alarm current; plug-in installation; DC24V operation.

Available in 2–3 business days : 5 τεμάχιο

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Convenient wiring: Two-wire, polarity-free
  • Reliable communication: Built-in microprocessor, performance is stable
  • Ultra-low power consumption: Ultra-low monitoring current and alarm current
  • Independent output: A pair of normally open contacts telephone system
  • Simple installation: With a plug-in structure, easy to install and construct



Electrical

  • Working Voltage : DC24V
  • Current : Monitoring current: ≤ 100μA / Alarm current: ≤ 170μA
  • Contacts Capacity : DC30V/100mA
  • Indicator : Fire Alarm / Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm / Phone / Red indicator flashes during polling and communication

Communication

  • Wiring : Two-wire, polarity-free
  • Addressing Method : Electrical encoder
  • Address Range : 1–254

Communication

Distance : 1500 m (4921.26 ft)

Environment

  • Operating Temperature : –10°C to +55°C (+14°F to +131°F)
  • Storage Temperature : –20°C to +65°C (–4°F to +149°F)
  • Operating Humidity : ≤ 95% RH (no condensation)

Construction

  • Color : Red
  • Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54″ × 3.54″ × 1.73″)
  • Weight (with base) : 136 g (0.30 lb)
  • Compliance Standard : EN54-11
