Connector DC 5.5 x 2.1 x 12.0mm socket for installation, plug
Original price was: 12.50 €.11.50 €Η τρέχουσα τιμή είναι: 11.50 €.
The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three sol…
Available in 6–10 business days : 300 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

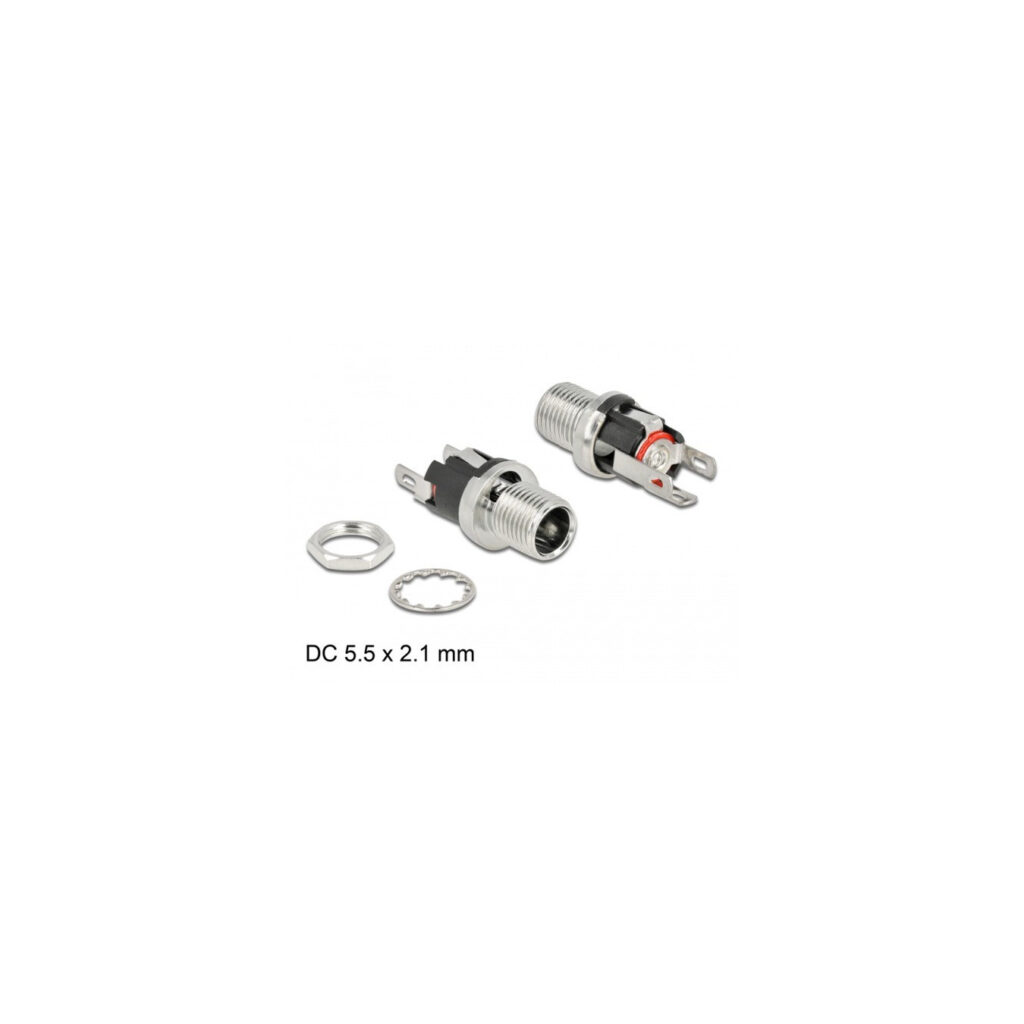

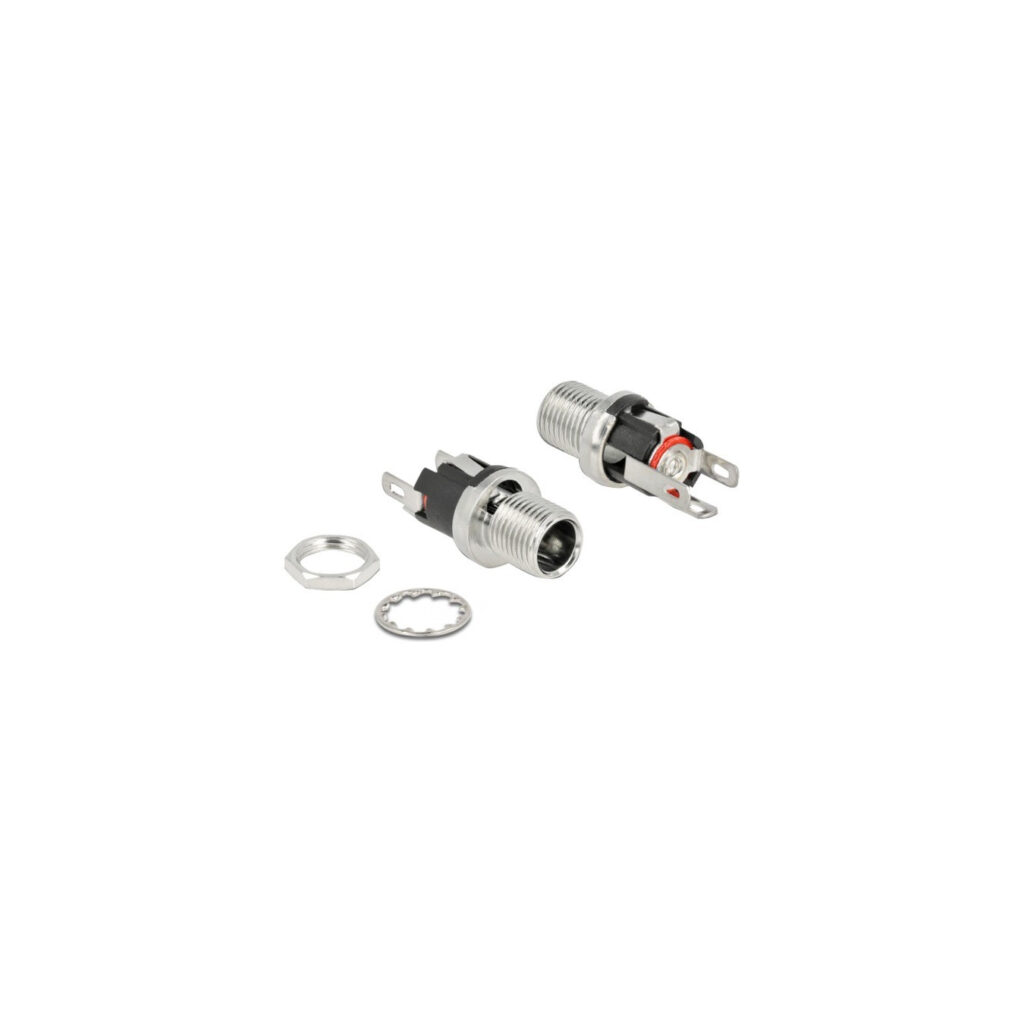

The DC built-in socket 90056 from Delock is suitable for cabling or installation in a housing or device to supply it with power. It has a DC 5.5 x 2.1 x 12.0mm socket and three solder connections on the other side.
| Typ | Plug |
| EAN | 4043619900565 |
| Manufacturer no. | 90056 |
| Manufactured in | Taiwan |
| Application example | Installation e.g. in a housing |
| Area | Power supply |
| Connection - from | 1x power supply (socket) |
| Characteristics | Adapter, extern |
| Feature | Pins nickel-plated copper |
| More information | Outside Ø approx. 5.5mm, inside Ø approx. 2.1mm, operating voltage 16V DC, current max. 3 A, plastic housing PBT, thread type M8*P0.75 |
| Notice | Installation depth approx. 15.8mm |
