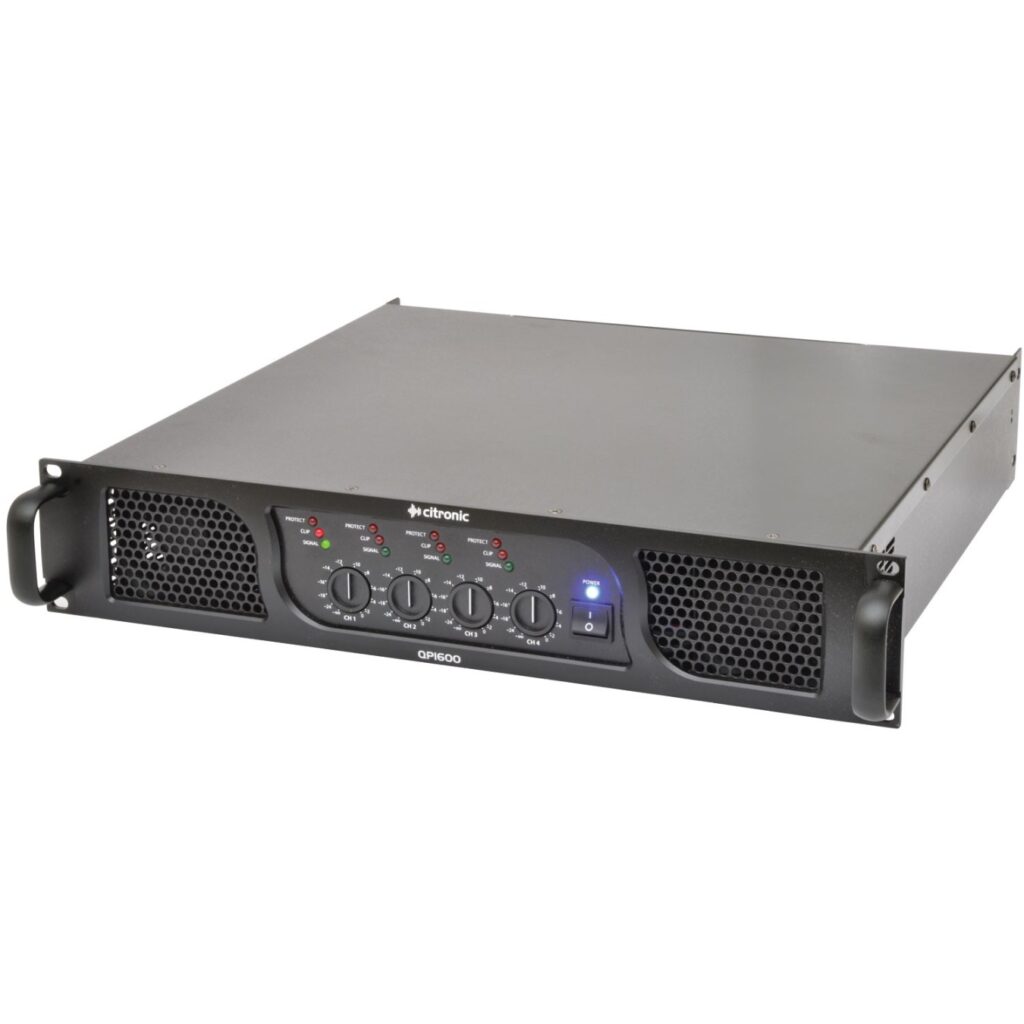

Citronic Quad Power Amplifier - QP1600 - 4x400W@2ohms Quad Power Amplifier 172.241UK
490.50 €
Quad 4-channel power amplifier with 4 independent channels and individual volume controls; balanced inputs and parallel outputs for daisy-chaining.
Available in 2–3 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Quad power amplifier with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
- Fully balanced signal path
- Stable down to 2 Ohms
- 2U rack-mountable

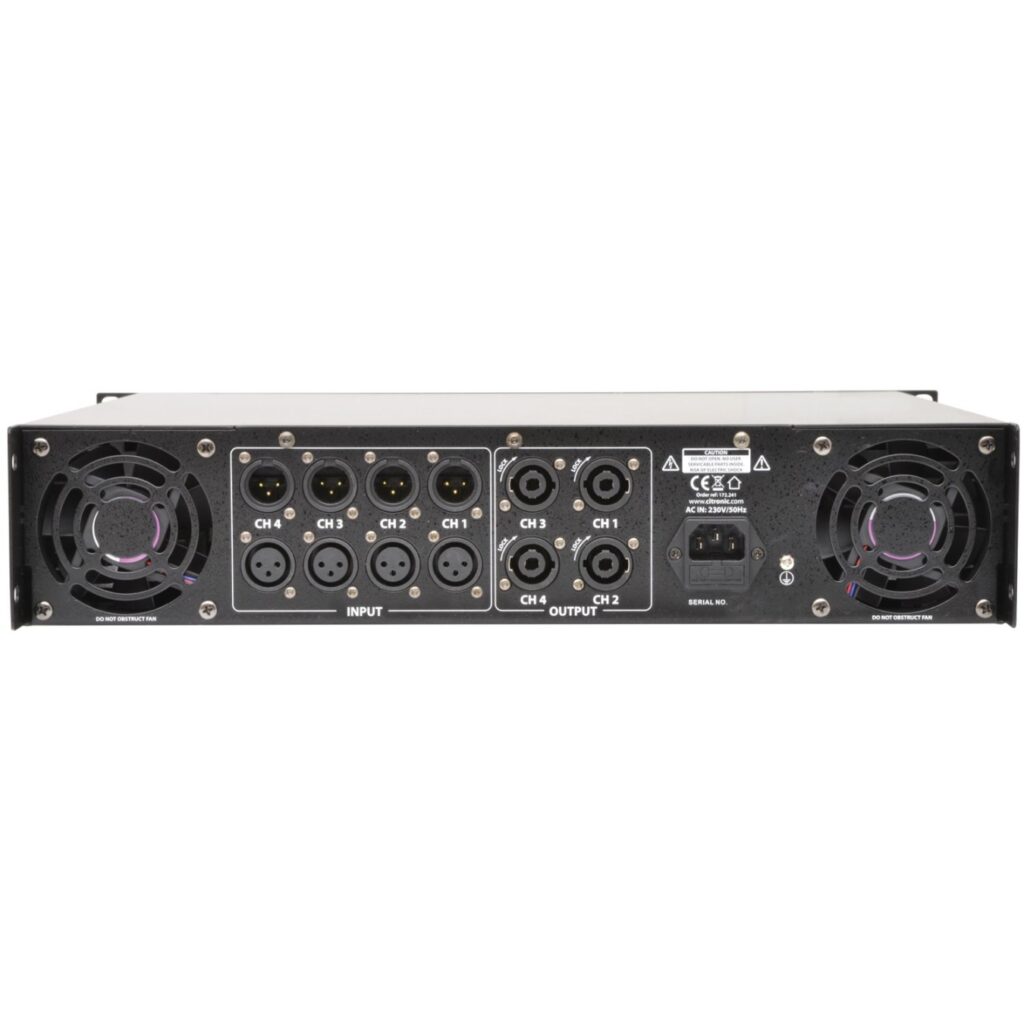

- Speaker : output s4 x SPK connectors
- Power supply 230Vac, 50Hz (IEC)
- Input : line 4 x XLRF balanced
- Output : line 4 x XLRM (parallel from inputs)
- Input impedance 20k Ohms
- Frequency response 5Hz – 50kHz
- THD 0.05%
- Slew rate 40V/usec
- S/N ratio 103dB
- Controls 4 x channel gain
- Circuit protection Short-circuit, DC, overload, soft-start
- Dimensions 483 x 439 x 88mm
- Fuse rating F8A
- Power rms @ 8 Ohms 4 x 200W
- Power rms @ 4 Ohms 4 x 300W
- Power rms @ 2 Ohms 4 x 400W
- Weight 22kg
| Channels | Quad |
| Power (8ohm) | 4 x 200 |
| Power (4ohm) | 4 x 300 |
| Power (2ohm) | 4 x 400 |
| Amplifier Class | Class A |
| 2ohm Stable | Yes |
| Warranty | 3 Years |
