Citronic 15'' Active Plywood Speaker 1800W with DSP 178.915UK - CORVA-15A - 15'' Active Plywood Speaker 1800W with DSP 178.915UK

CORVA active speaker cabinets are a milestone in the Citronic commitment to high quality sound at all levels, packing a remarkable level of output into a single heavy duty cabinet. Designed for stacking or pole mounting, these cabinets can equally be deployed at height, using the 12 x M8 flying points. Each enclosure is loaded with specially designed heavy duty drivers to deliver powerful and immediate sound pressure levels. Each powerful class-D amplifier section is DSP controlled with a menu-driven colour display for setting EQ profiles, dynamics and gain. In-depth editing is enabled via a USB interface to connect a PC and accurately adjust, test and save custom DSP settings. For larger sound reinforcement applications, CORVA active cabinets have the capability and flexibility to provide big sound on demand.

• Specially developed heavy duty driver components
• Inbuilt high power class-D amplifiers

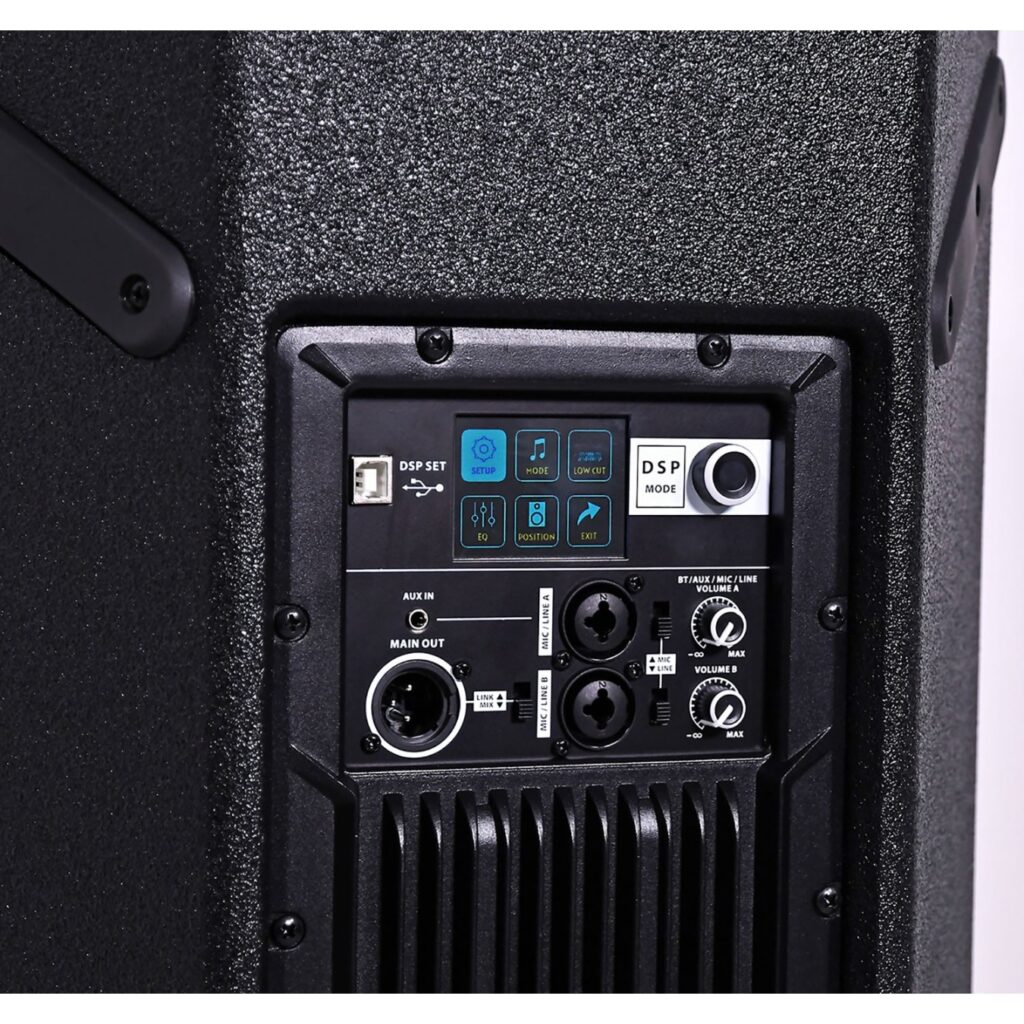

• Menu driven DSP with colour display and USB-PC interface
• Sturdy plywood enclosure with polyurea finish

In the Box

• CORVA series active PA cabinet
• Twist-lock mains power lead

• Output power : max. : 1800W
• Output power : rms : 900W
• Amplifier : construction : Class-D, DSP controlled
• Impedance : 8 ohms (main driver and HF driver)
• Main driver : 380mmØ (15″) with 100mm voice coil
• HF driver : 75mmØ (3″) Ti compression driver
• SPL max. : 132dB
• Sensitivity @ 1W/1m : 100dB
• Frequency response : 45Hz – 20kHz
• Fuse rating : T10A
• Power supply : 100-240Vac, 50/60Hz (Powercon)
• Inputs : 2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm)
• Line output : XLR
• Flying points : 12 x M8 : Weight : 33.0kg
• Dimensions : 715 x 440 x 410mm
