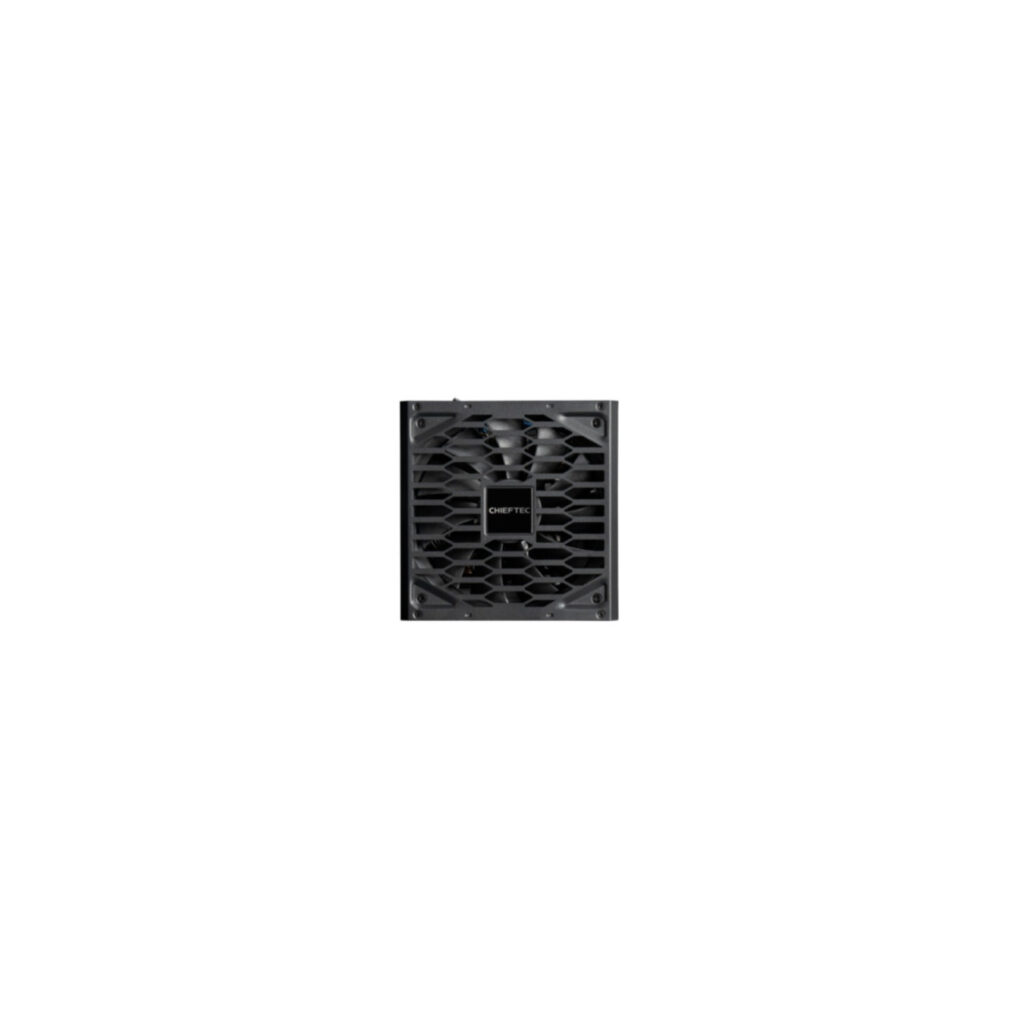

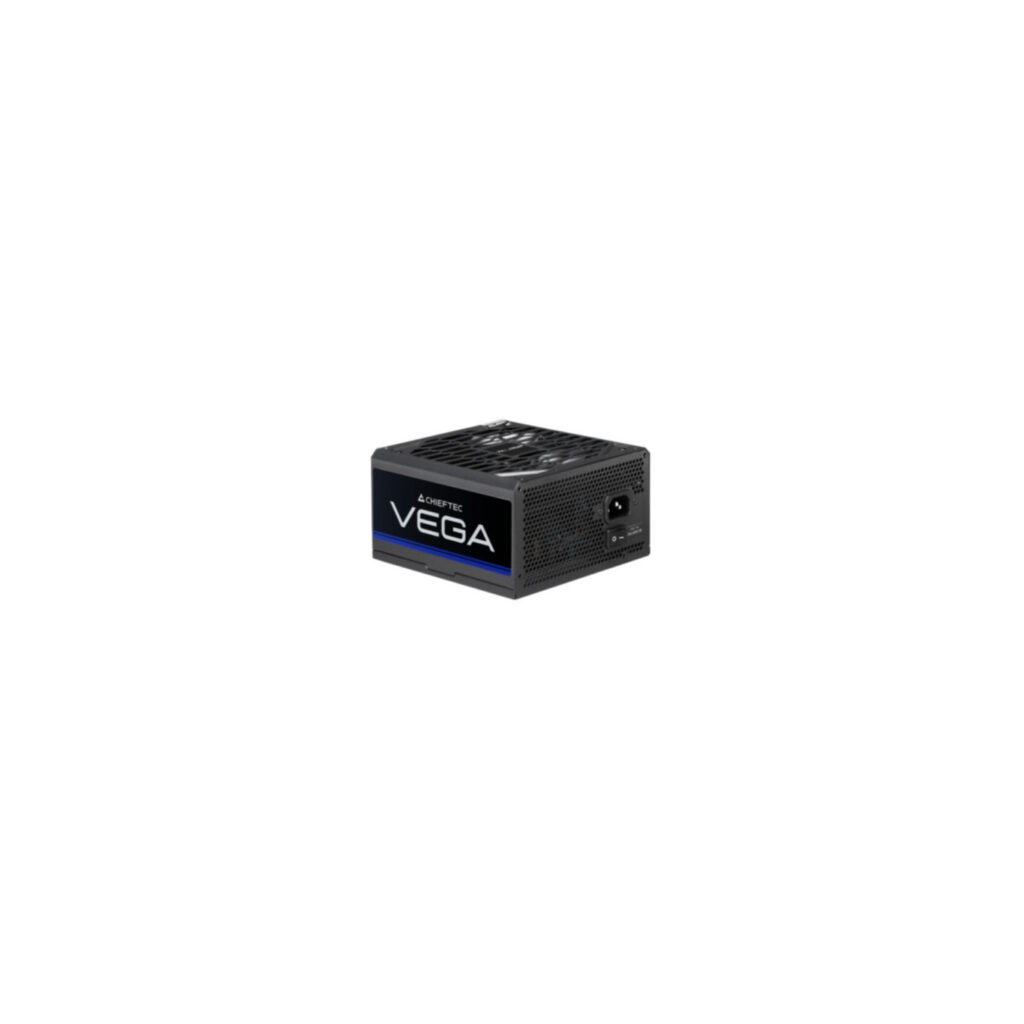

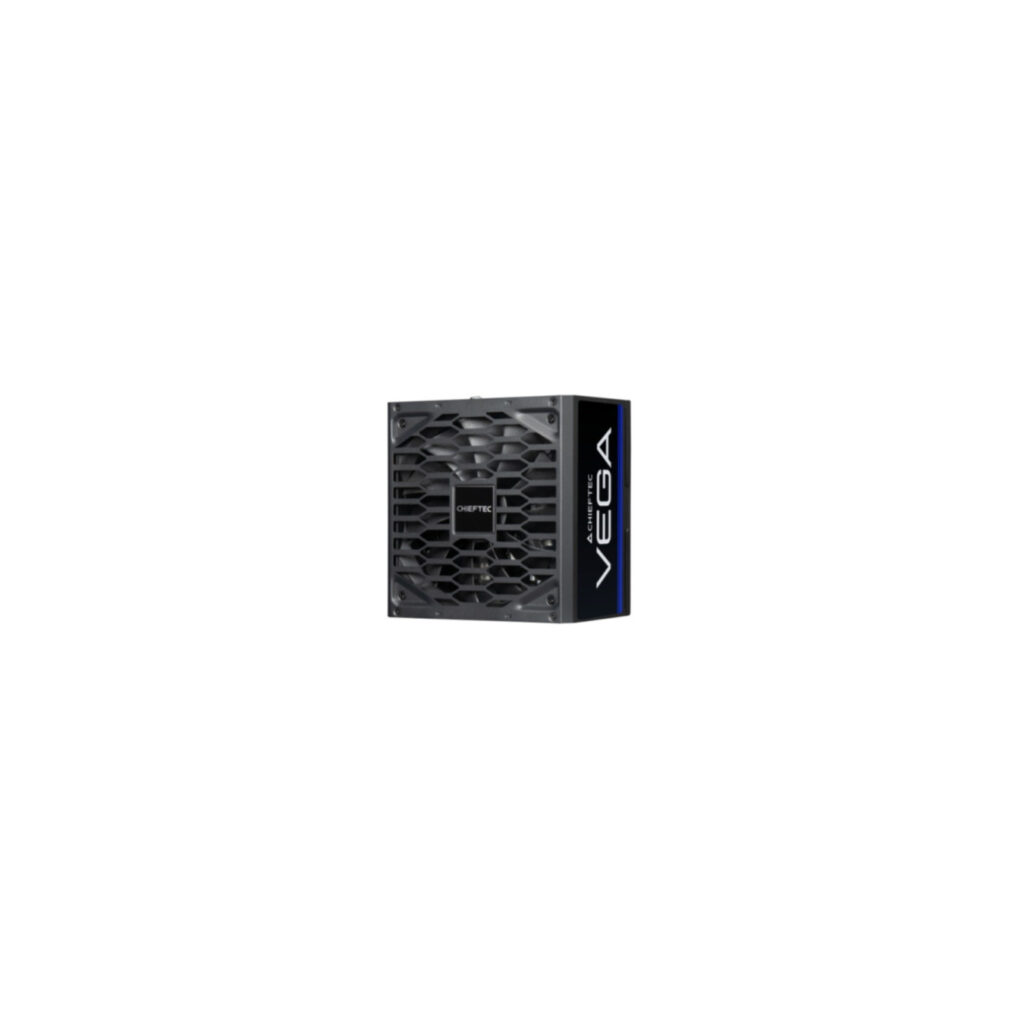

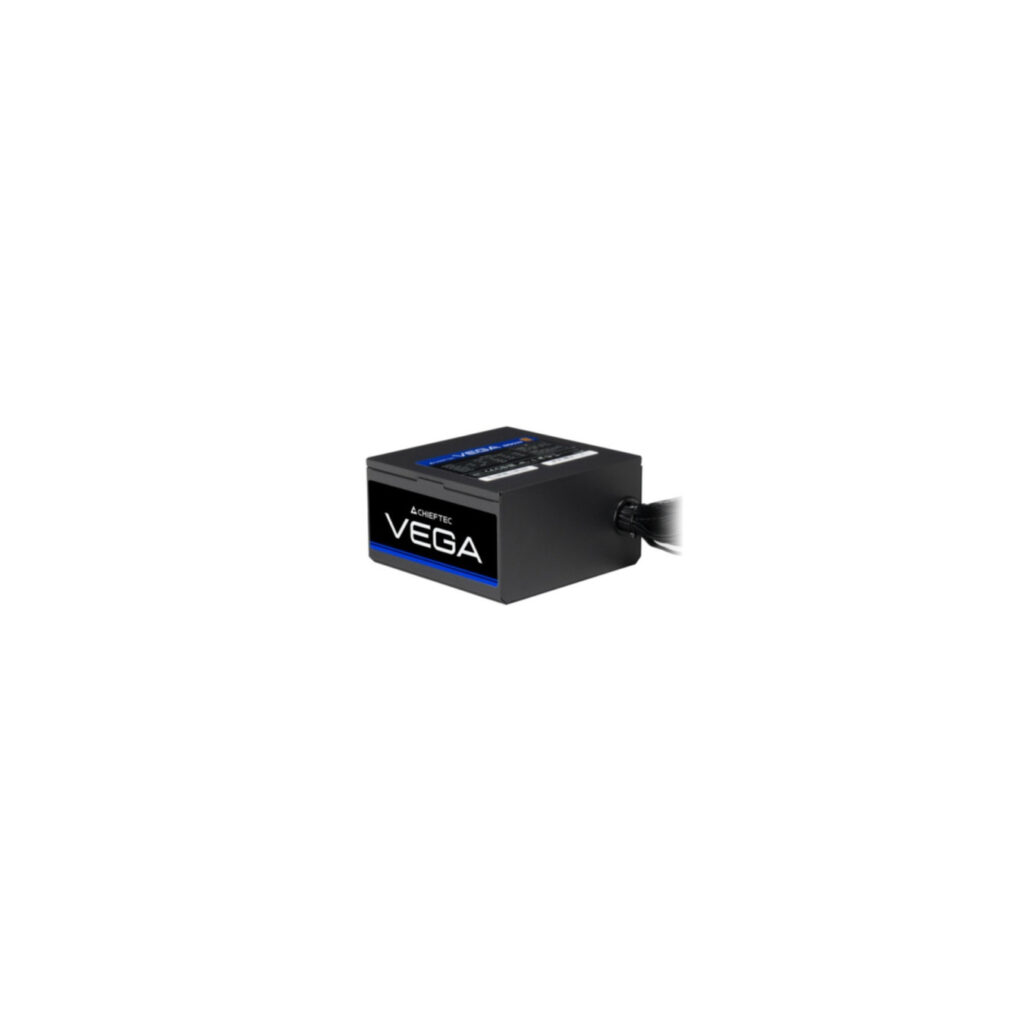

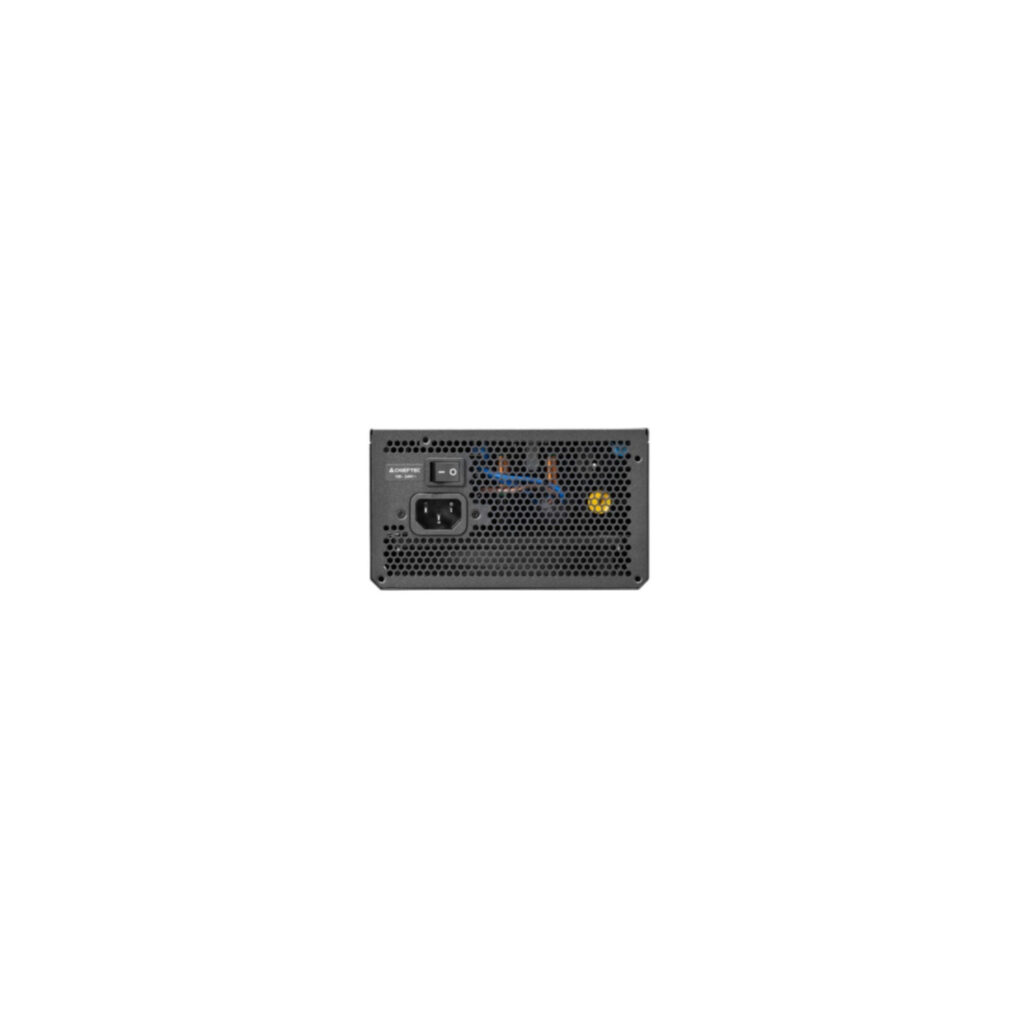

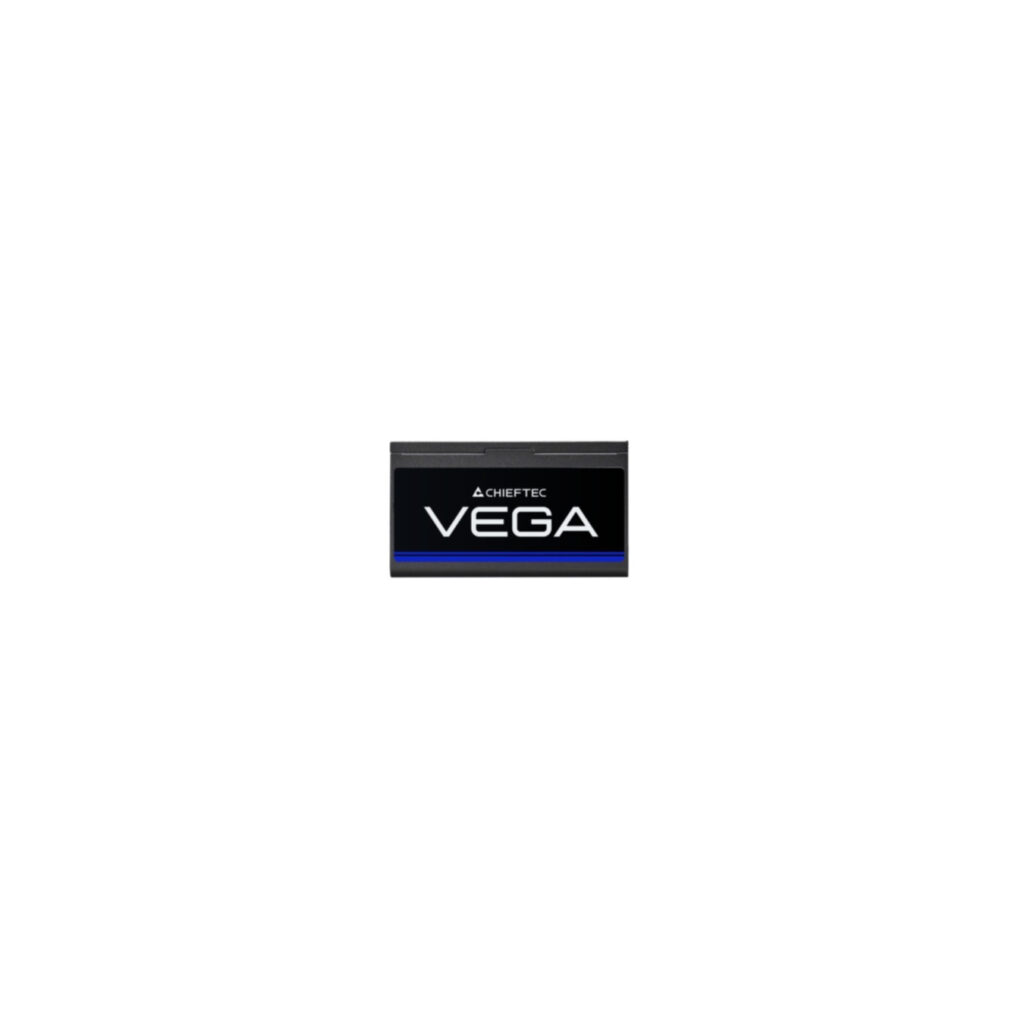

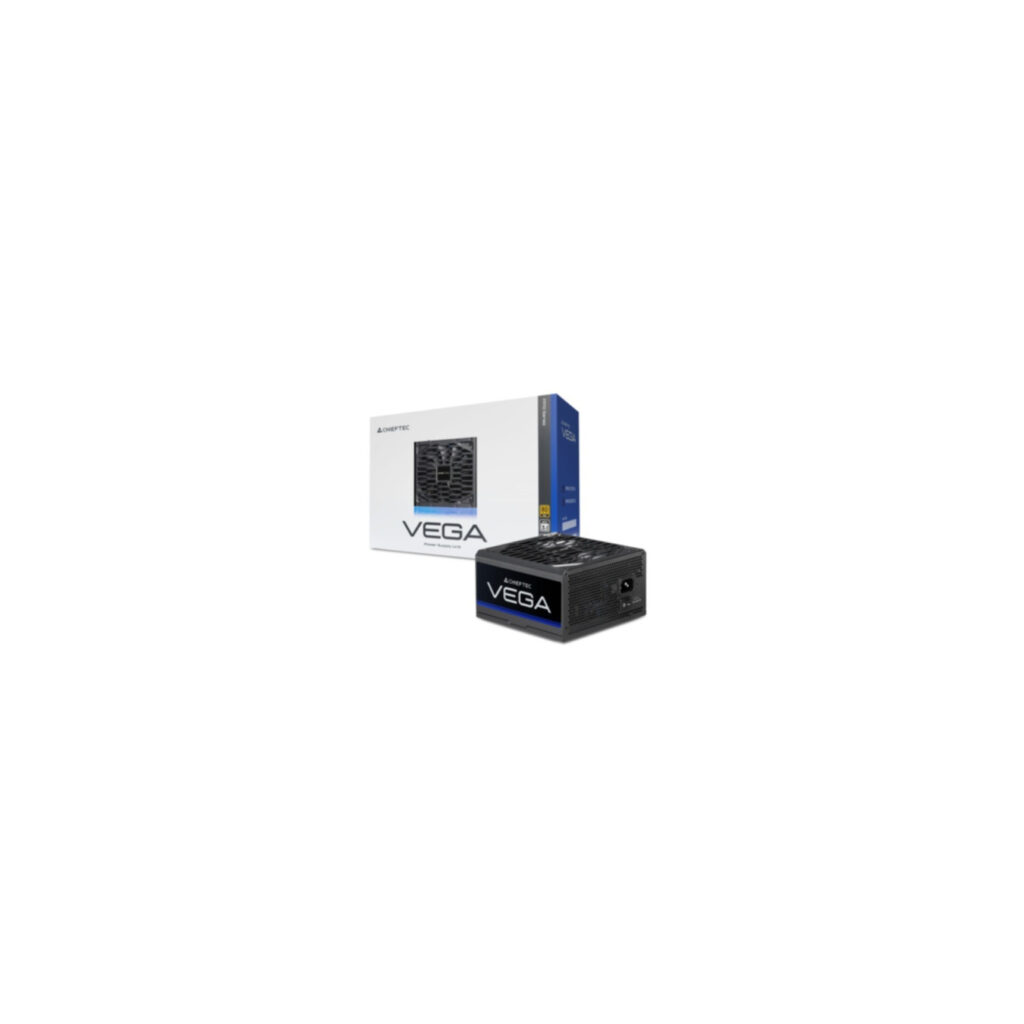

Chieftec VEGA PPG-750-S 750W 80+ Gold ATX 3.1 Non-Modular
750W ATX 3.1 PSU with 80 PLUS Gold efficiency, non-modular cables, 135mm FDB fan. PCIe Gen5 ready (1×12+4-pin, 4×6+2-pin). LLC topology for stability. Ideal for gaming PCs.
Available in 4–6 business days : 19 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec VEGA Series PPG-750-S is a 750W power supply compliant with Intel ATX 12V 3.1 and PCIe Gen5 standards, featuring 80 PLUS Gold certification for up to 92% efficiency. It uses an LLC Half-Bridge converter with DC-to-DC technology for stable power delivery and reduced losses.
Equipped with extra-long non-modular black cables, a 135mm FDB silent fan for optimal cooling and low noise, and comprehensive protections (OVP, UVP, OCP, SCP, OTP). Includes 1x 12+4-pin PCIe (600mm), 4x 6+2-pin PCIe, 1x 4+4-pin EPS, 6x SATA, 3x Molex connectors.
- ATX 3.1 & PCIe Gen5 compliant
- 80 PLUS Gold efficiency
- 135mm FDB fan
- Non-modular design
- Dimensions: 150x150x86mm
- Weight: 1.96kg (packaged 2.46kg)
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 400 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Illumination | No |
| Certification | 80PLUS Gold |
| Weight | 1.96 kg |
| Package weight | 2.46 kg |
| Dimensions (LxWxH) | 150 x 150 x 86 mm |
