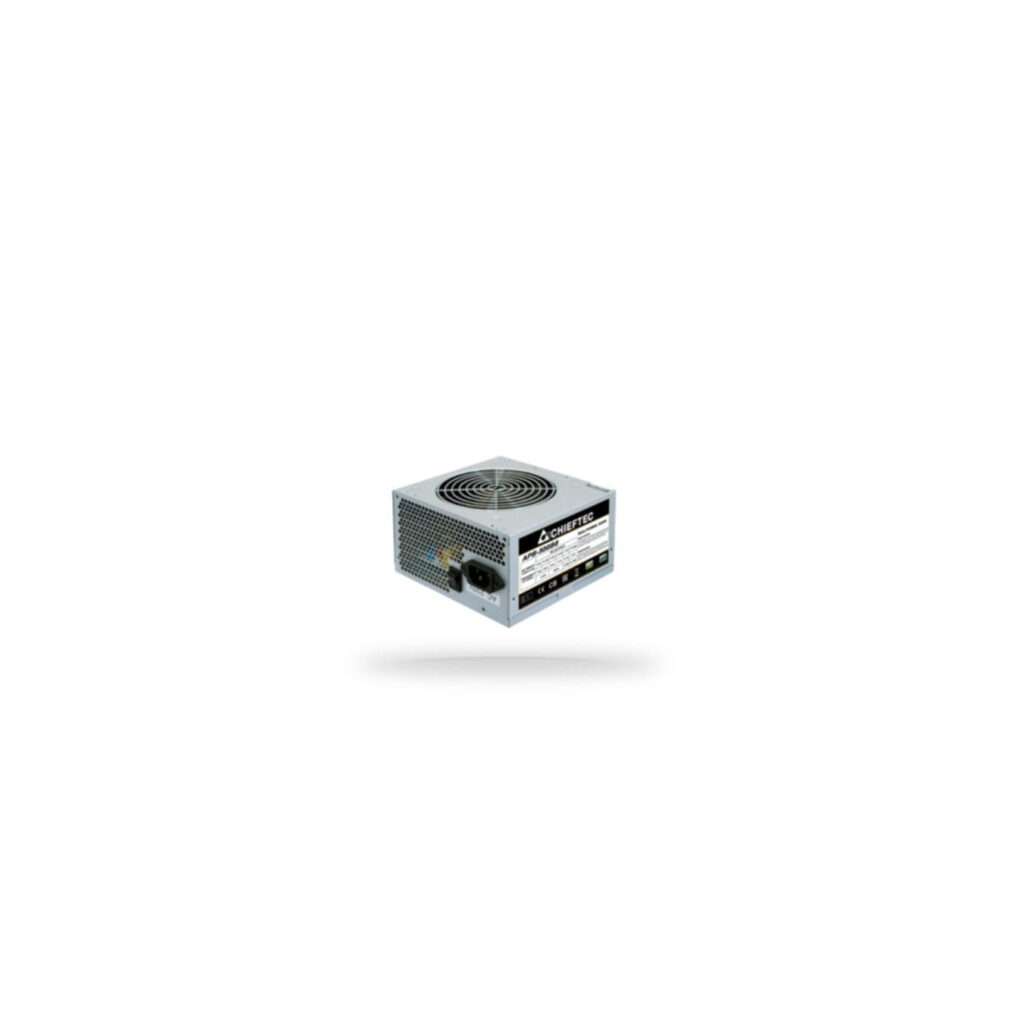

Chieftec Value Series APB-500B8 - 500W ATX 2.3 Non-Modular PSU, Silver, 80 PLUS
500W Chieftec APB-500B8 ATX 2.3 non-modular PSU, 80 PLUS White (230V EU, 80% eff.), 120mm fan, 20+4 ATX, 1x PCIe 6+2 pin, 3x SATA, 2x Molex — Silver
Available in 4–6 business days : 100 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec APB-500B8 from the VALUE SERIES delivers reliable 500W power with 80 PLUS White efficiency (230V EU) at a competitive price. It features long native cables, a silent 120mm fan with thermal control, and essential connectors for modern PCs.
Equipped with active PFC (>0.9 power factor), it provides stable output across single +12V rail (456W combined) and comprehensive protections including OVP, OPP, SCP, UVP, SIP, and AFC. Ideal for budget builds needing real power without noise or compromise.
Certified CE, CB, TÜV, EAC, RoHS; ATX 2.3 compliant with 24-month warranty.
- Total Power: 500W
- Efficiency: 80 PLUS White
- Connectors: 20+4 pin ATX, 1x PCIe 6+2, 3x SATA, 2x Molex, 1x Floppy
- Dimensions (unit): 140 x 150 x 87 mm
- Cooling: 120mm fan
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Power factor | >0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V & +5V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 17 A |
| Max output current (+12V) | 38 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80 PLUS White (230V EU) |
| Power protection features | AFC, OPP, OVP, SCP, SIP, UVP |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy disk drive connector | Yes |
| EPS power connector (8-pin) | No |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS White |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Warranty | 24 Months |
| Compliance certificates | RoHS, CE, CB, TÜV, EAC |
