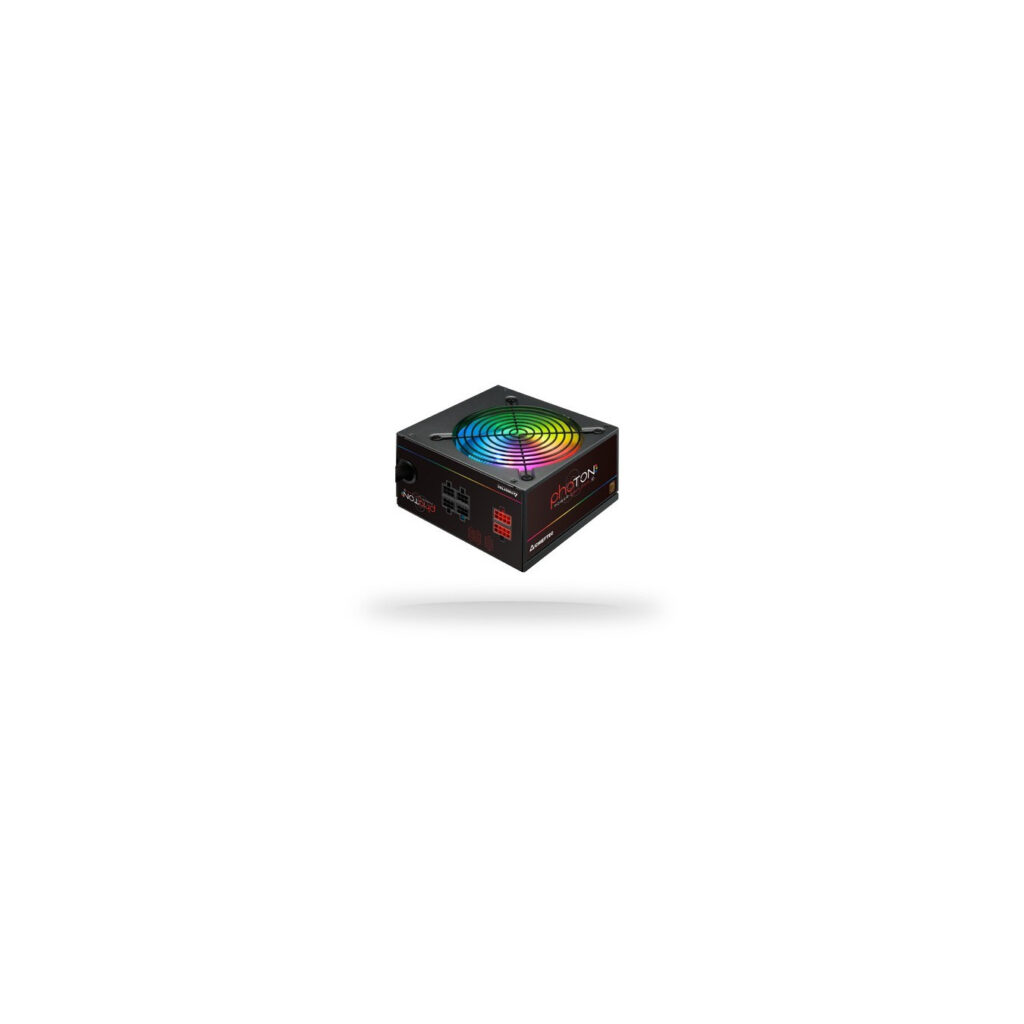

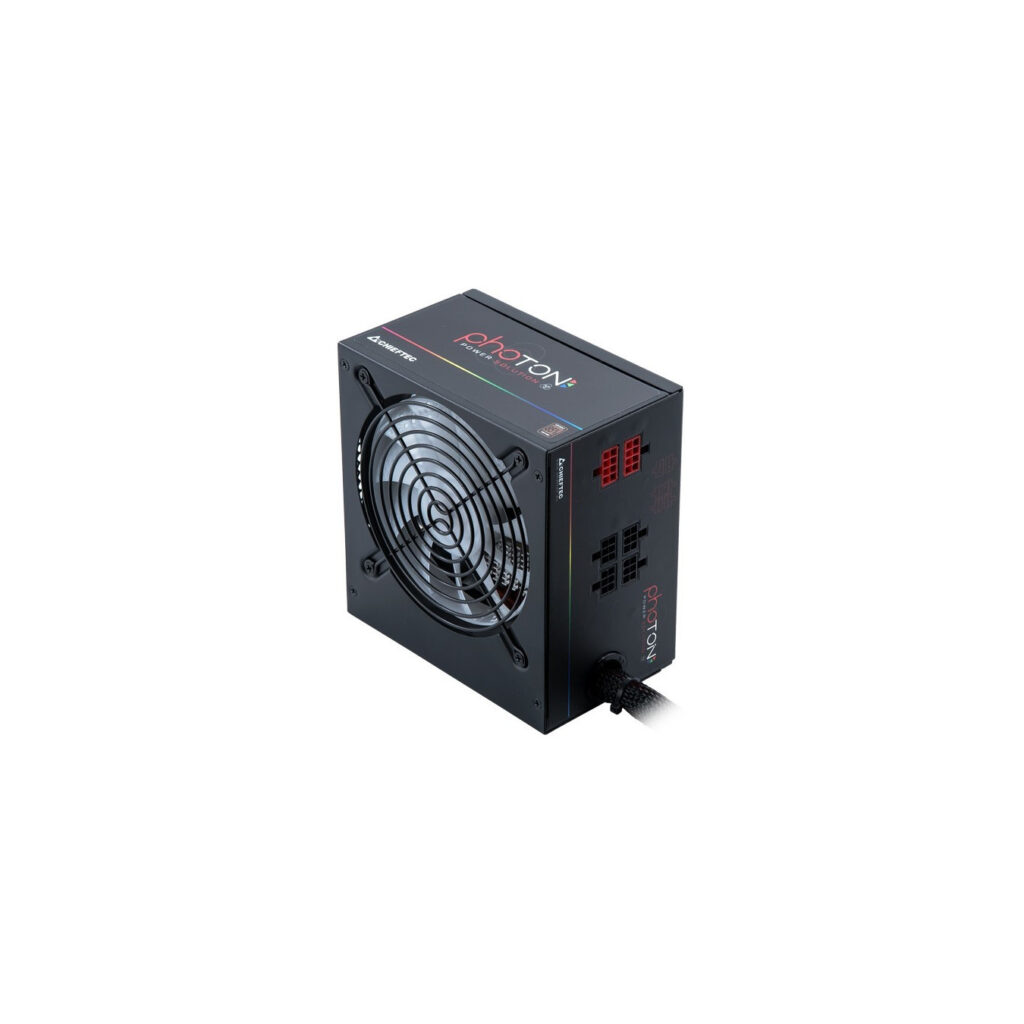

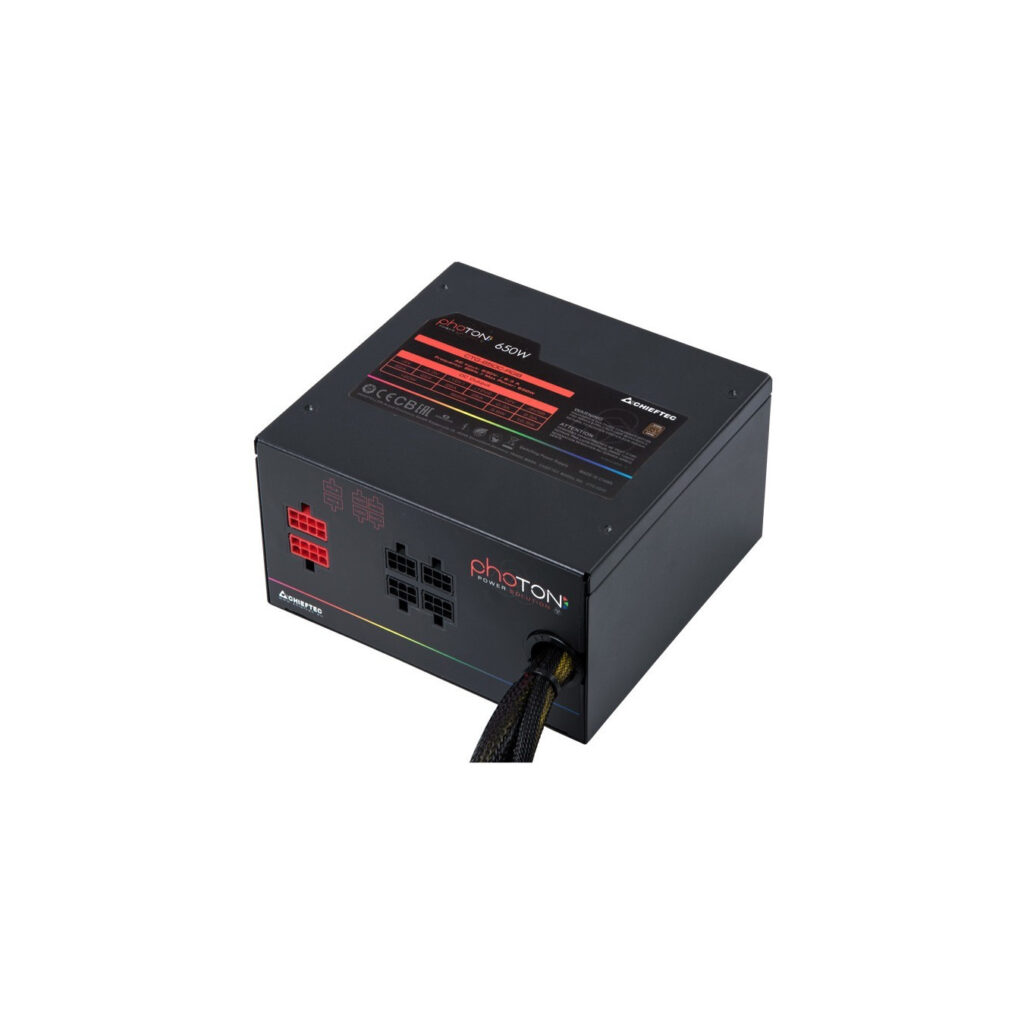

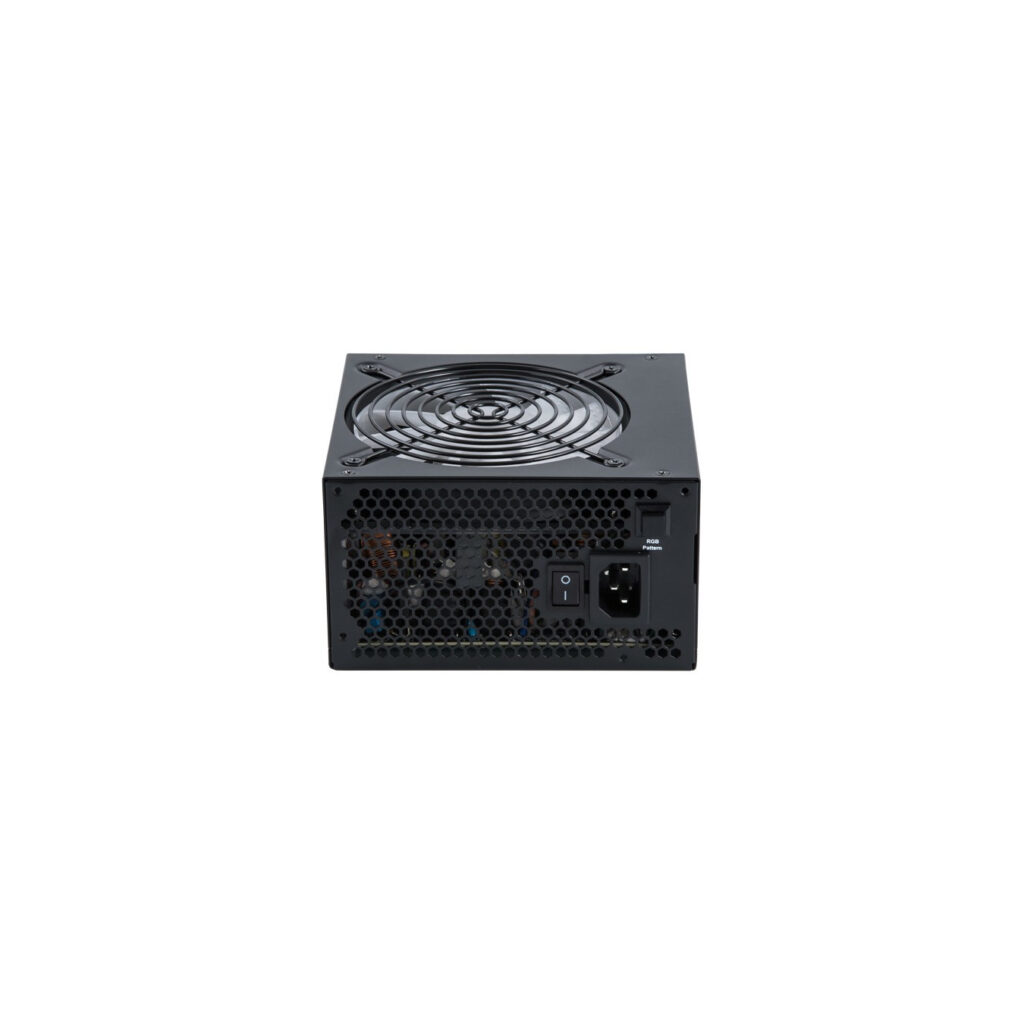

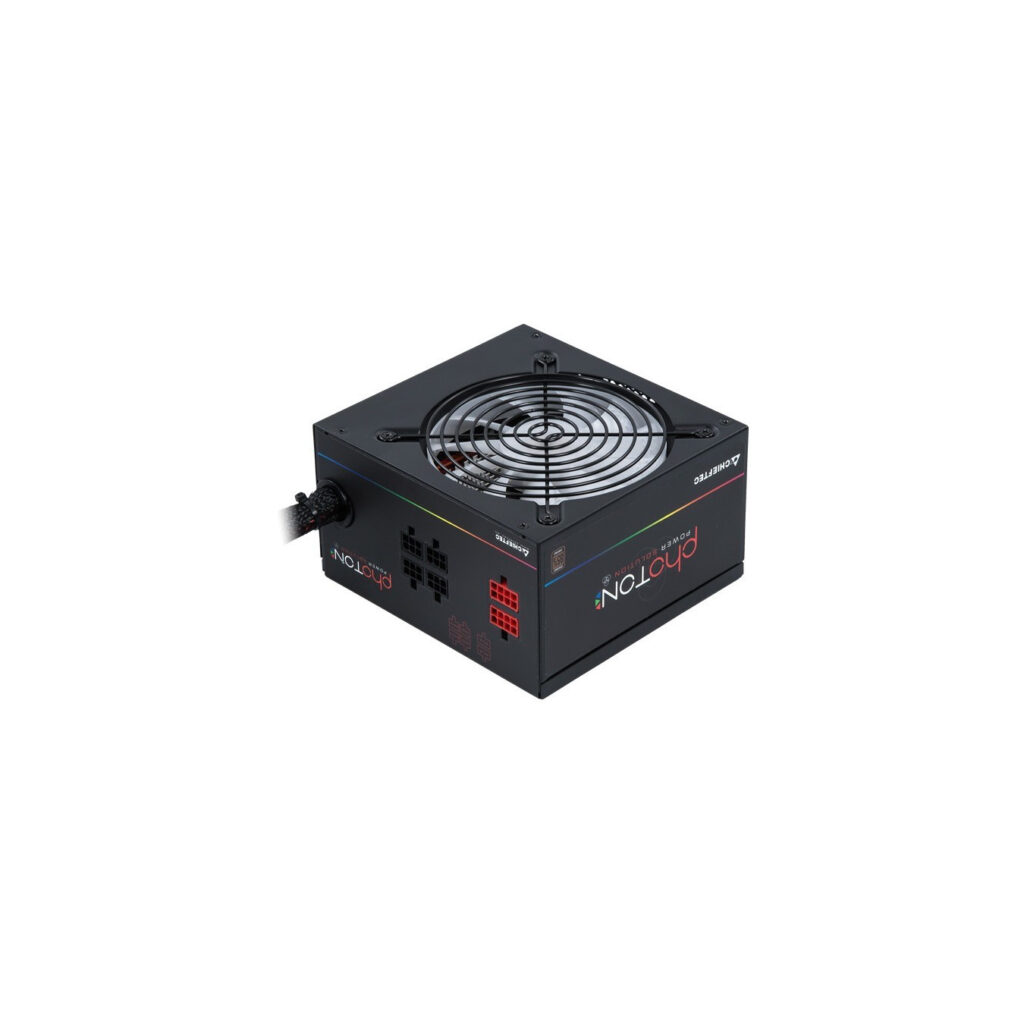

Chieftec Photon CTG-650C-RGB - 650W Semi-Modular PSU, RGB Illumination, Black
650W semi-modular PSU with RGB (Blue/Green/Red), 120mm fan, 6x SATA, 4x PCIe (6+2), 230V/50Hz, multiple protections, ~85% efficiency.
Available in 6–10 business days : 12 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Chieftec Photon. Total power: 650 W. AC input voltage: 230 V. AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX. SATA power cable length: 150.450 mm. Peripheral (Molex) power cable length: 150.450 mm. Purpose: PC. Power supply unit (PSU) form factor: PS/2. Supported motherboard form factors: ATX. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 87 mm
| Total power | 650 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 26 A |
| Max output current (+12V2) | 26 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over voltage. Overload. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| SATA power cable length | 150.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150.450 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 55 cm |
| Feature | Illumination |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 2 |

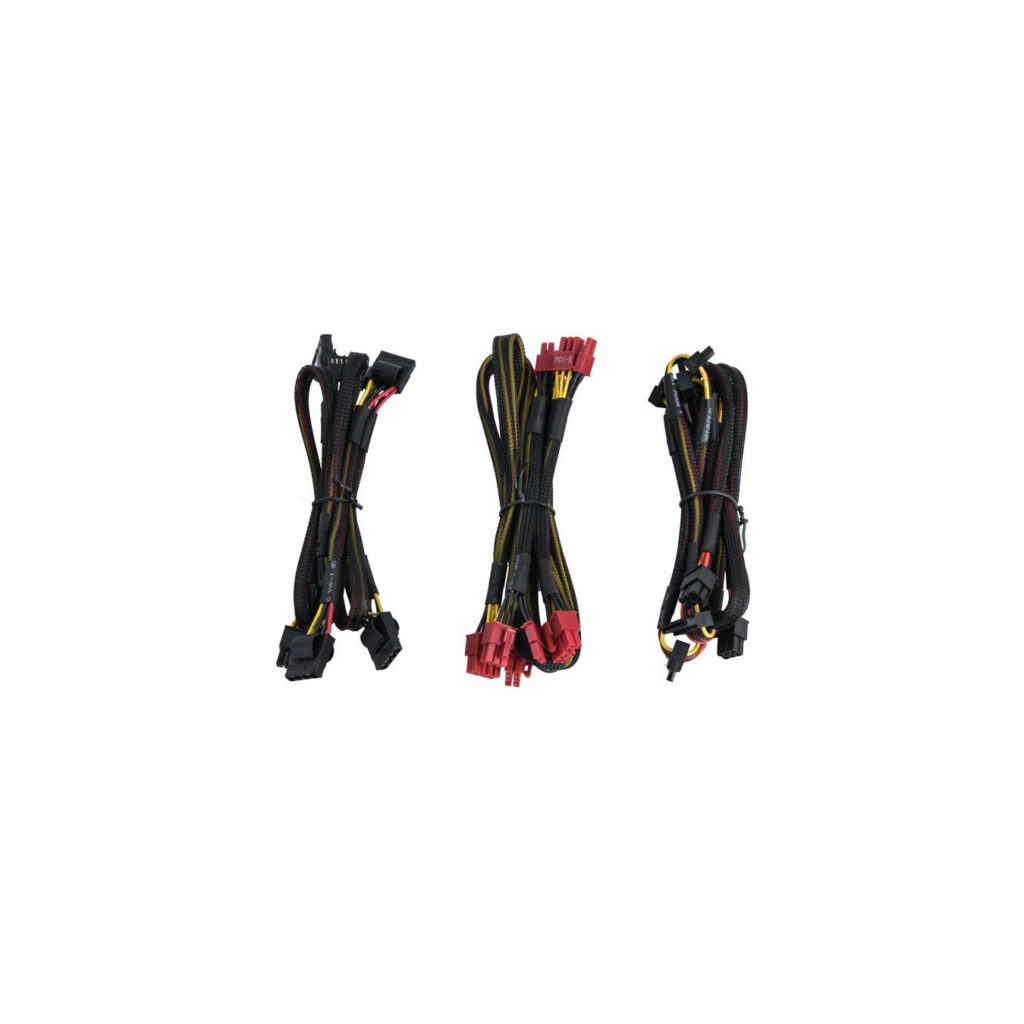

| Cabling type | Semi-Modular |
| Supported motherboard form factors | ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 2.14 kg |
| Harmonized System (HS) code | 84733020 |
| Illumination colour | Blue. Green. Red |
