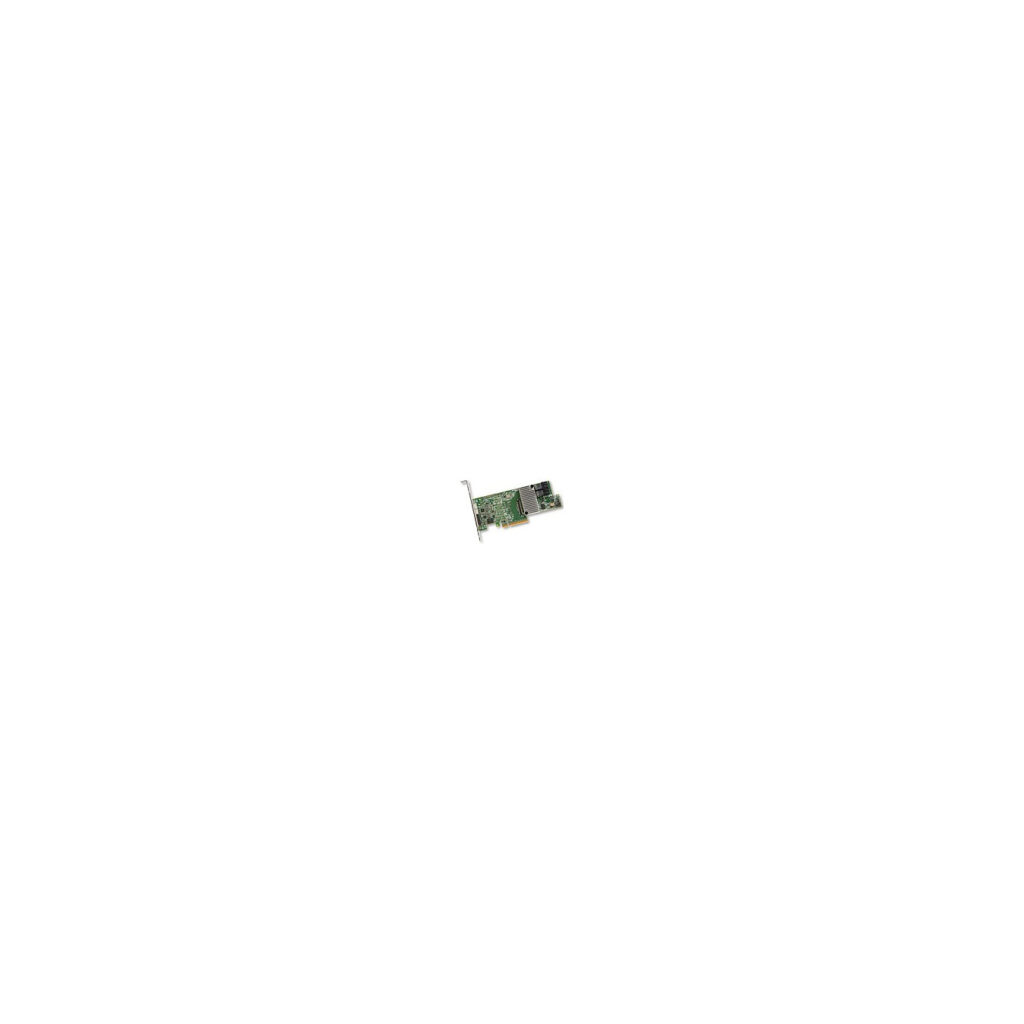

Broadcom MegaRAID SAS 9361-8i 8-Port 12Gb/s PCIe 3.0 x8 RAID
483.00 €
Broadcom MegaRAID SAS 9361-8i is a high-performance 12Gb/s PCIe 3.0 x8 RAID controller with 8 internal SAS/SATA ports (2x SFF-8643), 1GB DDR3 cache, dual-core 1.2GHz processor. Supports RAID 0,1,5,6,10,50,60 for up to 240 devices.
Available in 6–10 business days : 77 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Broadcom MegaRAID SAS 9361-8i is a premier 12Gb/s SAS/SATA RAID controller designed for enterprise servers and storage systems. Featuring PCIe 3.0 x8 host interface, it delivers exceptional performance with eight internal ports via 2x mini-SAS SFF-8643 connectors, supporting up to 128 SAS/SATA drives and expandability to 240 devices.
Equipped with 1GB 1866MHz DDR3 cache and dual 1.2GHz PowerPC cores on the LSISAS3108 ROC, it supports RAID levels 0, 1, 5, 6, 10, 50, 60 for balanced protection and speed. Low-profile MD2 form factor (6.6″ x 2.536″) fits rack servers; optional CacheVault for power-loss protection. Backward compatible with 6Gb/s and 3Gb/s drives.
- ✅ 12Gb/s data transfer per port
- ✅ Low-profile PCIe card
- ✅ Internal SAS/SATA only
- ✅ MTBF: 1,343,187 hours
- ✅ Operating temp: 10-55°C
| Supported Storage Interfaces | SAS, SATA |
| Host Interface | PCI Express 3.0 x8 |
| Internal SAS Ports | 8 |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Data Transfer Rate | 12 Gbit/s |
| Cache Memory | 1024 MB |
| Cache Type | DDR3 |
| Memory Clock Speed | 1866 MHz |
| Supported Devices | 240 |
| MTBF | 1343187 h |
| Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3, FCC Class A/B, UL, CSA, VCCI, BSMI, C-tick |
| Operating Temperature | 10 - 55 °C |
| Storage Temperature | -45 - 105 °C |
| Operating Humidity | 20 - 80% |
| Storage Humidity | 5 - 95% |
| Form Factor | Low Profile MD2 (6.6in x 2.536in) |
| Processor | Dual-core 1.2GHz PowerPC RSYS476 (LSI SAS3108 ROC) |
| Connectors | 2 x mini-SAS SFF-8643 (internal) |
| HS Code | 84733080 |
