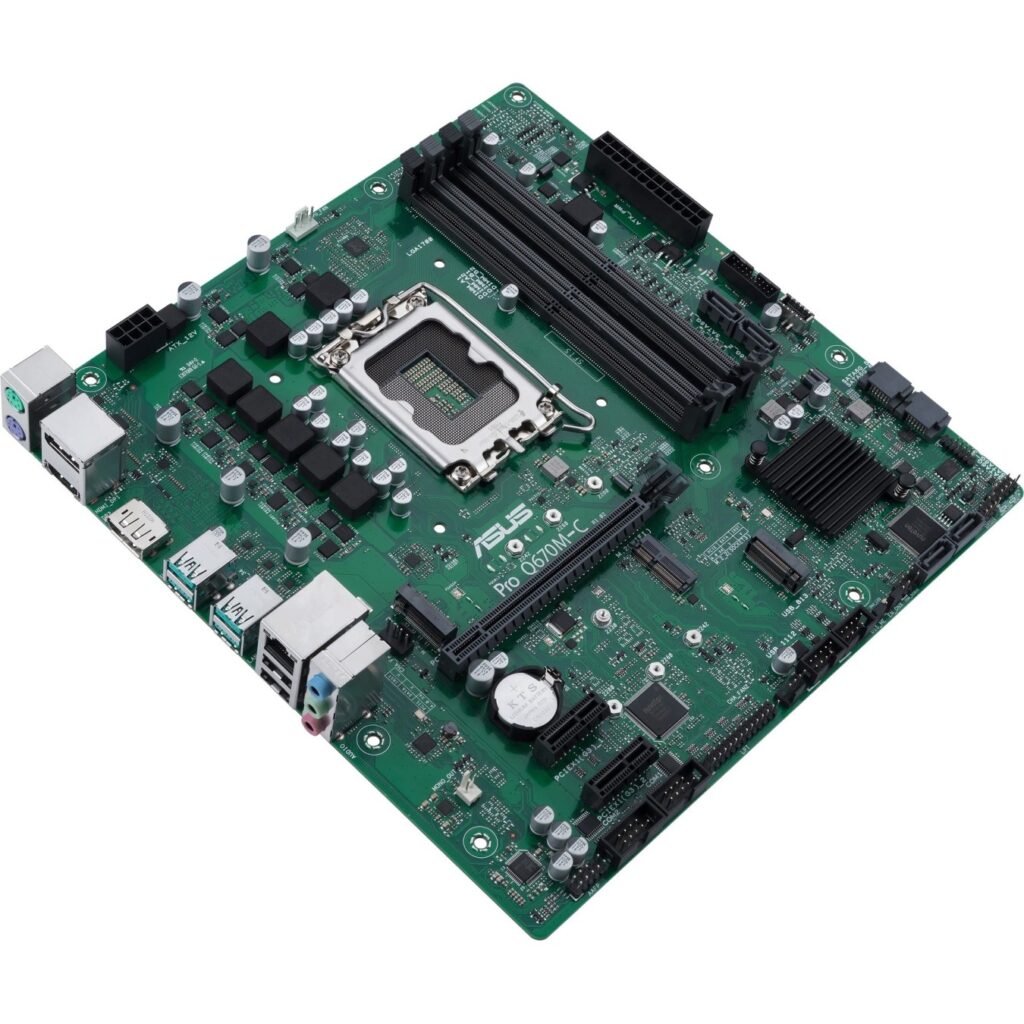

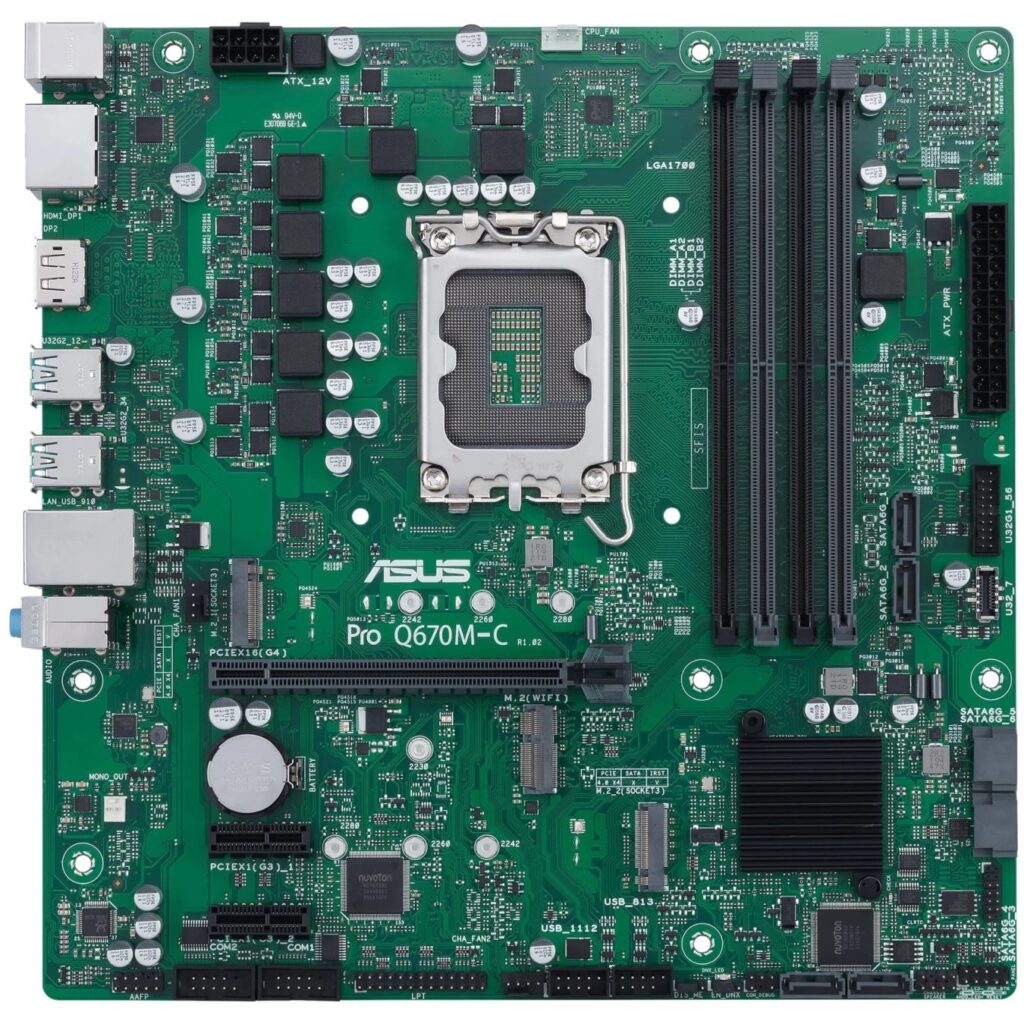

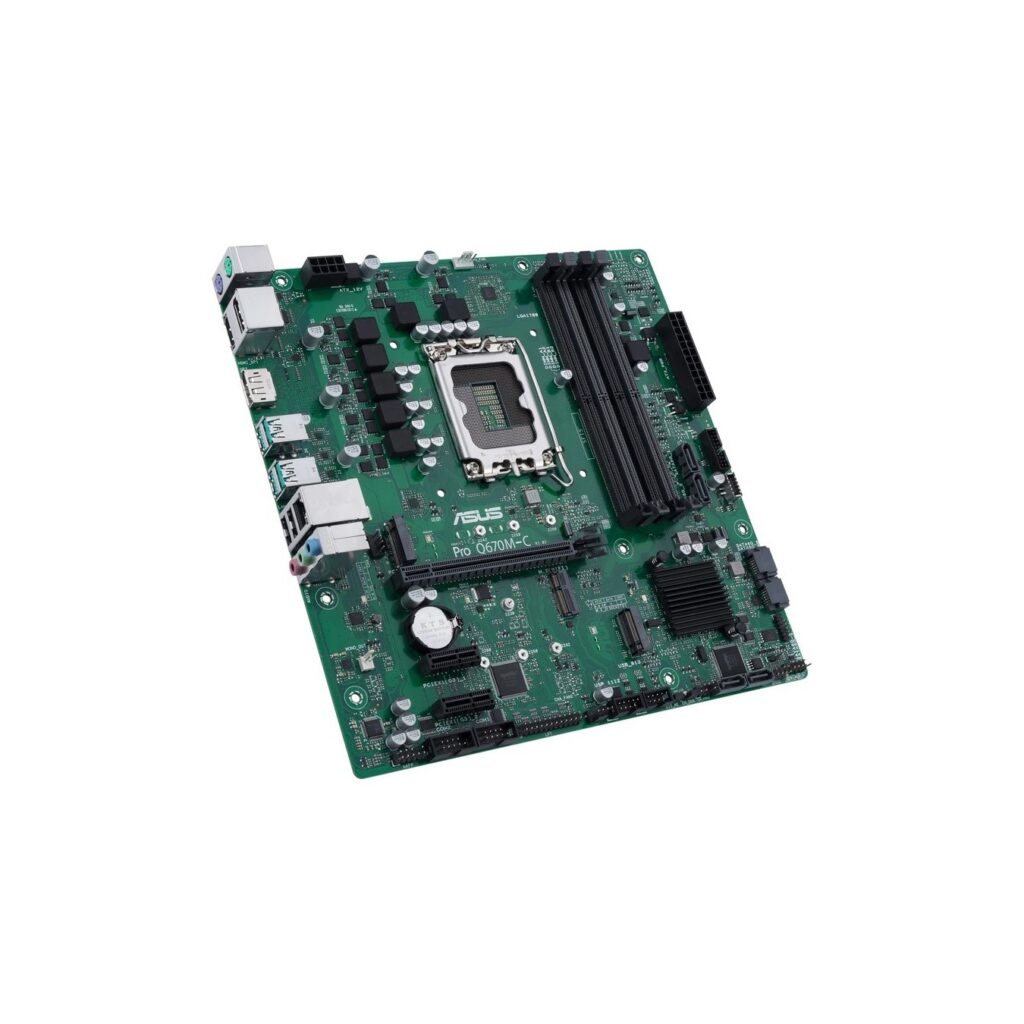

ASUS PRO Q670M-C-CSM LGA1700 Micro-ATX Intel Q670 Motherboard
Intel LGA1700 Micro-ATX ASUS PRO Q670M-C-CSM motherboard. Supports 12th/13th/14th Gen CPUs, DDR5 up to 192GB, PCIe 4.0, 2x M.2 NVMe, 6x SATA, 2.5Gb LAN for business.
Available in 6–10 business days : 9 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASUS PRO Q670M-C-CSM is a commercial-grade Micro-ATX motherboard designed for reliable business and enterprise use. It features the Intel LGA1700 socket, supporting 12th, 13th, and 14th Gen Intel Core processors, Pentium Gold, and Celeron CPUs. Built on the Intel Q670 chipset, it delivers robust performance with PCIe 4.0 support for graphics and storage.
Memory configuration includes 4x DDR5 DIMM slots with dual-channel architecture, supporting up to 192GB non-ECC un-buffered memory and Intel XMP profiles. Storage options are versatile: 2x M.2 slots (PCIe 4.0 x4), 6x SATA 6Gb/s ports, with Intel RST RAID support (0/1/5/10). Connectivity features 2.5Gb Ethernet with ASUS LANGuard, multiple USB ports including USB 3.2 Gen 2, front Type-C header, HDMI, 2x DisplayPort, and legacy COM/LPT headers for industrial applications.
ASUS CSM enhancements include Reliant reliability testing, Management Suite, and serviceability features like Q-LED diagnostics and COM Debug header. Ideal for stable, long-term deployments.
- CPU: LGA1700 (12th-14th Gen Intel)
- Chipset: Intel Q670
- Memory: 4x DDR5, max 192GB
- Storage: 2x M.2 PCIe 4.0, 6x SATA
- Expansion: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- Networking: 2.5Gb Ethernet
| CPU Socket | LGA1700 (12th/13th/14th Gen Intel Core, Pentium Gold, Celeron) |
| Chipset | Intel Q670 |
| Form Factor | Micro-ATX (24.4 x 24.4 cm) |
| Memory Slots | 4 x DIMM |
| Memory Type | DDR5 Non-ECC, Un-buffered |
| Max Memory | 192 GB |
| Memory Profiles | Intel XMP |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| M.2 Slots | 2 x M.2 (PCIe 4.0 x4, SATA) |
| SATA Ports | 6 x SATA 6Gb/s |
| RAID Support | Intel RST (NVMe/SATA RAID 0/1/5/10) |
| USB Ports (Rear) | 4 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 |
| USB Headers | 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Video Outputs | 1 x HDMI, 2 x DisplayPort |
| LAN | 2.5Gb Ethernet (ASUS LANGuard) |
| Audio | 7.1 Channel |
| Other | 2 x COM headers, LPT, TPM onboard, Intel Optane ready |
