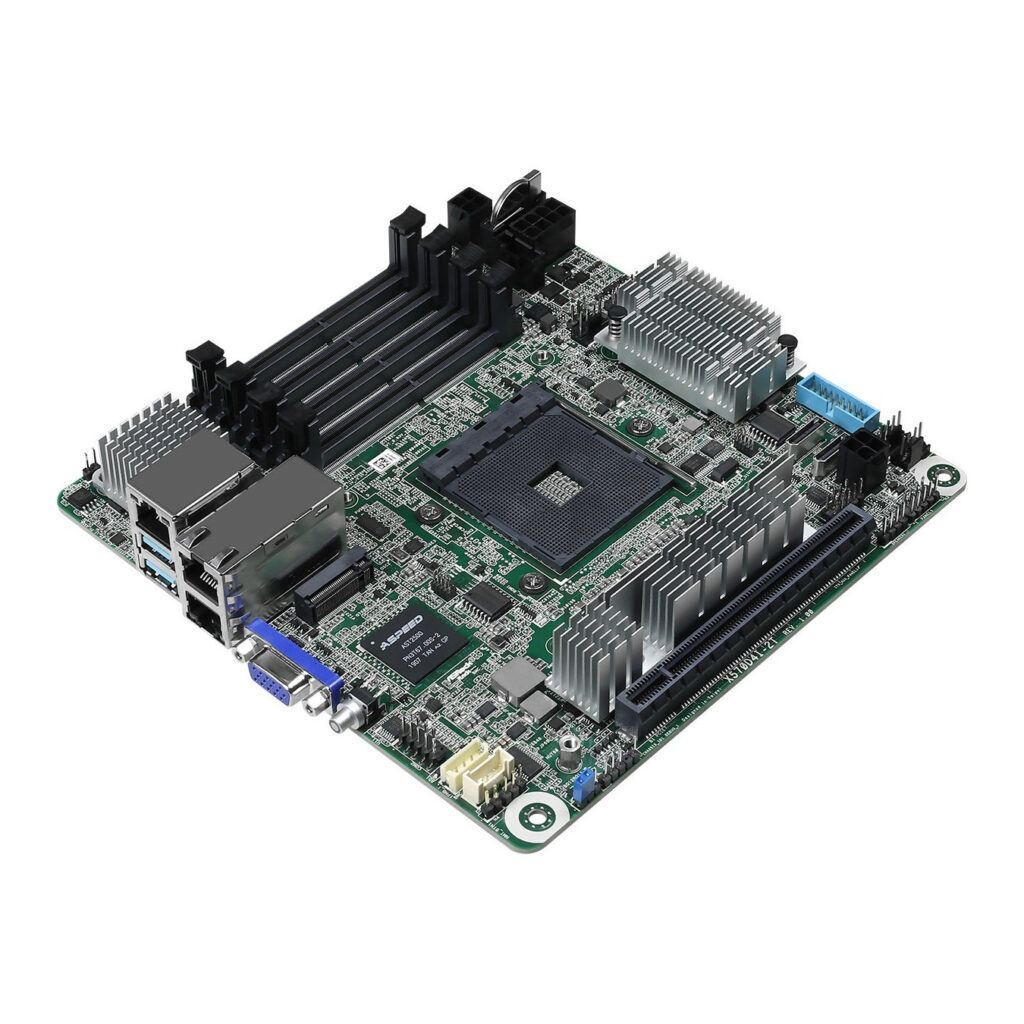

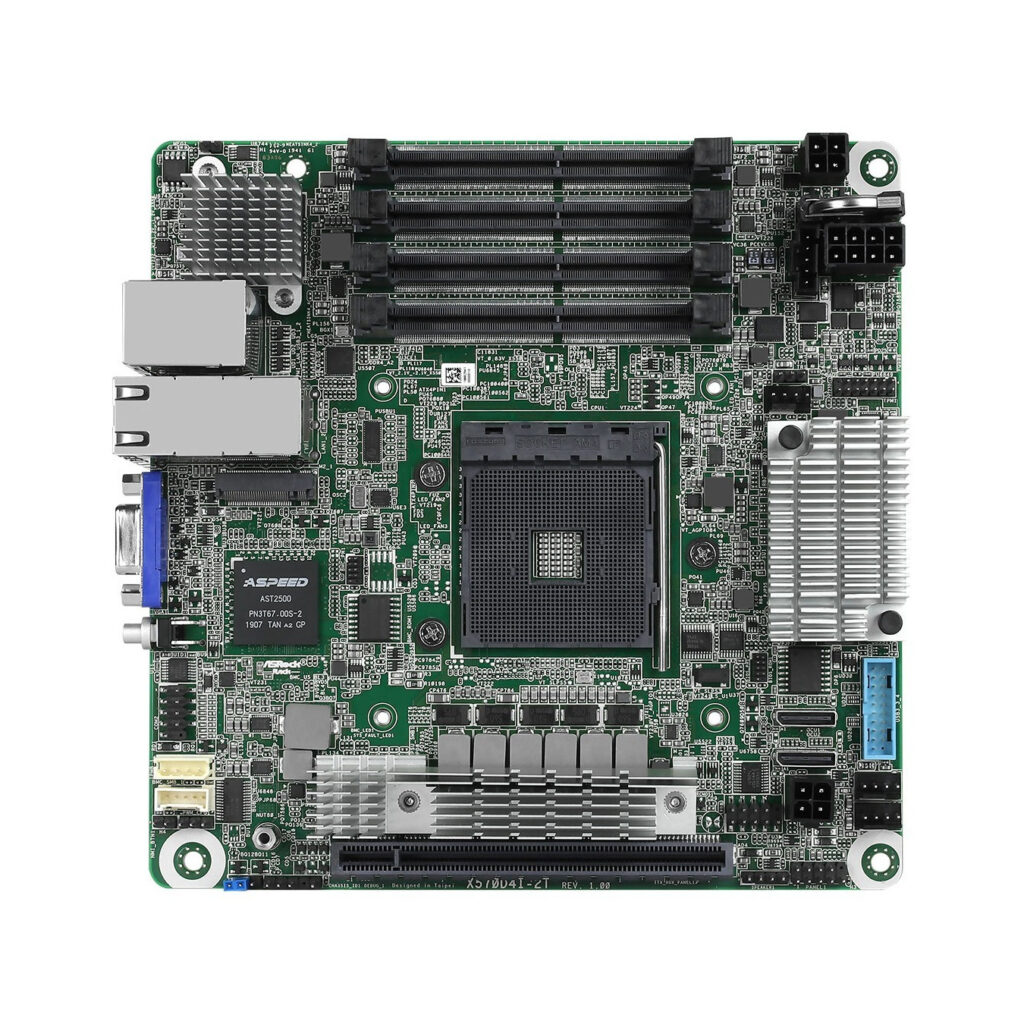

ASRock X570D4I-2T - Mini-ITX AM4 Motherboard, X570 Chipset, 4x SO-DIMM DDR4 (64GB), Dual 10Gb LAN, PCIe 4.0
Mini-ITX X570 AM4 board for AMD Ryzen 3000; 4x SO-DIMM DDR4 (up to 64GB), PCIe 4.0 x16, 1x M.2, 8x SATA III, dual 10Gb LAN, USB 3.2 Gen2 ports.
Available in 6–10 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock X570D4I-2T. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: SO-DIMM. Supported storage drive interfaces: Serial ATA III. SATA III. Graphics card family: ASPEED. Graphics card: AST2500. On-board graphics card model: Aspeed AST2500. Ethernet interface type: 10 Gigabit Ethernet. LAN controller: Intel® X550-AT2. Realtek RTL8211E
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2933 MHz |
| Maximum internal memory | 64 GB |
| Supported storage drive interfaces | Serial ATA III. SATA III |
| Parallel processing technology support | Not supported |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 16 MB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Feature | Wake-on-LAN ready |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550-AT2. Realtek RTL8211E |
| Motherboard chipset | AMD X570 |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Harmonized System (HS) code | 84733020 |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Height | 285 mm |
| Weight | 760 g |
| Number of DIMM slots | 4 |
| Number of processors supported | 1 |
