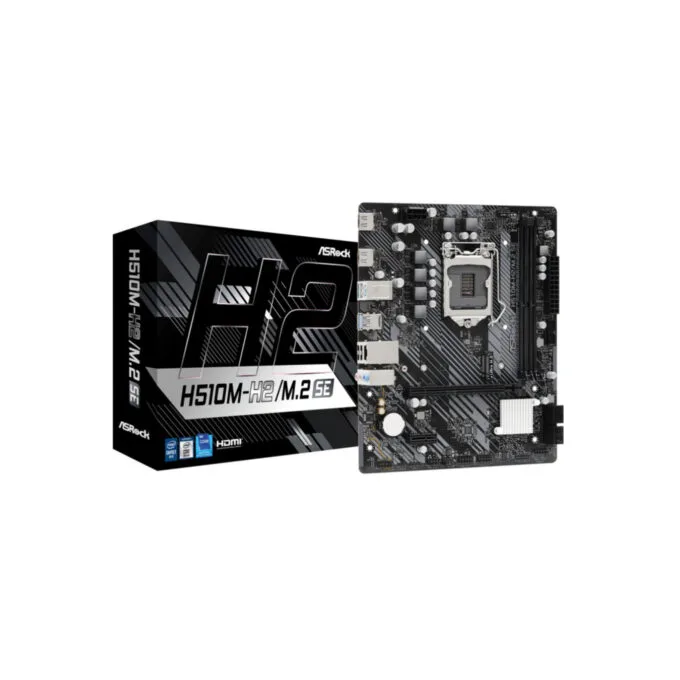

ASRock H510M-H2/M.2 SE LGA1200 Micro-ATX Motherboard - 64GB DDR4
72.50 €
LGA1200 Micro-ATX motherboard with Intel H510 chipset. Features Ultra M.2 PCIe Gen3x4 (32Gb/s), dual HDMI 4K@60Hz, DDR4 up to 64GB/3200MHz, 4x SATA3, Realtek Gigabit LAN & ALC897 audio. (187 chars)
Το προϊόν δεν είναι διαθέσιμο
Αυτό το προϊόν δεν είναι διαθέσιμο αυτή τη στιγμή. Μπορούμε να σας προτείνουμε εναλλακτικές ή να προσπαθήσουμε να το βρούμε για εσάς. Καλέστε μας στο 22 270068 ή email [email protected].
The ASRock H510M-H2/M.2 SE is a Micro-ATX motherboard supporting 10th/11th Gen Intel Core processors (LGA1200). It features a 4-phase power design, dual-channel DDR4 memory up to 64GB at 3200MHz, and Intel H510 chipset for reliable performance in compact builds.
Key highlights include Ultra M.2 PCIe Gen3 x4 slot with 32Gb/s speeds (also supports SATA3), dual HDMI ports supporting 4K@60Hz for smooth multi-monitor setups, and comprehensive connectivity: 4x SATA3, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 6x USB 3.2 Gen1, Realtek Gigabit LAN, and 7.1-channel HD audio via ALC897 codec. Additional features like water pump header (2A), Full Spike Protection, and Auto Driver Installer simplify setup and enhance durability.
Ideal for budget gaming or office PCs with water cooling support and easy BIOS updates via ASRock Live Update & APP Shop.
- Supports 10th/11th Gen Intel Core i9/i7/i5/i3 (LGA1200)
- 2x DDR4 DIMM slots, max 64GB 3200+(OC)MHz
- Graphics: 2x HDMI 4K@60Hz
- Storage: 1x M.2 (PCIe Gen3x4), 4x SATA3
- Expansion: 1x PCIe4.0 x16, 1x PCIe3.0 x1
- USB: 4x Rear 3.2 Gen1, 2x Rear 2.0, headers for more
- Networking: Realtek RTL8111H Gigabit LAN
- Audio: Realtek ALC897 7.1 CH HD
- Dimensions: 231 x 187 mm
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel Core i9, i7, i5, i3 (10th/11th Gen) |
| Motherboard chipset | Intel H510 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3200 MHz |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Wi-Fi | No |
| Width | 231 mm |
| Depth | 187 mm |
| Power Phase Design | 4 Power Phase |
| BIOS type | UEFI AMI |
