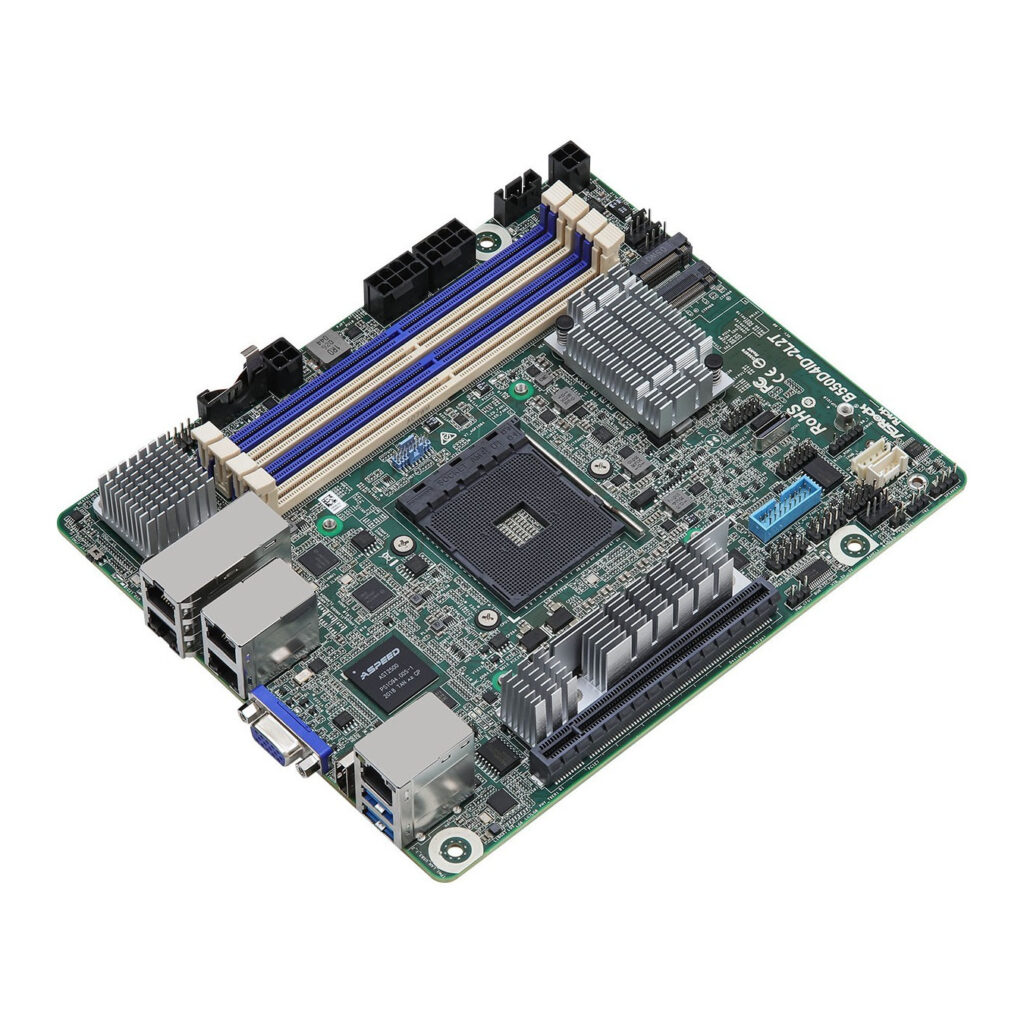

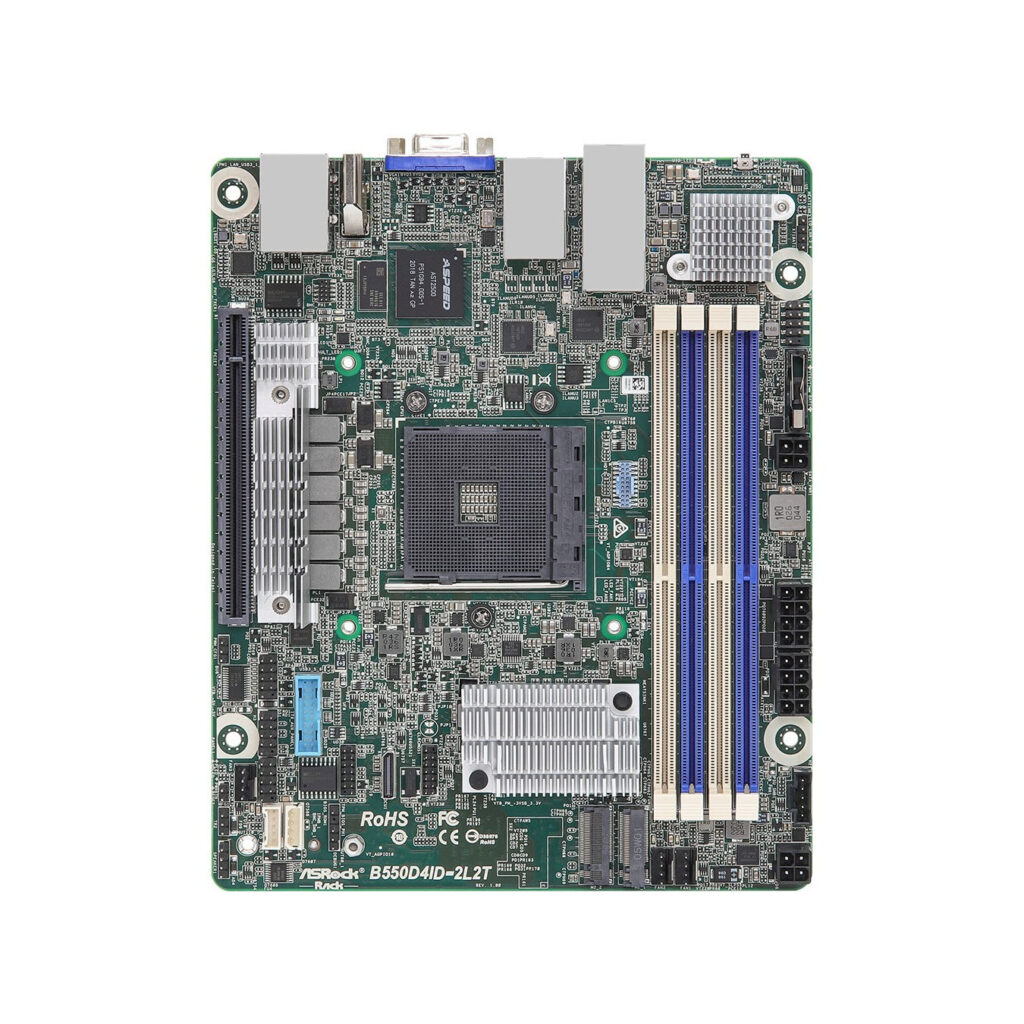

ASRock B550D4ID-2L2T - Mini-ITX AM4 Motherboard, B550 Chipset, 4x DDR4 up to 128GB, PCIe 4.0, Quad LAN, Passive Cooling - Green
ASRock B550D4ID-2L2T mini-ITX AM4 motherboard (B550). Supports Ryzen 3/5, 4x DDR4 DIMM up to 128GB (3200MHz), PCIe 4.0 x16, 1x M.2, 4x SATA III, 4x LAN.
Available in 6–10 business days : 7 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Asrock B550D4ID-2L2T. Processor manufacturer: AMD. Processor socket: Socket AM4. Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0. PCI Express 4.0. SATA. RAID levels: 0. 1. 10. Graphics card family: ASPEED. Graphics card: AST2500. Ethernet interface type: 10 Gigabit Ethernet. Gigabit Ethernet. LAN controller: Intel I210. Intel X710-AT2
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3. AMD Ryzen™ 5 |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | PCI Express 3.0. PCI Express 4.0. SATA |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 10 |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |

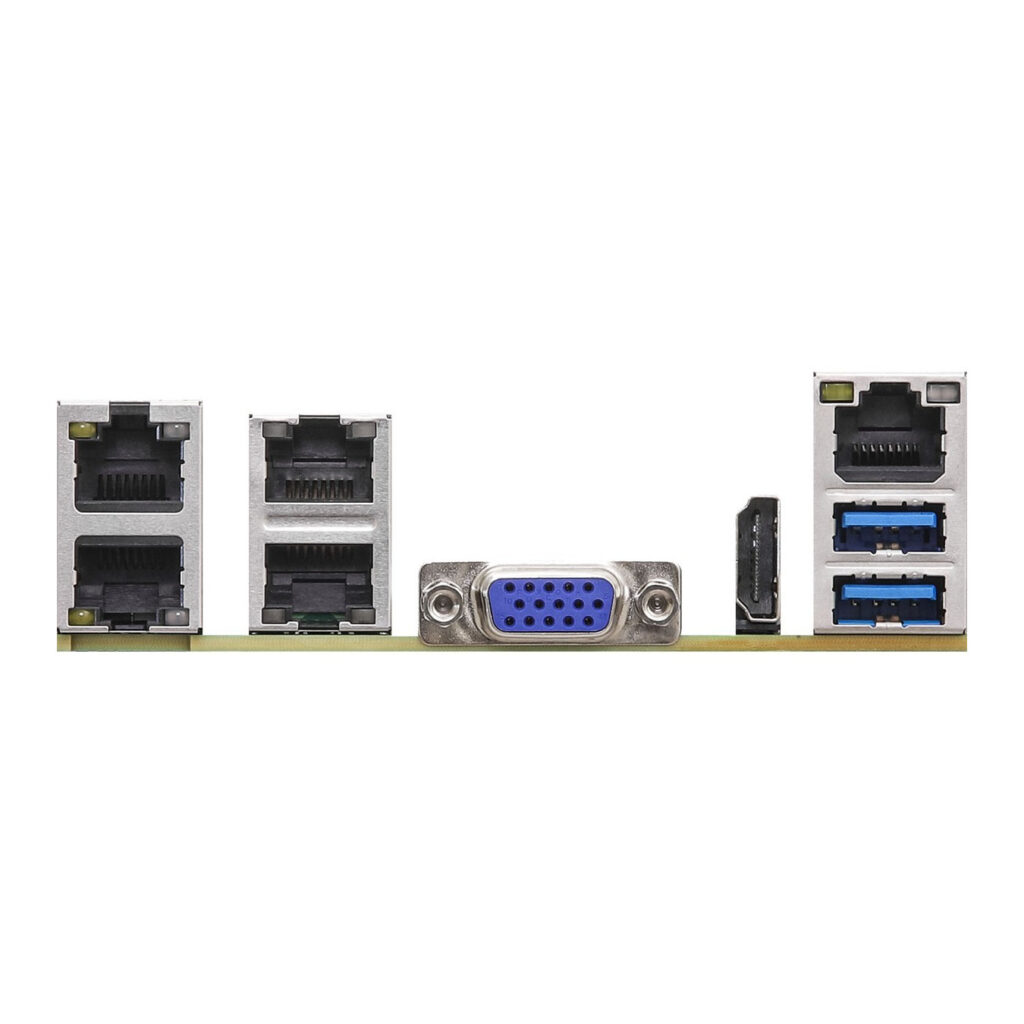

| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet. Gigabit Ethernet |
| LAN controller | Intel I210. Intel X710-AT2 |
| Motherboard chipset | AMD B550 |
| Product colour | Green |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX. DC |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express OCuLink connectors (NVMe support) | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| Operating temperature (T-T) | 10 - 35 °C |
| Width | 170.2 mm |
| Depth | 208028 mm |
