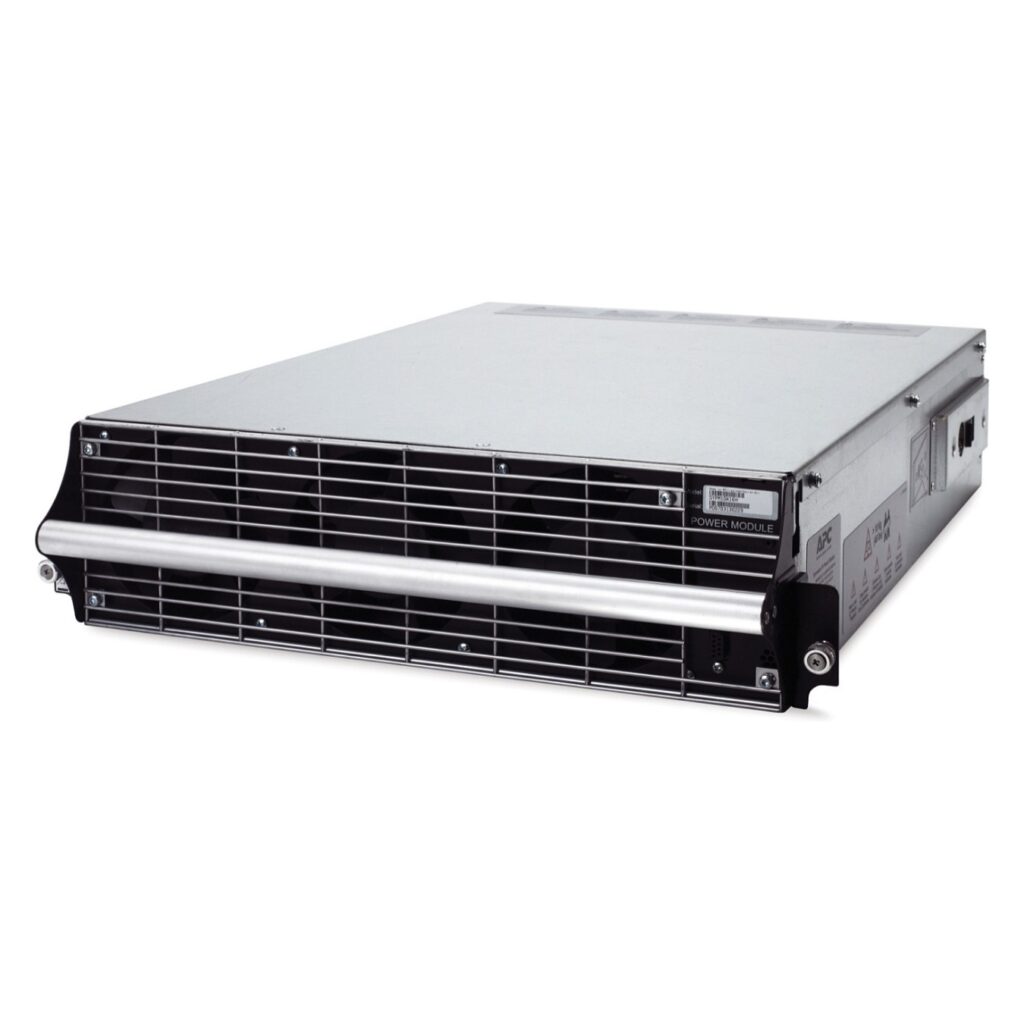

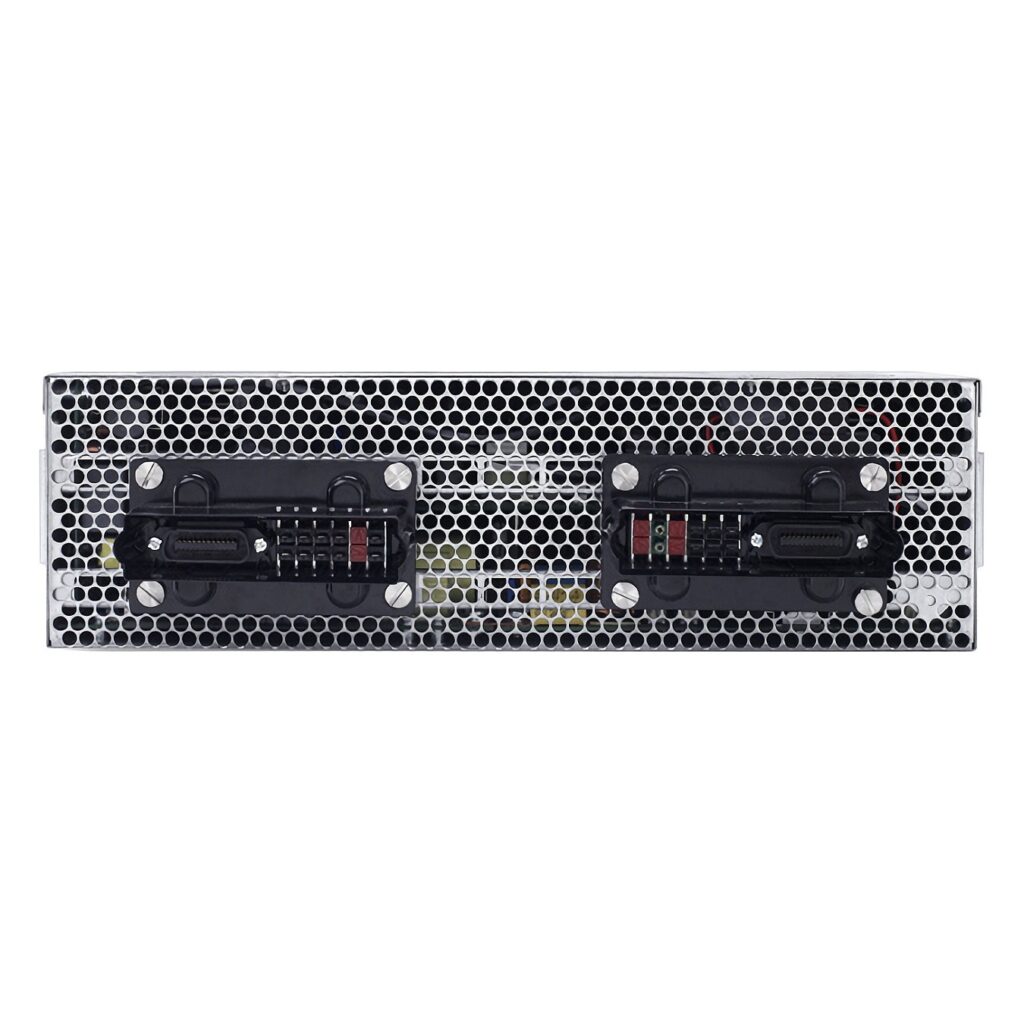

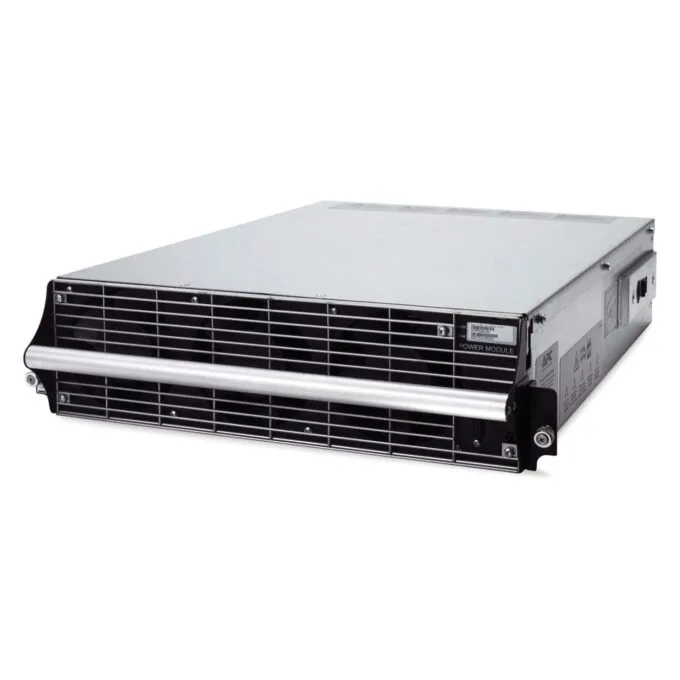

APC Symmetra PX Power Module UPS plug-in module AC 400V 16 kW 16000VA 3-phase no battery output connectors 1 3U
APC Symmetra PX Stromversorgungsmodul, 10/16 kW, 400 V, Leistungsmodul, Schwarz, Grau, 63 dB, 16000 VA, 16000 W, 400 V
Available in 6–10 business days : 1 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
APC Symmetra PX Stromversorgungsmodul, 10/16 kW, 400 V. Produkttyp: Leistungsmodul, Produktfarbe: Schwarz, Grau, Geräuschpegel: 63 dB. Ladekapazität: 16000 VA, Kapazität: 16000 W, Eingangsspannung: 400 V. Zertifizierung: CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111. Breite: 483 mm, Tiefe: 70 mm, Höhe: 132 mm. Verpackungsbreite: 700 mm, Verpackungstiefe: 595 mm, Verpackungshöhe: 225 mm
| Produkttyp | Leistungsmodul |
| Produktfarbe | Schwarz, Grau |
| Geräuschpegel | 63 dB |
| Ladekapazität | 16000 VA |
| Kapazität | 16000 W |
| Eingangsspannung | 400 V |
| Eingangsfrequenz | 40/70 Hz |
| Ausgangsspannung | 400 V |
| Anzahl der Phasen | 3 |
| Maximale Gesamtstromaufnahme pro Phase | 33 A |
| Ausgangskapazität | 16 kVA |
| Zertifizierung | CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111 |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -15 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Höhe bei Betrieb | 0 - 1015 m |
| Höhe bei Lagerung | 0 - 4572 m |
| Breite | 483 mm |
| Tiefe | 70 mm |
| Höhe | 132 mm |
| Gewicht | 28,5 kg |
| Verpackungsbreite | 700 mm |
| Verpackungstiefe | 595 mm |
| Verpackungshöhe | 225 mm |
| Paketgewicht | 59,5 kg |
| Exportkontroll-Klassifizierungsnummer (ECCN) | EAR99 |
| Warentarifnummer (HS) | 85079080 |
