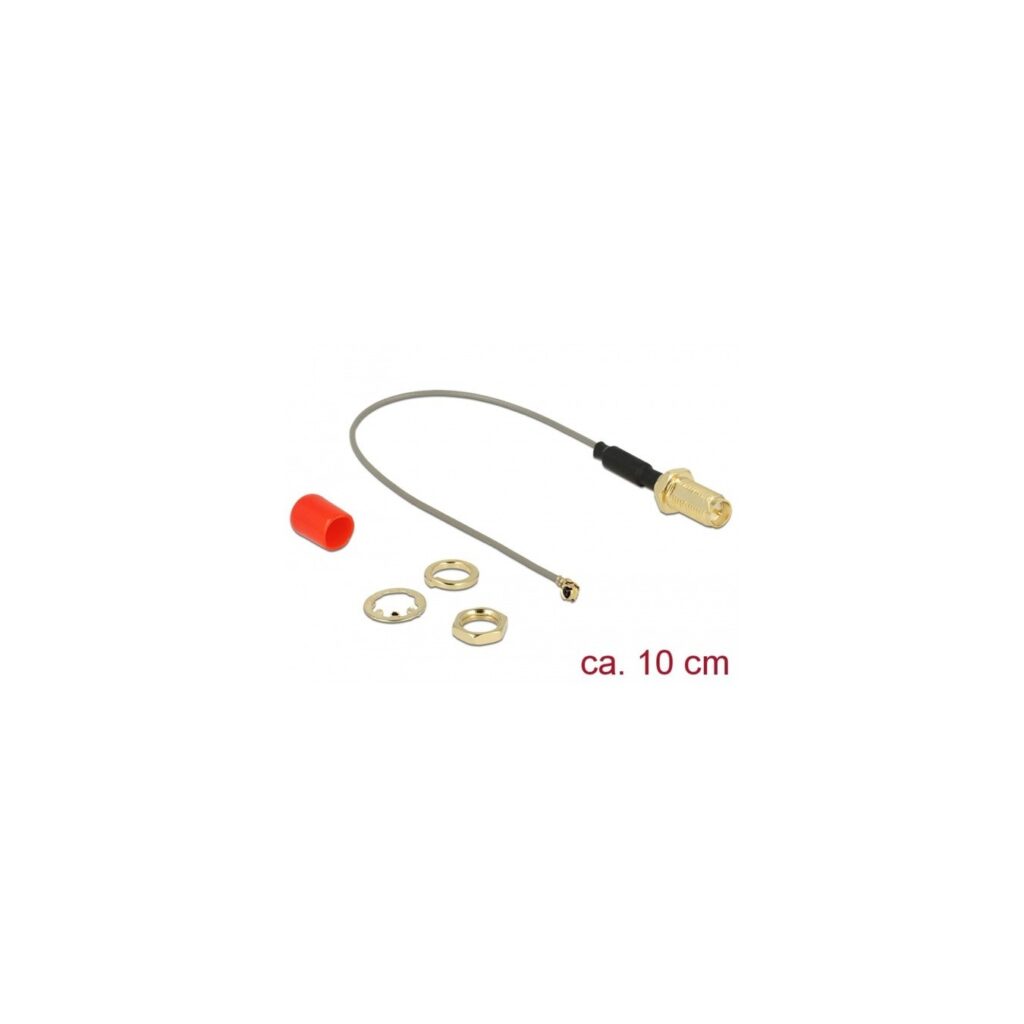

Antenna Cable RP-SMA (socket for installation) to MHF (plug) - Adapter
12.50 €
Delock 89830 antenna cable for connecting WLAN antennas and high-frequency components.
Available in 6–10 business days : 300 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 89830 antenna cable from Delock is suitable for connecting high-frequency technology components.
| Typ | Adapter |
| Color | grau/gold |
| EAN | 4043619898305 |
| Manufacturer no. | 89830 |
| Application example | For connecting WLAN antennas |
| Area | network |
| Connection - from | 1x RP-SMA (socket) |
| taps | 2 |
| Characteristics | intern |
| More information | Thread length 10mm, impedance 50 Ohm, cable type 1.13, 1x ferrite core, cable attenuation 3.2dB @ 2.4 GHz per meter, cable diameter approx. 1.13mm |
| Notice | U.FL-LP-068 (Hirose) compatible |
| Accessories - available | Circlip, nut, toothed washer |
| Cable length | 10 cm |
