5.25" Removable Frame - for 8 x M.2 NVMe SSD with Slim SAS SFF-8654
654.50 €
Delock 5.25″ solid metal removable frame fits 5.25″ bays in PC/IPC/server and supports up to 8 M.2 NVMe SSDs via 8x SFF-8654.
Available in 6–10 business days : 10 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
This solid metal removable frame from Delock is suitable for installation in a 5.25″ bay of a PC, IPC or server case and enables the operation of up to 8 M.2 NVMe SSDs. To ensure maximum speed on each port, each slot has its own Slim SAS SFF-8654 port.
Item no.: 100060918
Warning:
Care must be taken to ensure that the tray is fully inserted, otherwise connection to the SSD cannot be established.
| Typ | Removable frame |
| EAN | 4043619471294 |
| Manufacturer no. | 47129 |
| Suitable for | M.2 module format 2280, 2260, 2242 and 2230 with Key M or Key B+M on PCIe basis |
| Material | M.2 metal slot |
| Installable drives | 8x M.2 |
| Connections - external | 8x SFF-8654 |
| Feature | 2x 4 pin power connector | 8 x LED display | 3 x fans | Bootable, from UEFI version 2.3.1 | M.2 metal slot | Supports NVM Express (NVMe) | Supports S.M.A.R.T. | Key lock |
| More information | Thanks to the special mechanism, the SSDs can be replaced quickly and easily. For example, B. Data backups can be removed and stored in a safe place. Maximum height of the components on the module: 1.5 mm, use of modules equipped on both sides possible |
| Notice | The removable frame has a key lock so that only authorized people can remove the hard drive. The sturdy metal support has springs on the top and bottom that absorb vibrations and therefore also support use in mobile devices. |

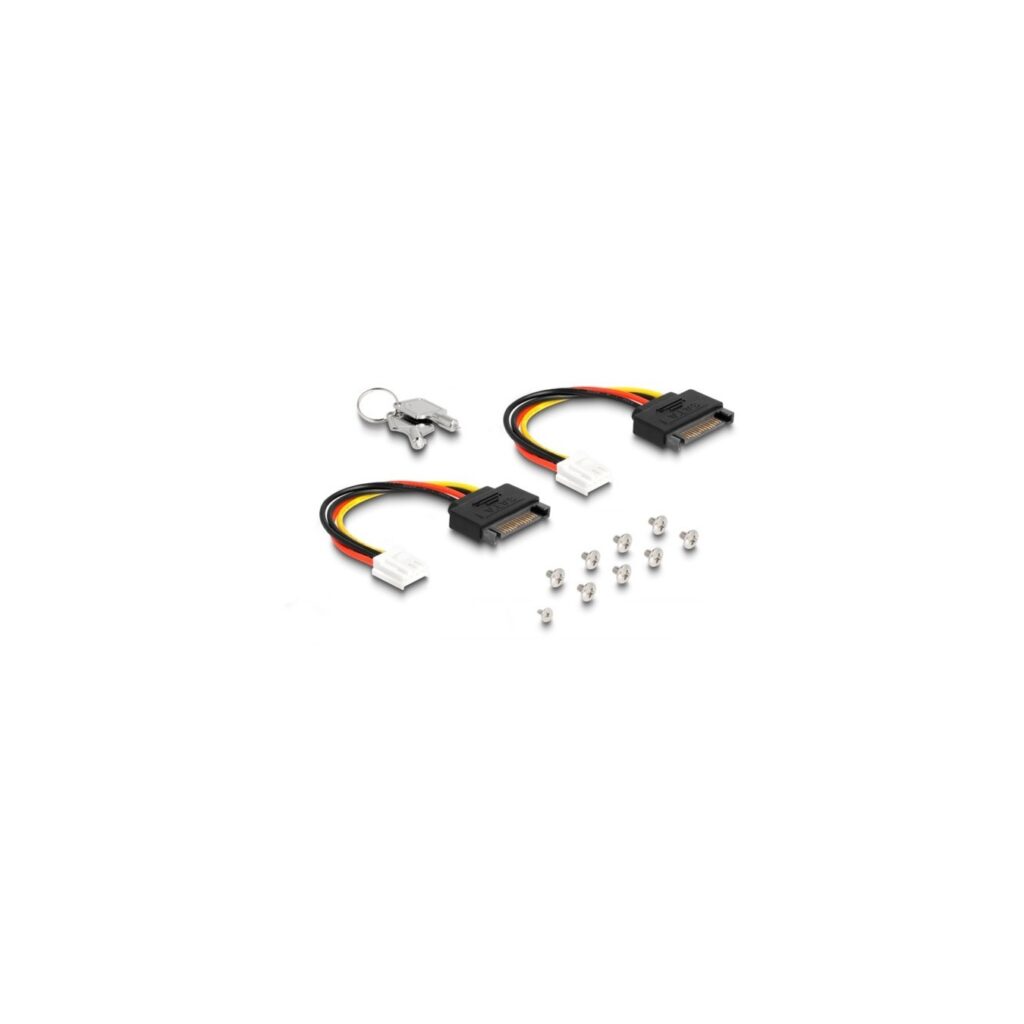

| Accessories - available | 2 x cable SATA 15 pin to 4 pin floppy socket, length approx. 12 cm, 2 x keys, 8 x screw IM 2.0 x 4.0 mm, head 5.0 mm, operating instructions |
| Dimensions | Width: 145mm x Height: 40mm x Depth/Length: 174mm |
