Network switch SWITCH D - LINK 24-Port 10/100 Unmanaged Desktop
  • Network switch SWITCH D - LINK 24-Port 10/100 Unmanaged Desktop
  • Network switch SWITCH D - LINK 24-Port 10/100 Unmanaged Desktop

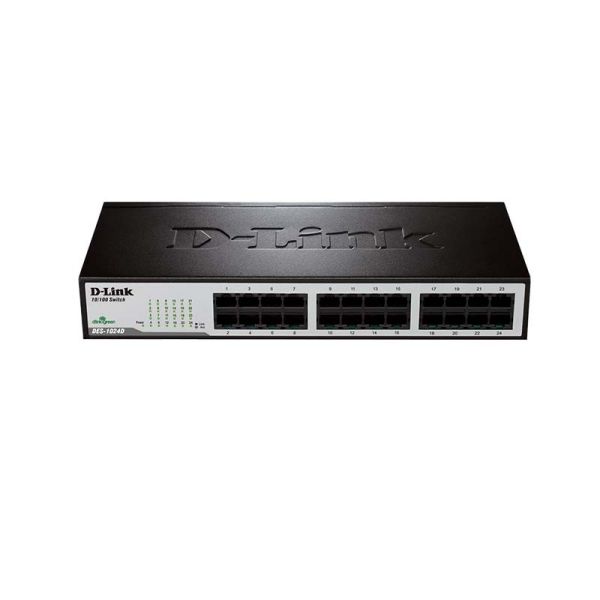

SWITCH D - LINK 24-Port 10/100 Unmanaged Desktop DES-1024D

SWI0026
€50.00
Quantity

Product: Switch

Type: Unmanaged

Specification: Full/half-duplex , Plug-and-play installation and Rackmount Kit including

Warranty: 2 years

  Secure payment

All payments on the site are securely encrypted and protected

  Delivery Time

We deliver products within 1- 4 days, all over Republic of Cyprus

  Money back

Money back warranty in short period

Specification

Switch 24-Port 10/100 Unmanaged Desktop DES-1024D

Key Features

  • Inexpensive Fast Ethernet solution for SOHO/SMB
  • Auto MDI/MDIX crossover for all ports
  • Store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Plug-and-play installation

Switching Fabric

  • 4.8 Gbps

Standards

  • IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay Auto-Negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az EEE function

Protocol

  • CSMA/CD

Data Transfer Rates

  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)

Number of Ports

  • 24 10/100Mbps Fast Ethernet ports

Topology

  • Star

Network Cables

  • 10BASE-T:
    • UTP CAT 3/4/5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports

LED Indicators

  • Per port:
    • Link/Activity
  • Per device:
    • Power

Transmission Method

  • Store-and-forward

MAC Address Table

  • 8K entries per device

MAC Address Learning

  • Automatic update

Packet Filtering /Forwarding Rates (half duplex)

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port

RAM Buffer

  • 256 Bytes (2M bits)

Power Input

  • 100~240 V AC 50/60 Hz internal universal power supply

Power Consumption

  • Power On (Standby):
    • DC input: 1.18 Watts
    • AC input: 2.09 Watts
  • Max.:
    • DC input: 2.72 Watts
    • AC input: 4.14 Watts

Heat Dissipation

  • Power On (Standby):
    • AC input: 7.13 BTU/h
  • Maximum:
    • AC input: 14.13 BTU/h

MTBF

  • 2,058,943 hours

Operating Temperature

  • 0 ˚ to 40 ˚C (32 ˚ to 104 ˚F)

Storage Temperature

  • -10 ˚ to 70 ˚C (14 ˚ to 158 ˚F)

Operating Humidity

  • 10% to 90% RH non-condensing

Storage Humidity

  • 5% to 90% RH non-condensing

Dimensions (W x D x H)

  • 280 x 125.8 x 44 mm (11.0 x 5.0 x 1.7 inches)

Specific References

Here you can add custom original content(text, images, videos and more) for each product page.

No customer reviews for the moment.
